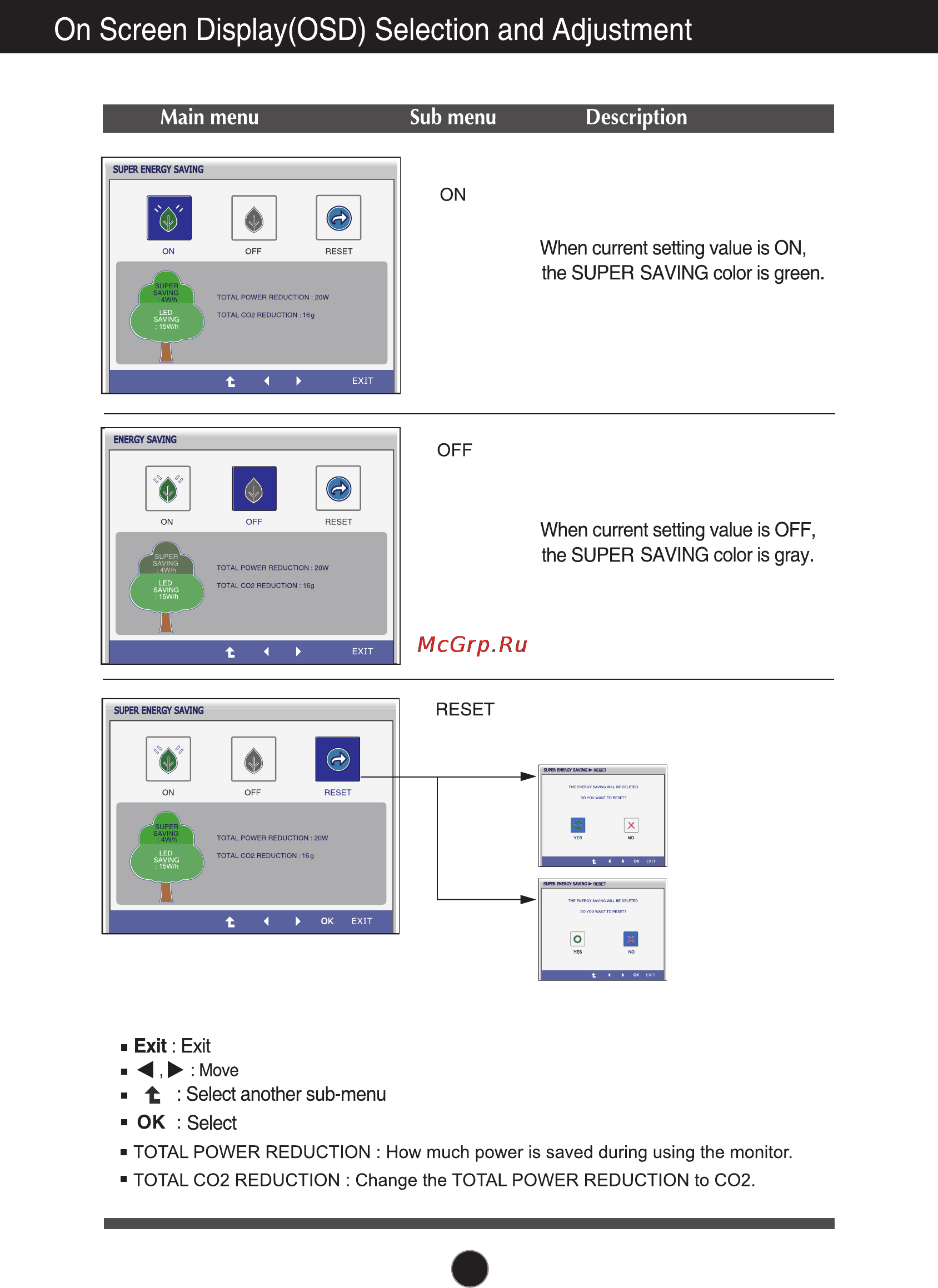

On Screen Display OSD Selection and Adjustment Mam menu Sub menu Description Turn on the SUPER ENERGY SAV ING function When current setting value is ON the SUPER SAVING color is green EWftCT SWING OFF Turn off the SUPER ENERGY SAV ING function Now the monitor is LED SAVING function When current setting value is OFF the SUPER SAVING color is gray RESET Clear the TOTAL POWER REDUC TION and TOTAL CO2 REDUCTION Exit Exit Move t Select another sub menu OK Select TOTAL POWER REDUCTION How much power is saved during using the monitor TOTAL CO2 REDUCTION Change the TOTAL POWER REDUCTION to CO2
