8

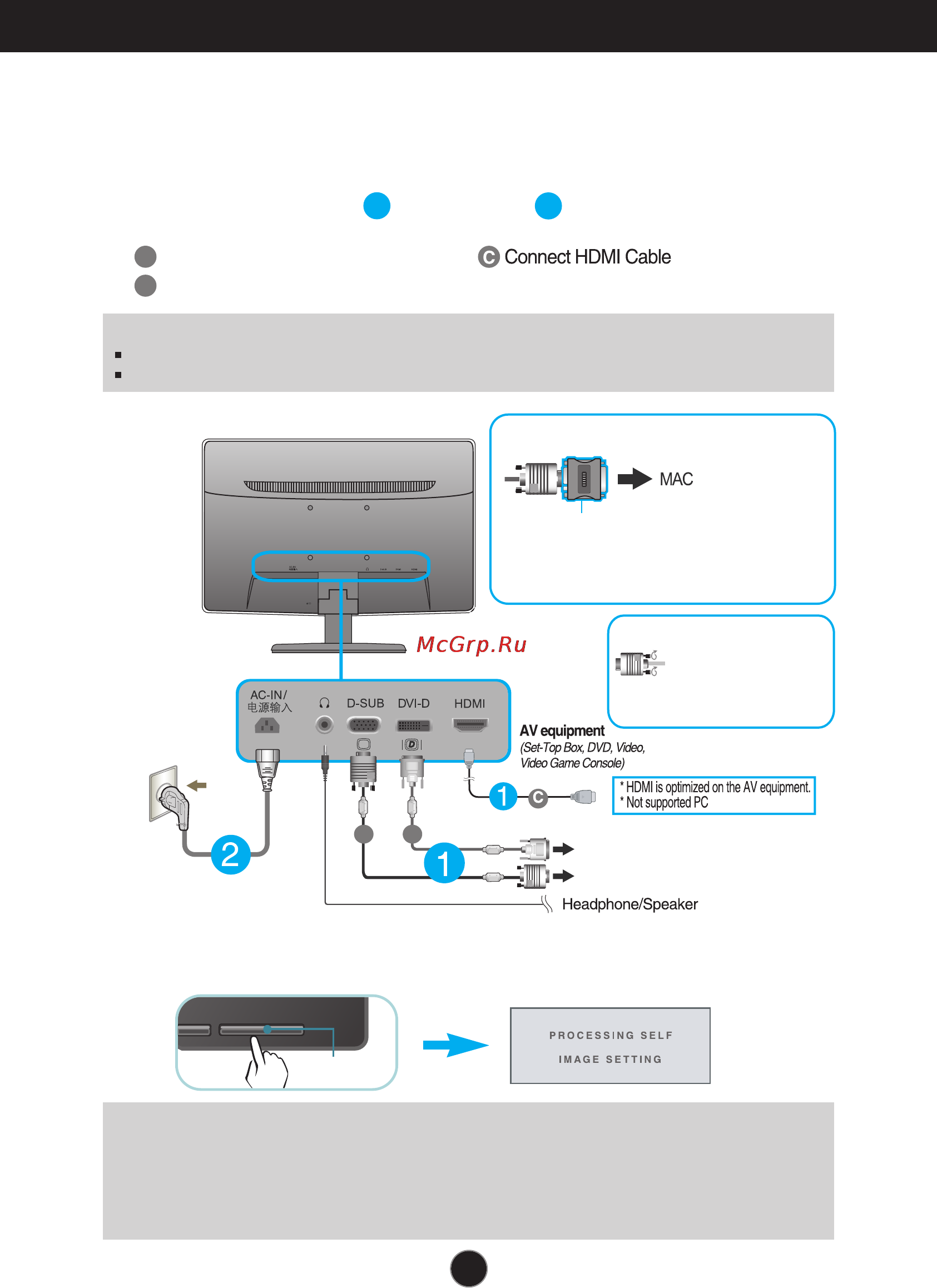

Connecting the Display
E2241V/E2341V/E2341VG/E2441V
NOTE
‘ Self Image Setting Function’? This function provides the user with optimal display
settings.When the user connects the monitor for the first time, this function automatically adjusts
the display to optimal settings for individual input signals.
‘AUTO’ Function? When you encounter problems such as blurry screen, blurred letters, screen
flicker or tilted screen while using the device or after changing screen resolution, press the
AUTO function button to improve resolution.
A
B
Conne
ct DVI-D(Digital signal) Cable
Connect D-sub(Analog signal) Cable
1.
B
efore setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
2
.
Connect signal
input cable and power cord in order, then tighten the screw
of the signal cable.
Conne
cting with the PC
1
2
PC
PC
A
B
Wall-outlet type
Mac adapter :F
or Apple Macintosh use, a
separate plug adapter is needed to change the
15 pin high density (3 row) D-sub VGA
connector on the supplied cable to a 15 pin 2
row connector.
When using a D-Sub signal input cable connector
for Macintosh
Varies according to model.
NOTE
T
his is a simplified representation of the rear view.
This rear view represents a general model; your display may differ from the view as shown.
3
.
Pres
s the power button on the front panel to turn the power on. When monitor power is
turned on, the 'Self Image Setting Function' is executed automatically.
(Only Analog Mode)
Power Button
Connect the signal
input cable and tighten
it up by turning in the
direction of the arrow
as shown in the figure.
