20

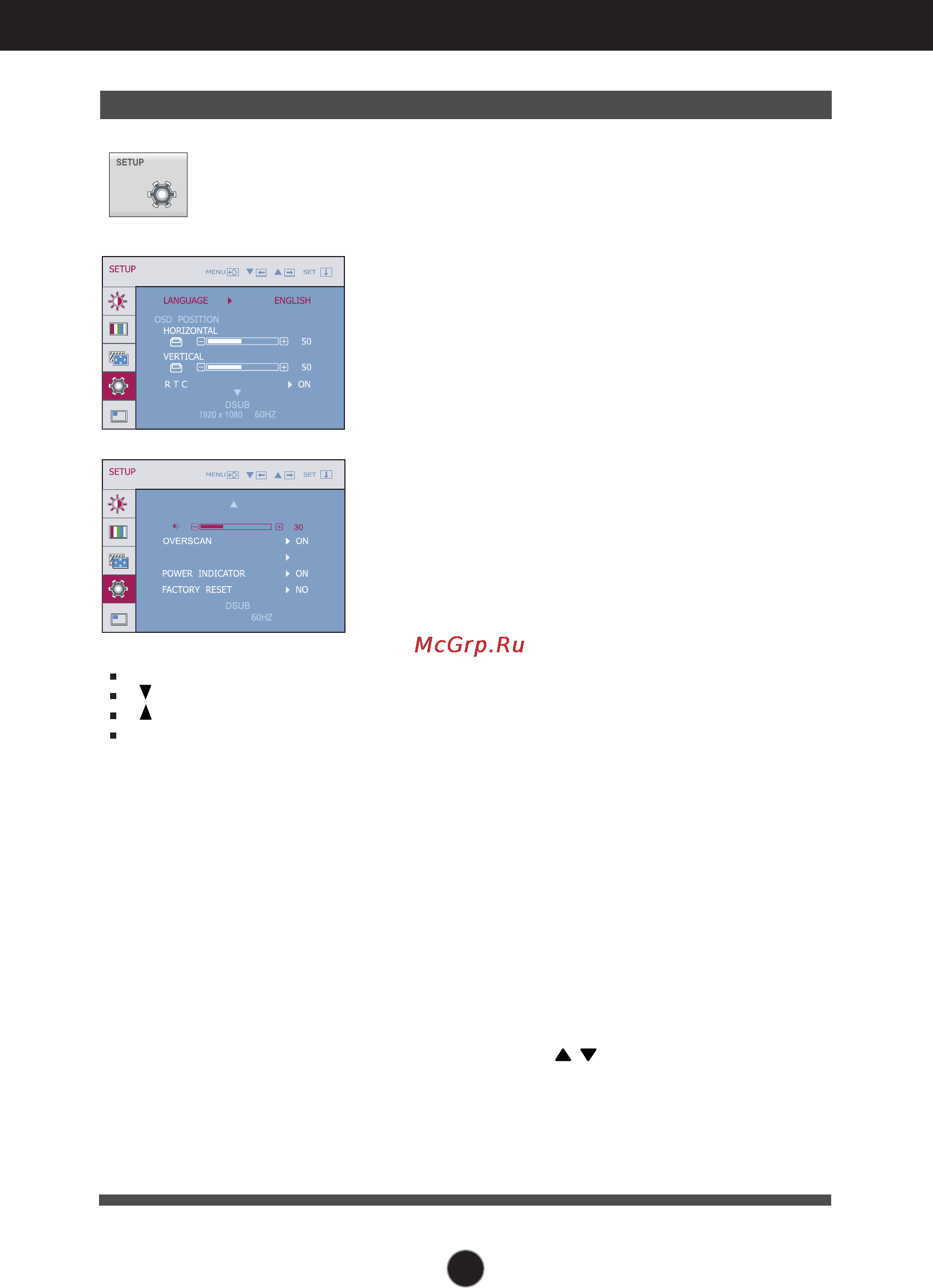

On Screen Display(OSD) Selection and Adjustment
Press the , buttons to reset immediately.
SETUP
MENU : Exit
: Adjust
: Adjust
SET : Select another
sub-menu
Main menu Sub menu Description
To choose the language in which the control
names are displayed.
To adjust position of the OSD window on the
screen.
LANGUAGE
OSD
POSITION
R T C
If you set ON, you enable the Response Time
Control function.
If you set OFF, you disable the Response
Time Control function.
Restore all factory default settings except
"LANGUAGE".
FACTORY
RESET
POWER
INDICATOR
Use this function to set the power indicator on the
front side of the monitor to ON or OFF.
If you set OFF, it will go off.
If you set ON at any time, the power indicator will
automatically be turned on.
VOLUME
LIGHTING LEVEL
1920 x 1080
3
If this does not improve the screen image, restore the factory default settings.
If necessary, perform the white balance function again. This function will be enabled only when
the input signal is an analog signal.
LIGHTING
LEVEL
The White LED will move from center of the
PCB depends on Sound input signal level.
If sound signal level is lower than Threshold
level, the LED cannot operate.
About LIGHTING LEVEL, you can change
from 0 to 10.
If No sound input, the LED has no action.
OVERSCAN
To select the range of output image for DTV
timing in HDMI input.
(only for HDMI input)
Recommend overscan function to turn on when
connect AV equipment.
VOLUME
To adjust the volume of headphone/Earphone.
