14

ENGLISH

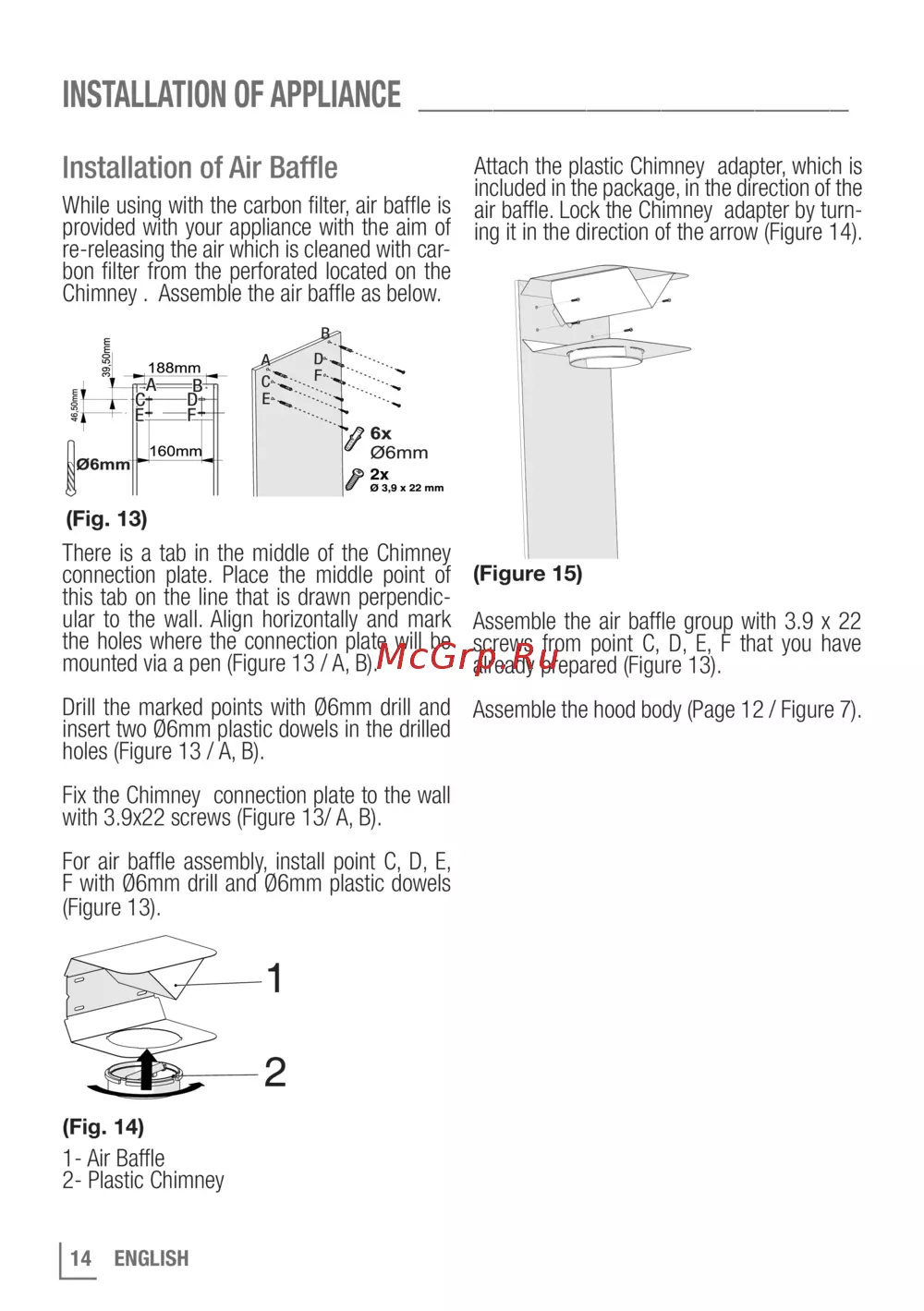

Installation of Air Baffle

While using with the carbon ﬁlter, air bafﬂe is

provided with your appliance with the aim of

re-releasing the air which is cleaned with car-

bon ﬁlter from the perforated located on the

Chimney . Assemble the air bafﬂe as below.

(Fig. 13)

There is a tab in the middle of the Chimney

connection plate. Place the middle point of

this tab on the line that is drawn perpendic-

ular to the wall. Align horizontally and mark

the holes where the connection plate will be

mounted via a pen (Figure 13 / A, B).

Drill the marked points with Ø6mm drill and

insert two Ø6mm plastic dowels in the drilled

holes (Figure 13 / A, B).

Fix the Chimney connection plate to the wall

with 3.9x22 screws (Figure 13/ A, B).

For air bafﬂe assembly, install point C, D, E,

F with Ø6mm drill and Ø6mm plastic dowels

(Figure 13).

Attach the plastic Chimney adapter, which is

included in the package, in the direction of the

air bafﬂe. Lock the Chimney adapter by turn-

ing it in the direction of the arrow (Figure 14).

1- Air Bafﬂe

2- Plastic Chimney

(Fig. 14)

(Figure 15)

Assemble the air bafﬂe group with 3.9 x 22

screws from point C, D, E, F that you have

already prepared (Figure 13).

Assemble the hood body (Page 12 / Figure 7).

1

2

INSTALLATION OF APPLIANCE
