10

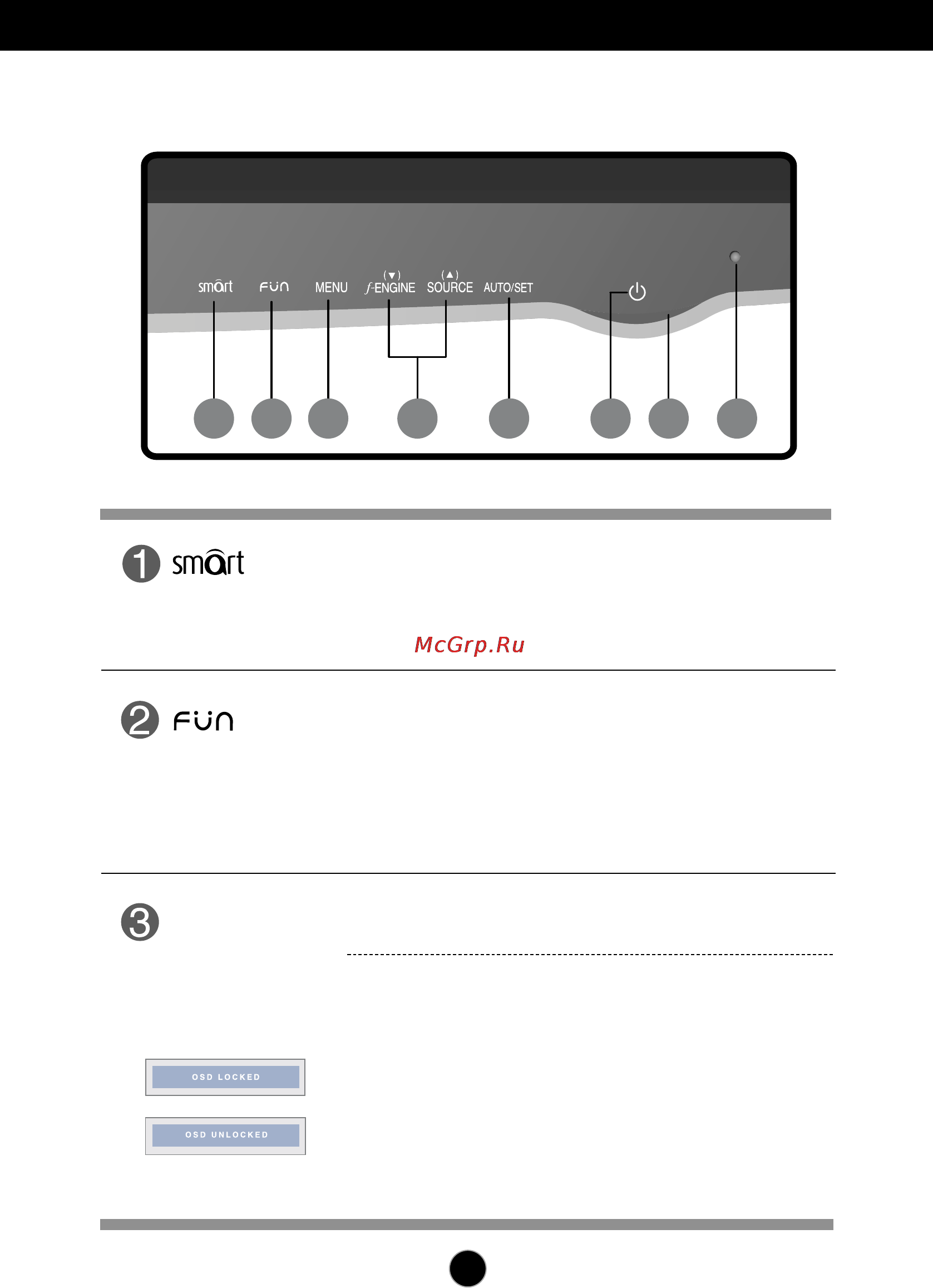

Control Panel Functions
Front Panel Controls
Button
Use this button to move to EZ ZOOMING, 4:3 IN WIDE and
PHOTO EFFECT for D-SUB/DVI-D signal input.
Use this button to move to 4:3 IN WIDE, PHOTO EFFECT
and VOLUME for HDMI signal input.
For more information, refer to page 17.
MENU Button
Use this button to enter or exit the On Screen Display.
OSD LOCKED/UNLOCKED
This function allows you to lock the current control
settings, so that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds.
The message "OSD LOCKED" should appear.
You can unlock the OSD controls at any time by pushing
the MENU button for several seconds. The message
"OSD UNLOCKED" should appear.
1 2 3 5 74 86
Button
Use this button to enter CINEMA MODE, AUTO BRIGHT,
TIME CONTROL, LIVE SENSOR or SMART menus.
For more information, refer to page 16.
