47
ENG
English
Using CLOUD Solution

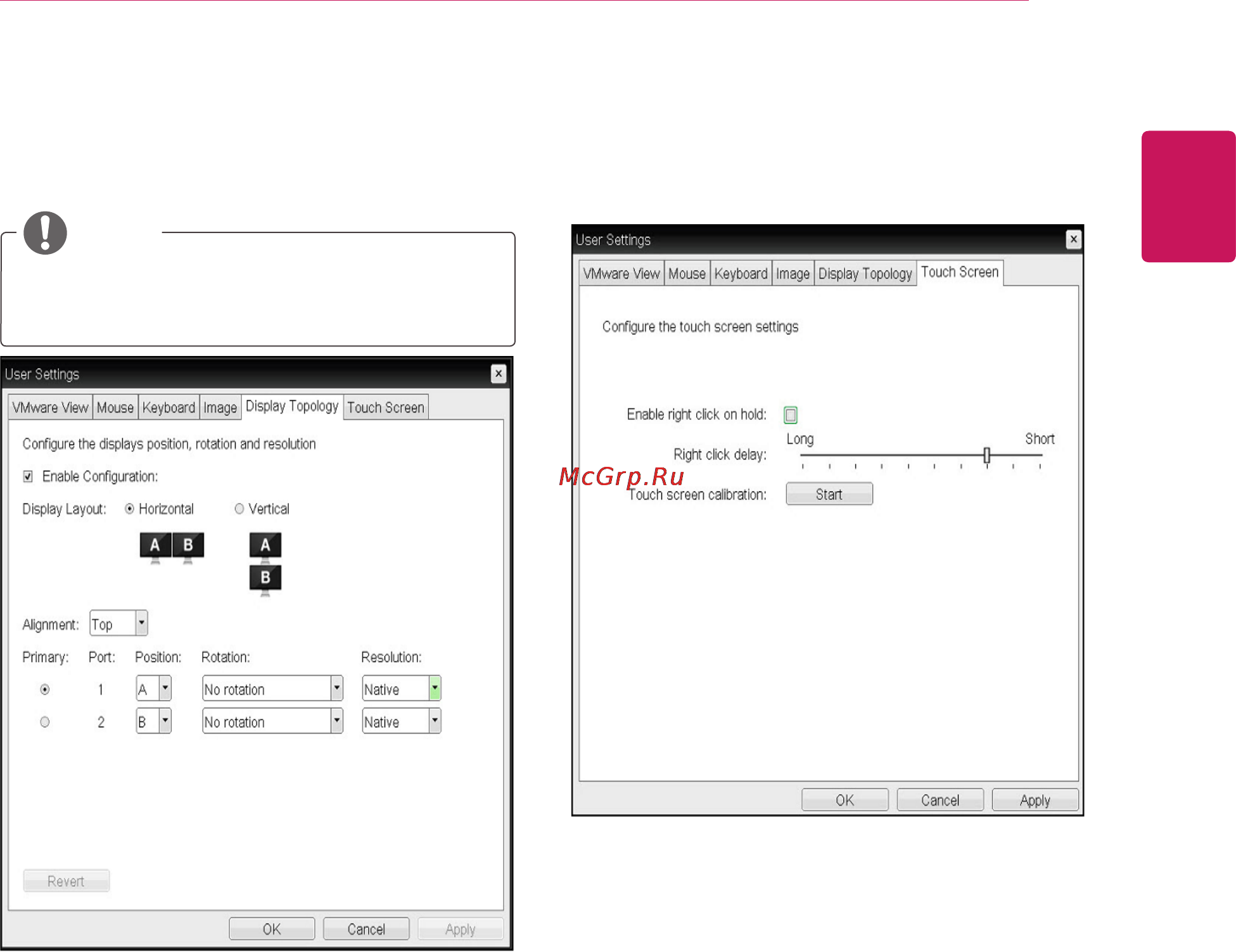

<Figure 2-39: Display Topology>
<Figure 2-40: Touch Screen>
y
It is applicable when the VMware View Con-
nection Server version is 4.5 or later.
NOTE
y
Display Topology Tab
The Display Topology tab allows the user to specify
the position and alignment of a connected second-
ary monitor.
y
Touch Screen Tab
The Touch Screen tab allows the user to specify
the touch sensitivity and alignment when the moni-
tor supports the touch screen function.
y
Enable Configuration
When this option is selected, you can set the
display position and alignment.
You can save the settings by clicking the Apply
or OK button, and the settings will be reset if
you initialize the monitor set.
y
Display Layout
This option allows the user to specify the
direction of monitor connection: vertical or
horizontal.
y
Alignment
This option allows the user to specify the align-
ment position of the monitor to be connected
when there is a resolution difference between
the two monitors.
y
Primary
This option allows the user to change the
primary/secondary settings of the connected
monitor.
y
Enable right click on hold
If this option is selected, clicking and holding
the touch screen for several seconds works
the same as the mouse right click.
y
Right Click Delay
This option allows the user to make moving
the pointer position work the same as the
mouse right click. You can also specify the
distance to move (from Long to Short).
y
Touch screen calibration
The alignment of a touch screen is started
when clicking the Start button.
