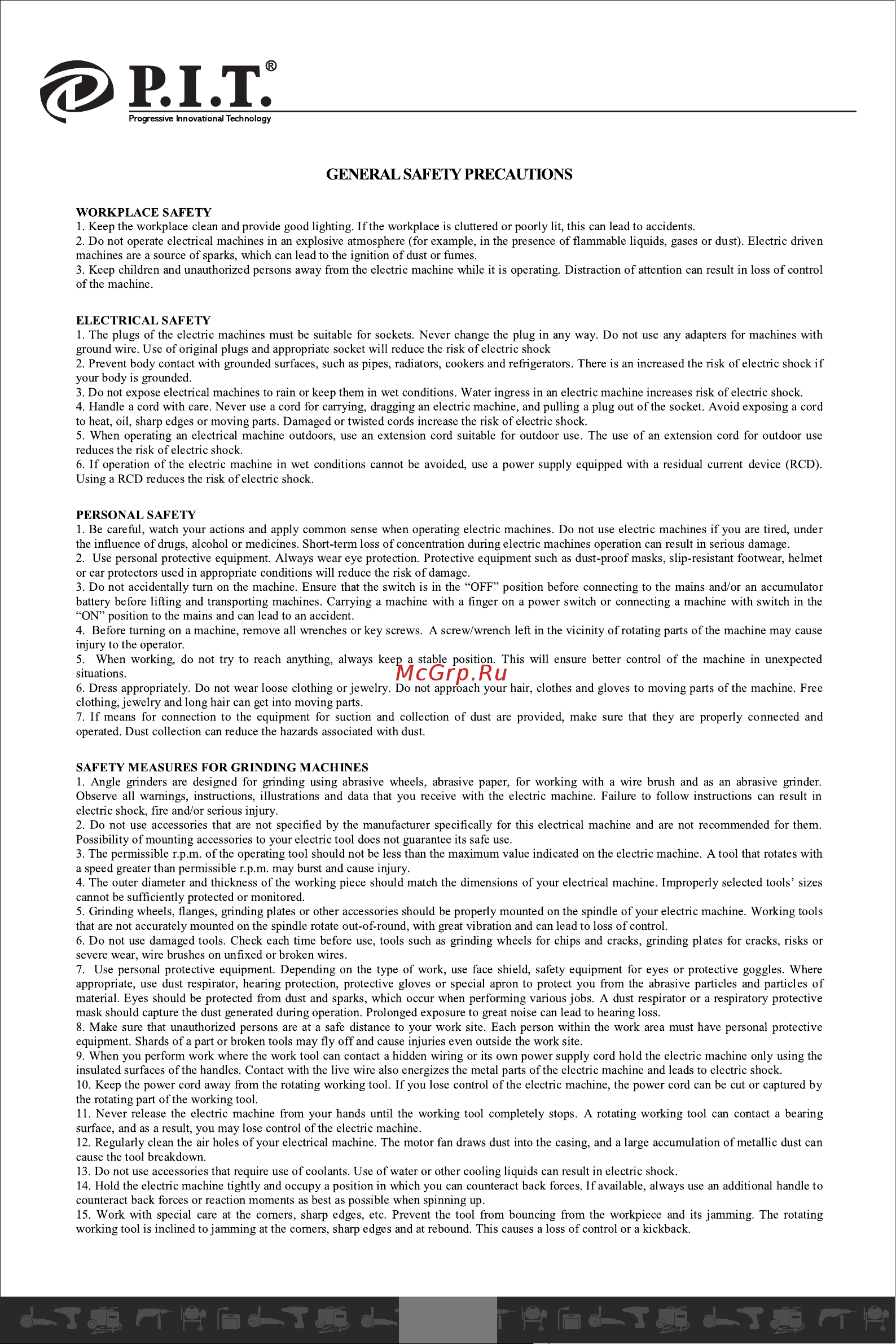

ANGLE GRINDER GENERAL SAFETY PRECAUTIONS WORKPLACE SAFETY 1 Keep the workplace clean and provide good lighting If the workplace is cluttered or poorly lit this can lead to accidents 2 Do not operate electrical machines in an explosive atmosphere for example in the presence of flammable liquids gases or dust Electric driven machines are a source of sparks which can lead to the ignition of dust or fumes 3 Keep children and unauthorized persons away from the electric machine while it is operating Distraction of attention can result in loss of control of the machine ELECTRICAL SAFETY 1 The plugs of the electric machines must be suitable for sockets Never change the plug in any way Do not use any adapters for machines with ground wire Use of original plugs and appropriate socket will reduce the risk of electric shock 2 Prevent body contact with grounded surfaces such as pipes radiators cookers and refrigerators There is an increased the risk of electric shock if your body is grounded 3 Do not expose electrical machines to rain or keep them in wet conditions Water ingress in an electric machine increases risk of electric shock 4 Handle a cord with care Never use a cord for carrying dragging an electric machine and pulling a plug out of the socket Avoid exposing a cord to heat oil sharp edges or moving parts Damaged or twisted cords increase the risk of electric shock 5 When operating an electrical machine outdoors use an extension cord suitable for outdoor use The use of an extension cord for outdoor use reduces the risk of electric shock 6 If operation of the electric machine in wet conditions cannot be avoided use a power supply equipped with a residual current device RCD Using a RCD reduces the risk of electric shock PERSONAL SAFETY 1 Be careful watch your actions and apply common sense when operating electric machines Do not use electric machines if you are tired under the influence of drugs alcohol or medicines Short term loss of concentration during electric machines operation can result in serious damage 2 Use personal protective equipment Always wear eye protection Protective equipment such as dust proof masks slip resistant footwear helmet or car protectors used in appropriate conditions will reduce the risk of damage 3 Do not accidentally turn on the machine Ensure that the switch is in the OFF position before connecting to the mains and or an accumulator battery before lifting and transporting machines Carrying a machine with a finger on a power switch or connecting a machine with switch in the ON position to the mains and can lead to an accident 4 Before turning on a machine remove all wrenches or key screws A scrcw wrcnch left in the vicinity of rotating parts of the machine may cause injury to the operator 5 When working do not try to reach anything always keep a stable position This will ensure better control of the machine in unexpected situations 6 Dress appropriately Do not wear loose clothing or jewelry Do not approach your hair clothes and gloves to moving parts of the machine Free clothing jewelry and long hair can get into moving parts 7 If means for connection to the equipment for suction and collection of dust arc provided make sure that they arc properly connected and operated Dust collection can reduce the hazards associated with dust SAFETY MEASURES FOR GRINDING MACHINES 1 Angle grinders arc designed for grinding using abrasive wheels abrasive paper for working with a wire brush and as an abrasive grinder Observe all warnings instructions illustrations and data that you receive with the electric machine Failure to follow instructions can result in electric shock fire and or serious injury 2 Do not use accessories that are not specified by the manufacturer specifically for this electrical machine and are not recommended for them Possibility of mounting accessories to your electric tool docs not guarantee its safe use 3 The permissible r p m of the operating tool should not be less than the maximum value indicated on the electric machine A tool that rotates with a speed greater than permissible r p m may burst and cause injury 4 The outer diameter and thickness of the working piece should match the dimensions of your electrical machine Improperly selected tools sizes cannot be sufficiently protected or monitored 5 Grinding wheels flanges grinding plates or other accessories should be properly mounted on the spindle of your electric machine Working tools that arc not accurately mounted on the spindle rotate out of round with great vibration and can lead to loss of control 6 Do not use damaged tools Check each time before use tools such as grinding wheels for chips and cracks grinding plates for cracks risks or severe wear wire brushes on unfixed or broken wires 7 Use personal protective equipment Depending on the type of work use face shield safety equipment for eyes or protective goggles Where appropriate use dust respirator hearing protection protective gloves or special apron to protect you from the abrasive particles and particles of material Eyes should be protected from dust and sparks which occur when performing various jobs A dust respirator or a respiratory protective mask should capture the dust generated during operation Prolonged exposure to great noise can lead to hearing loss 8 Make sure that unauthorized persons arc at a safe distance to your work site Each person within the work area must have personal protective equipment Shards of a part or broken tools may fly off and cause injuries even outside the work site 9 When you perform work where the work tool can contact a hidden wiring or its own power supply cord hold the electric machine only using the insulated surfaces of the handles Contact with the live wire also energizes the metal parts of the electric machine and leads to electric shock 10 Keep the power cord away from the rotating working tool If you lose control of the electric machine the power cord can be cut or captured by the rotating part of the working tool II Never release the electric machine from your hands until the working tool completely stops A rotating working tool can contact a bearing surface and as a result you may lose control of the electric machine 12 Regularly clean the air holes of your electrical machine The motor fan draws dust into the casing and a large accumulation of metallic dust can cause the tool breakdown 13 Do not use accessories that require use of coolants Use of water or other cooling liquids can result in electric shock 14 Hold the electric machine tightly and occupy a position in which you can counteract back forces If available always use an additional handle to counteract back forces or reaction moments as best as possible when spinning up 15 Work with special care at the comers sharp edges etc Prevent the tool from bouncing from the workpiece and its jamming The rotating working tool is inclined to jamming at the comers sharp edges and at rebound This causes a loss of control or a kickback
