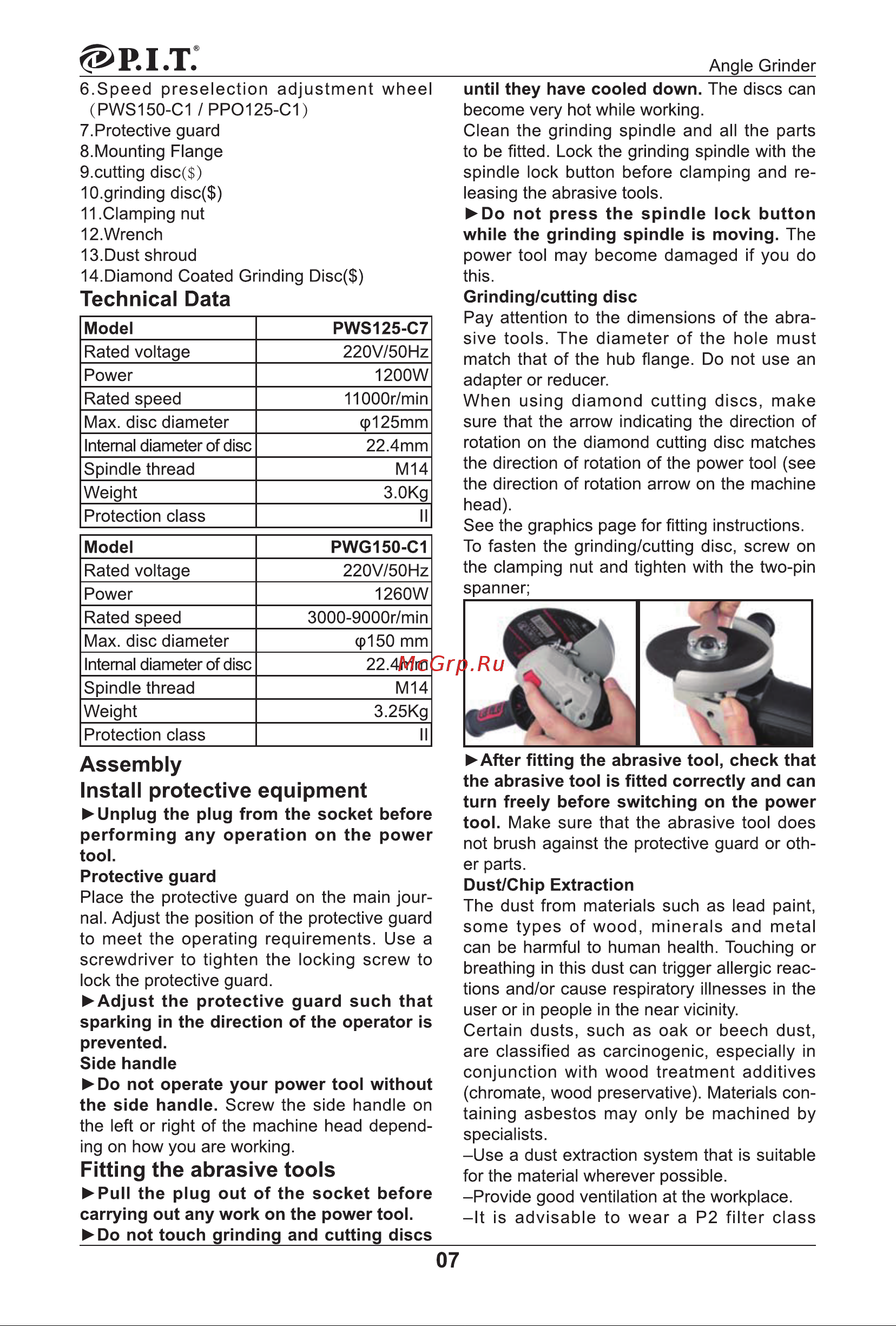

P I T ______________ 6 Speed preselection adjustment PWS150 C1 PPO125 C1 Protective guard 8 Mounting Flange 9 cutting disc 10 grinding disc 11 Clamping nut 12 Wrench 13 Dust shroud 14 Diamond Coated Grinding Disc wheel Technical Data Model Rated voltage Power Rated speed Max disc diameter Internal diameter of disc Spindle thread Weight Protection class PWS125 C7 220V 50Hz 1200W 11000r min q 125mm 22 4mm M14 3 0Kg II Model Rated voltage Power Rated speed Max disc diameter Internal diameter of disc Spindle thread Weight Protection class PWG150 C1 220V 50HZ 1260W 3000 9000r min p150 mm 22 4mm M14 3 25Kg II ___________________________ Angle Grinder until they have cooled down The discs can become very hot while working Clean the grinding spindle and all the parts to be fitted Lock the grinding spindle with the spindle lock button before clamping and re leasing the abrasive tools Do not press the spindle lock button while the grinding spindle is moving The power tool may become damaged if you do this Grinding cutting disc Pay attention to the dimensions of the abra sive tools The diameter of the hole must match that of the hub flange Do not use an adapter or reducer When using diamond cutting discs make sure that the arrow indicating the direction of rotation on the diamond cutting disc matches the direction of rotation of the power tool see the direction of rotation arrow on the machine head See the graphics page for fitting instructions To fasten the grinding cutting disc screw on the clamping nut and tighten with the two pin spanner After fitting the abrasive tool check that the abrasive tool is fitted correctly and can turn freely before switching on the power tool Make sure that the abrasive tool does not brush against the protective guard or oth er parts Dust Chip Extraction The dust from materials such as lead paint some types of wood minerals and metal can be harmful to human health Touching or breathing in this dust can trigger allergic reac tions and or cause respiratory illnesses in the user or in people in the near vicinity Certain dusts such as oak or beech dust are classified as carcinogenic especially in conjunction with wood treatment additives chromate wood preservative Materials con taining asbestos may only be machined by specialists Use a dust extraction system that is suitable for the material wherever possible Provide good ventilation at the workplace It is advisable to wear a P2 filter class Assembly Install protective equipment Unplug the plug from the socket before performing any operation on the power tool Protective guard Place the protective guard on the main jour nal Adjust the position of the protective guard to meet the operating requirements Use a screwdriver to tighten the locking screw to lock the protective guard Adjust the protective guard such that sparking in the direction of the operator is prevented Side handle Do not operate your power tool without the side handle Screw the side handle on the left or right of the machine head depend ing on how you are working Fitting the abrasive tools Pull the plug out of the socket before carrying out any work on the power tool Do not touch grinding and cutting discs 07
