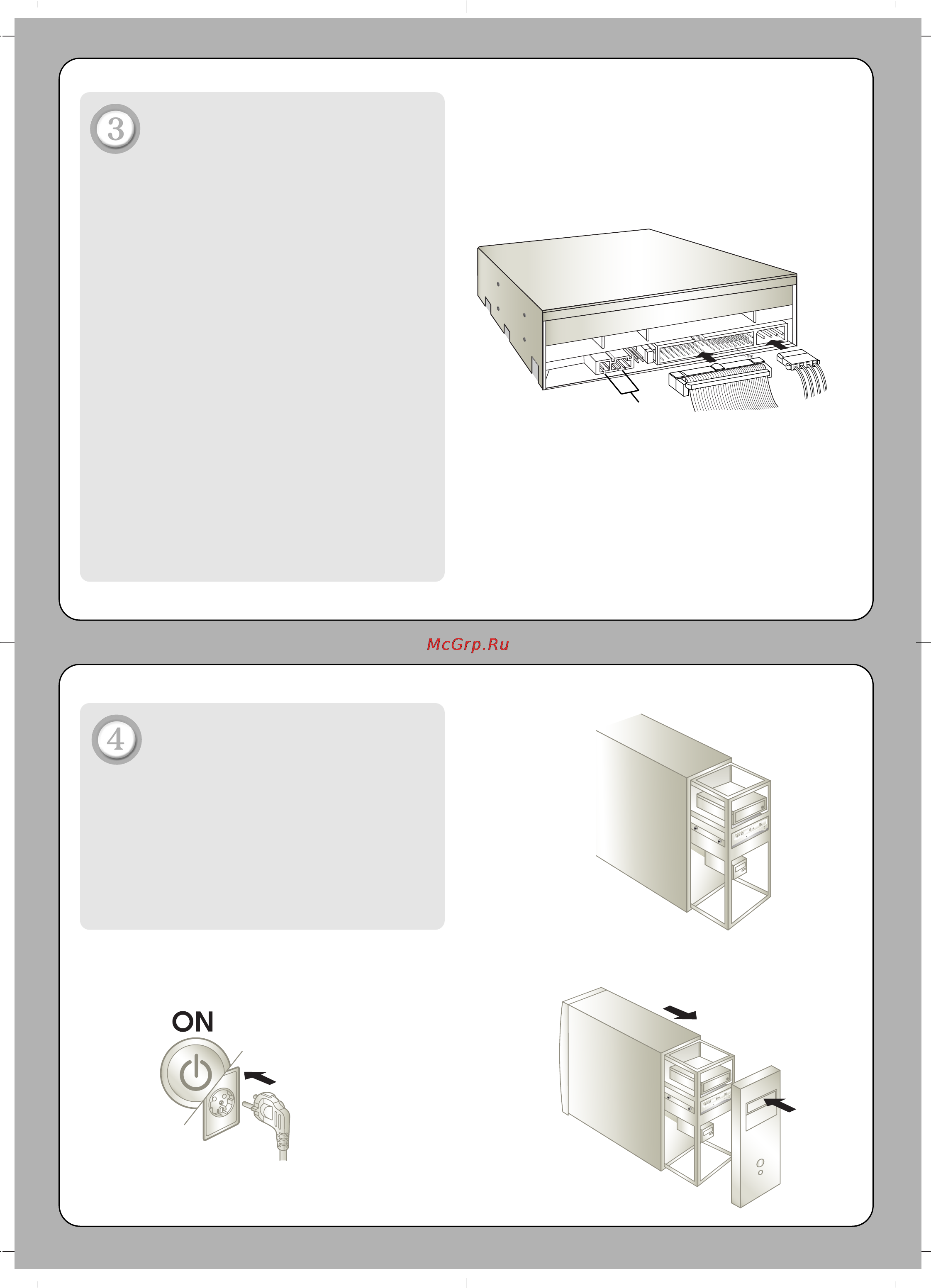

Connect the IDE data
cable/DC power cable
to the drive.
❶ Connect the IDE data cable to the back of
the drive.
* Using a 40-pin IDE cable might bring the '04/08/03
error (LOGICAL UNIT COMMUNICATION CRC
ERROR (ULTRA-DMA/32))'.
In this case, substitute to 80-pin type IDE cable is
highly recommended.
This kind of error is hardly detected from some
specific motherboard.
❷ Connect a 4-pin power supply cable from
the computer to the drive.
Replace the cover,
connect the power cord
and restart your computer.
• Your computer configuration may different
from the illustrations.
IDE Cable
DC Power Cable
❶ IDE Cable
Reserved
❷ DC Power
Cable
