Item Name Description
G Option port Interface connection options for peripheral devices or an additional
monitor:
• RS-232C connector (default)
• DVI-D connector
• NY Monitor Link connector
• RJ45 Gb Ethernet connector
5-5-2
Connection Procedure
Use the following procedure to connect the Industrial Box PC.
Ensure the
Box PC is securely fastened to the mounting surface.
Ensure the mounted Box PC can be connected to power and peripheral devices. Remove dust covers
where applicable and store them in a safe place.
Additional Information
• Refer to 5-3 Mount on page 5-16 for mounting details.
• Refer to
3-10 Optional Hardware on page 3-22 for the cables advised by Omron.
Refer to individual cable specifications for cable bending requirements and connector clear-
ance.
Use the following procedure to connect the Box PC:
1 Ensure the ground terminal is connected.
Refer to 5-4-2 Ground on page
5-29 for grounding details.

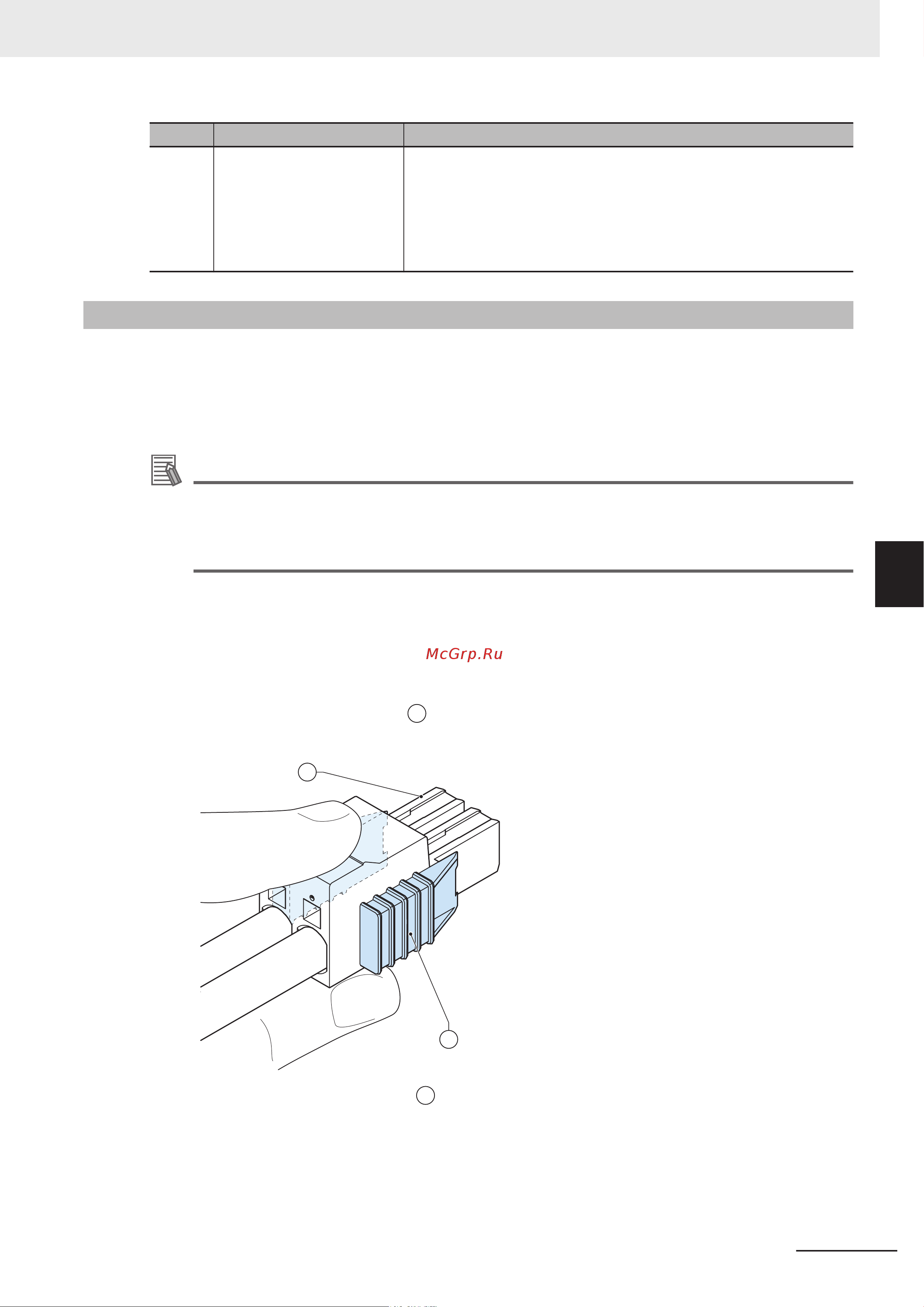

2 Connect the power connector
A
.
Hold the black part to enable the auto-locking mechanism.
B
A
Do not push the orange sliders
B
in the direction of the Box PC because this will unlock the
connector.
5 Installation
5-43
NY-series Industrial Box PC Hardware User's Manual (W553)
5-5 Connect
5
5-5-2 Connection Procedure
