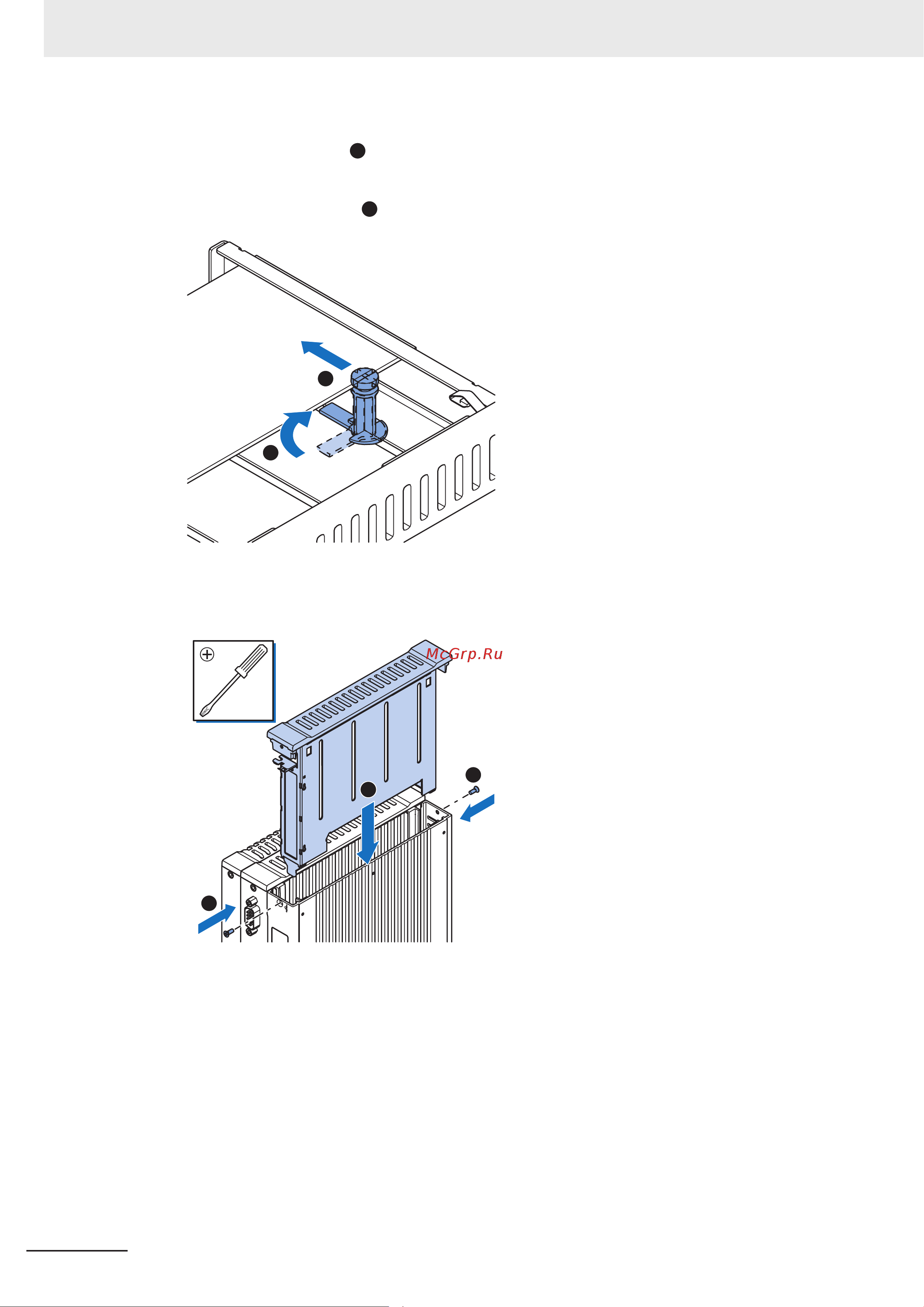

7 Slide the Card Support
1
so that it supports the side of the PCIe Card.
The card should be in small groove so there is support below and above the card.
Rotate the Card Support
2
to lock it in place.
2
1
8 Insert the PCIe Drawer in the Box PC and then insert the two crosshead screws that hold the
PCIe Drawer in place.
2
1
2
5 Installation
5-14
NY-series Industrial Box PC Hardware User's Manual (W553)
