Pedrollo MAGNIFICA 2 м [2/4] Characteristic curves and performance data 50 hz n 2900 min 1 hs 0 m
Макгруп McGrp.ru
Задайте вопрос
Зарегистрироваться

Pedrollo MAGNIFICA 2 м [2/4] Characteristic curves and performance data 50 hz n 2900 min 1 hs 0 m

Pedrollo MAGNIFICA 2 м [2/4] Characteristic curves and performance data 50 hz n 2900 min 1 hs 0 m
143
0 100 200 300 400 500 600 700
0
5
10
15
20
25
0 1
0
10
20
30
40
50
60
70
0 50 100 150
0 50 100 150
0 5 10 15 20 25 30 35 40 45
US g.p.m.
Imp g.p.m.
feet
l/min
m³/h
MAGNIFICA 3
MAGNIFICA 2
MAGNIFICA 4
MAGNIFICA 5
MAGNIFICA 1
η = 58.4%
η = 57%
η = 57%
η = 58%
η = 60%

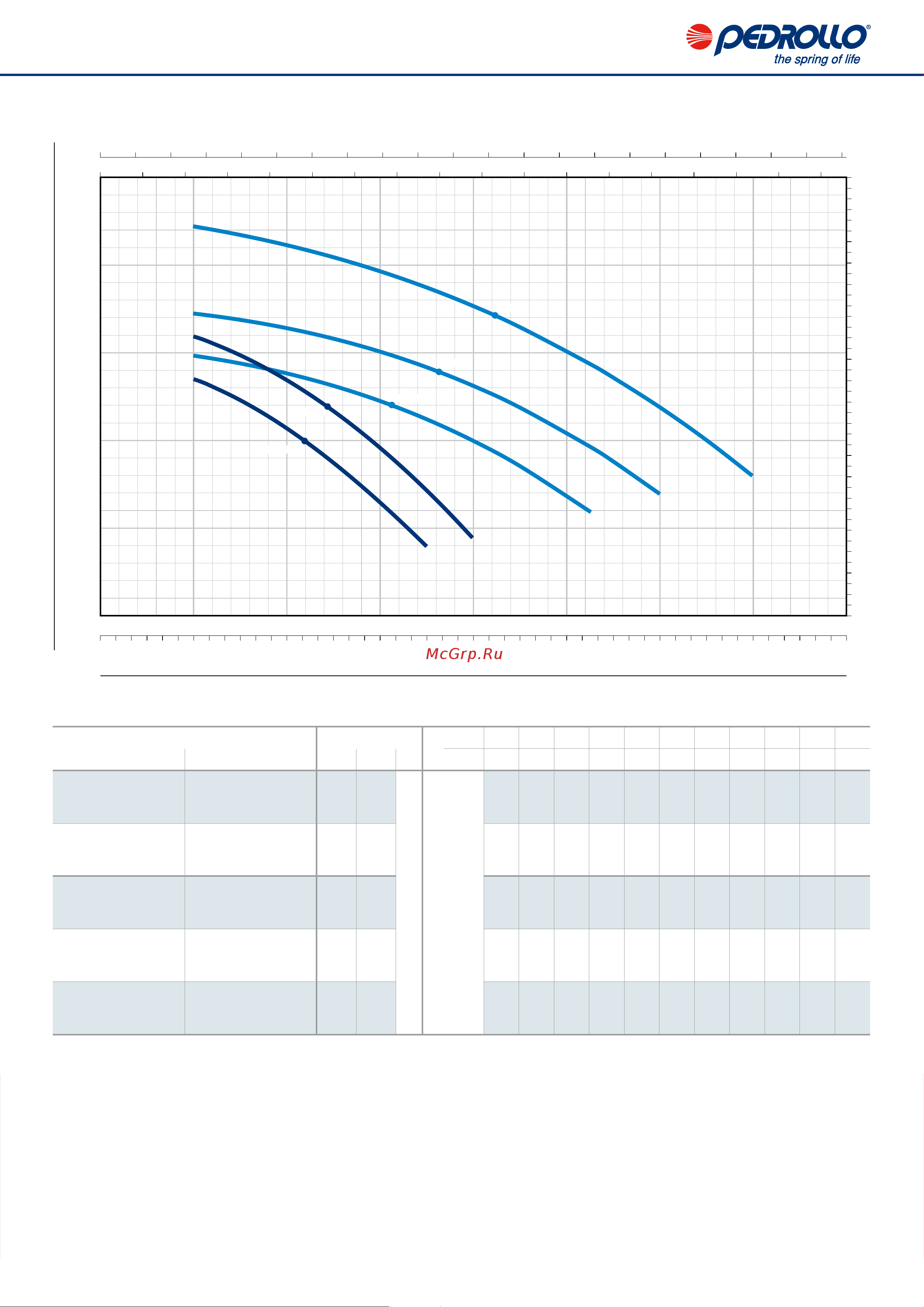

CHARACTERISTIC CURVES AND PERFORMANCE DATA 50 Hz n= 2900 min HS= 0 m
Flow rate Q
4
Head H (metres)
4
MODEL POWER (P)
Q
m³/h
0 6.0 9.0 12 15 18 21 24 30 36 42
Single-phase Three-phase kW HP
l/min 0 100 150 200 250 300 350 400 525 600 700
MAGNIFICA - 1m MAGNIFICA - 1T 0.55 0.75
IE3 H
metres
14.5 13.5 12.3 10.7 8.8 6.5 4
MAGNIFICA - 2m MAGNIFICA - 2T 0.75 1
17 16 14.9 13.5 11.8 9.7 7.3 4.5
MAGNIFICA - 3m MAGNIFICA - 3T 1.1 1.5
15.5 14.9 14.4 13.9 13.2 12.3 11.3 10 6
MAGNIFICA - 4m MAGNIFICA - 4T 1.5 2
17.7 17. 3 16.9 16.4 15.8 15.1 14.2 13.1 9.6 7
– MAGNIFICA - 5T 2.2 3
23 22.2 21.8 21.2 20.5 19.7 18.8 17.7 14.4 11.9
8
Q = Flow rate H = Total manometric head HS = Suction height Tolerance of characteristic curves in compliance with EN ISO 9906 Grade 3B.
 
Three-phase motor eciency class (IEC 60034-30-1)
MAGNIFICA | 50 Hz
