Pedrollo MAGNIFICA 2 м [3/4] Magnifica

144

MAGNIFICA

11 13 12 14

2 4 7 8

1595631

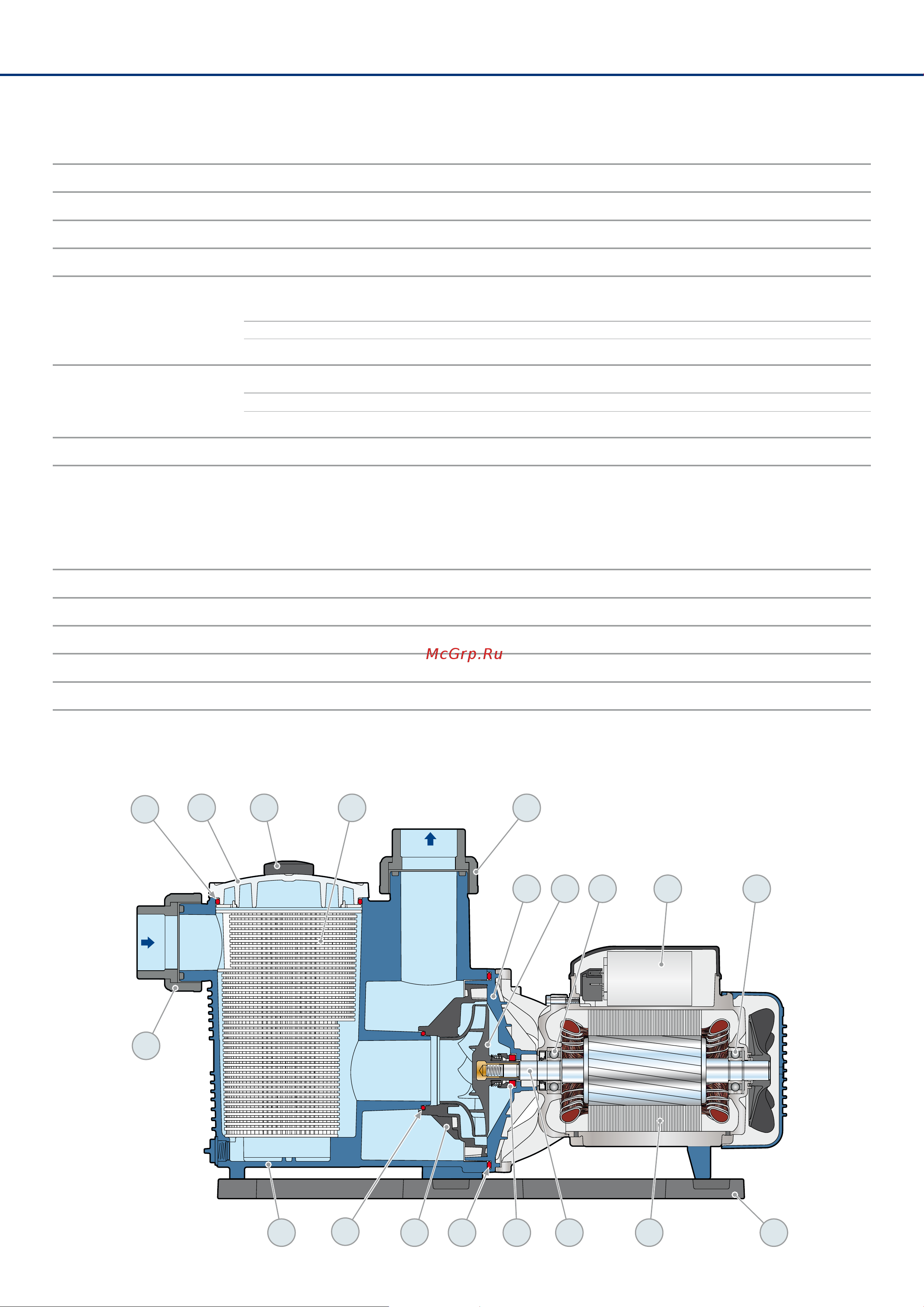

POS. COMPONENT CONSTRUCTION CHARACTERISTICS

1 PUMP BODY Glass bre reinforced polypropylene with threaded ports in compliance with ISO 228/1

DOOR SEAL INSERT

Glass bre reinforced polypropylene

3 DIFFUSER Noryl

4 IMPELLER Noryl

5 MOTOR SHAFT Stainless steel AISI 431

6 MECHANICAL SEAL

Pump Seal Shaft Materials

Model Model Diameter Stationary ring Rotational ring Elastomer

MAGNIFICA 1-2 AR-17 Ø 17 Ceramic Graphite NBR

MAGNIFICA 3-4-5 AR-20R Ø 20 Ceramic Graphite NBR

7 BEARINGS

Pump Model

MAGNIFICA 1-2 6203 2RS / 6203 2RS

MAGNIFICA 3-4-5 6204 2RS / 6204 2RS μF - 250 VL

8 CAPACITOR

9 ELECTRIC MOTOR MAGNIFICA m: single-phase 230 V - 50 Hz with thermal overload protector incorporated into the winding.

MAGNIFICA T: three-phase 230/400 V - 50 Hz.

➠ The three-phase pumps are fitted with high performance motors in class IE3 (IEC 60034-30-1)

– Insulation: class F

– Protection: IP X4

10 OR NBR

11 BODY BACKPLATE Polycarbonate

12 PRE-FILTER Polypropylene

13 CLOSURE KNOB Nylon

14 CONNECTIONS PVC-U

BASE Polypropylene

50 Hz | MAGNIFICA
