Pedrollo MAGNIFICA 2 м [4/4] Absorption

145

234

537

260

472

231

234

210

DN1

DN2

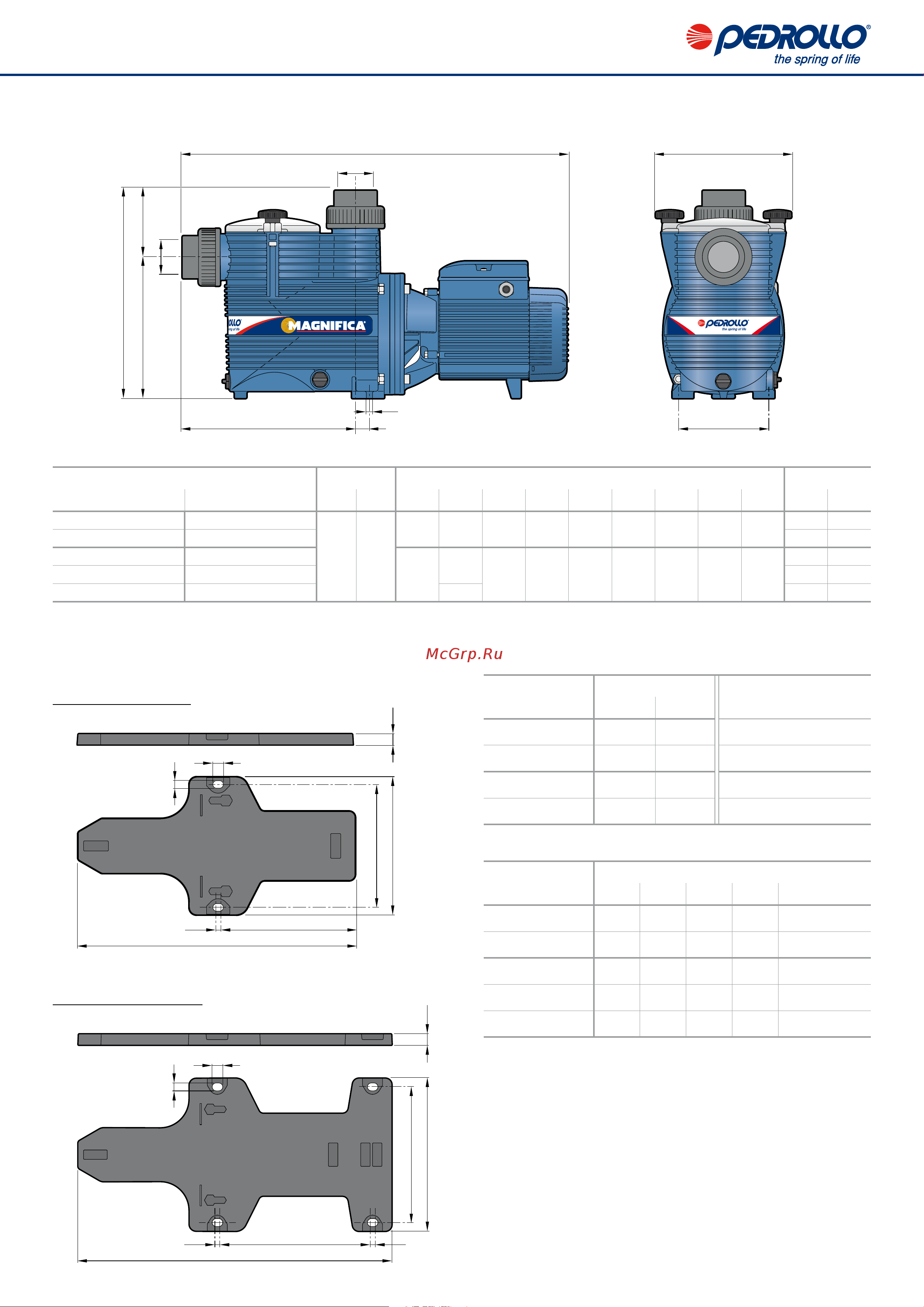

DIMENSIONS AND WEIGHT

BASE (mm)

Base for MAGNIFICA 3-4-5

Base for MAGNIFICA 1-2

ABSORPTION

MODEL PORTS DIMENSIONS mm kg

Single-phase Three-phase DN1 DN2 a f h1 h2 h3 n2 w s t 1~ 3~

MAGNIFICA - 1m MAGNIFICA - 1T

2" 2"

294 583 240 113 353 155 4.3 10.5 235

14.0 13.9

MAGNIFICA - 2m MAGNIFICA - 2T 14.9 14.8

MAGNIFICA - 3m MAGNIFICA - 3T

294

657

240 113 353 155 15.8 10.5 235

19.4 19.3

MAGNIFICA - 4m MAGNIFICA - 4T 20.4 20.4

– MAGNIFICA - 5T 677 – 23.1

MODEL VOLTAGE

Three-phase 230 V 400 V 690 V 240 V 415 V 720 V

MAGNIFICA - 1T 2.8 A 1.6 A 0.9 A 2.7 A 1.5 A 0.9 A

MAGNIFICA - 2T 3.6 A 2.1 A 1.2 A 3.5 A 2.0 A 1.2 A

MAGNIFICA - 3T 6.2 A 3.6 A 2.1 A 5.9 A 3.5 A 2.0 A

MAGNIFICA - 4T 7.8 A 4.5 A 2.6 A 7. 5 A 4.3 A 2.5 A

MAGNIFICA - 5T 8.7 A 5.0 A 2.9 A 8.3 A 4.8 A 2.8 A

MODEL VOLTAGE CAPACITANCE

Single-phase 230 V 240 V (230 V or 240 V)

MAGNIFICA - 1m 4.2 A 4.0 A 20 μF - 450 VL

MAGNIFICA - 2m 5.6 A 5.4 A 20 μF - 450 VL

MAGNIFICA - 3m 8.2 A 7.9 A 31.5 μF - 450 VL

MAGNIFICA - 4m 10.4 A 10 A 45 μF - 450 VL

MAGNIFICA | 50 Hz
