CONDTROL Green RotoLaser CONDTROL Green RotoLaser

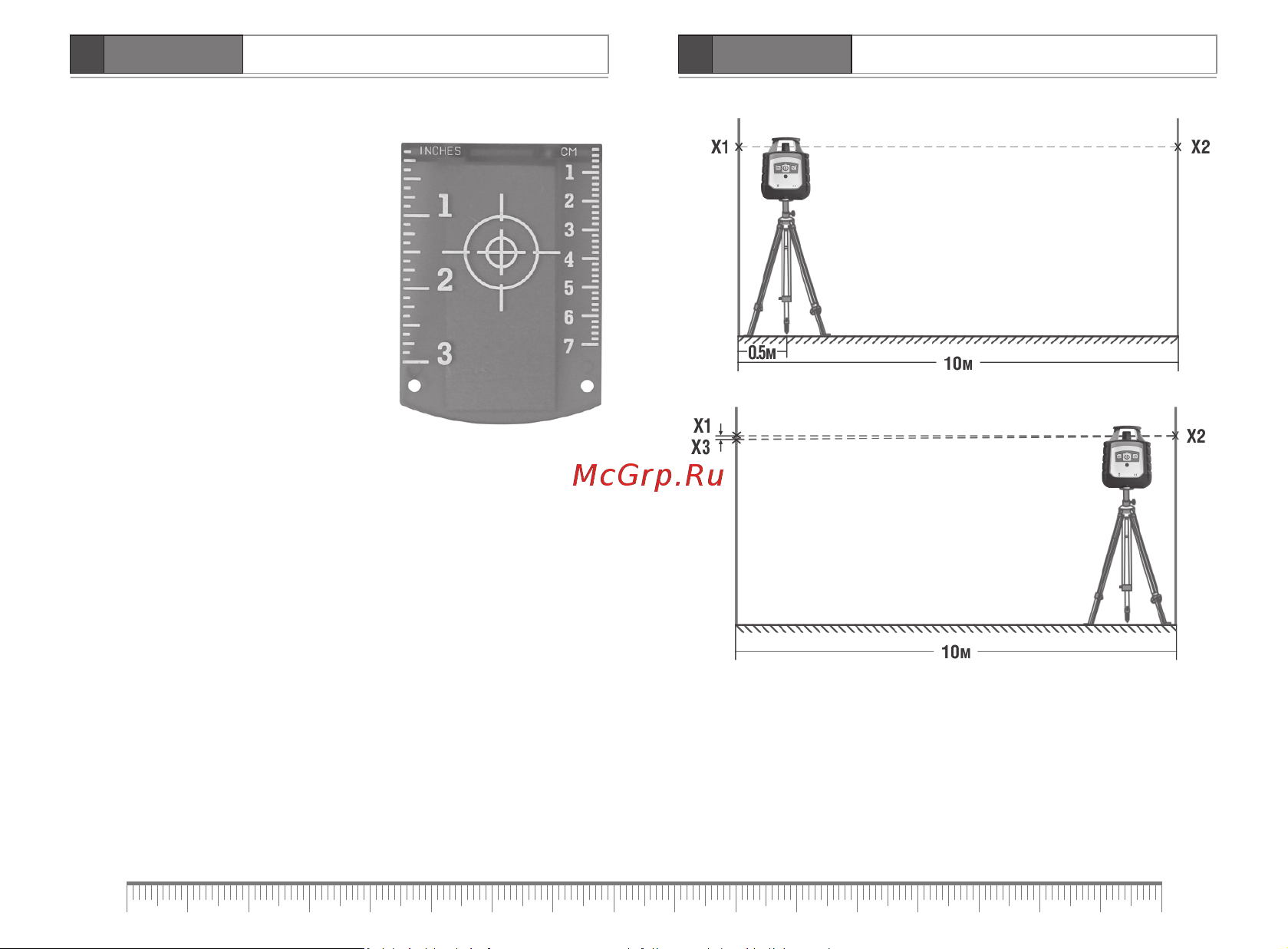

Magnetic target board

Magnetic target board helps to

make the layout of ceiling systems or

framework structures. Built-in magnet

enables attaching a target to the ceiling

rails or on the frame profile. The target

has a linear layout on its surface, which

allows determining deviation from the

nominal level and making check points

while marking by laser leveling.

ACCURACY CHECK

Axis X

1. Place the product at 0.5 m distance from one wall and 10 m

distance from another wall, so that axis X is aimed at the wall.

2. Turn on the product. As soon as self-levelling is finished, mark

location of laser line on both walls by points X1 and X2.

3. Turn off the product. Move it to the opposite wall, position of the

product should remain unchanged.

4. Turn on the product. Align laser line with the previously made

point X2. Mark point X3 on the opposite wall.

5. If distance between points X1 и X3 is more than 3 mm – turn off

the product and contact service center.

Axis Y

1. Place the product at 0.5 m distance from one wall and 10 m

distance from another wall, so that axis Y is aimed at the wall.

2. Turn on the product. As soon as self-levelling is finished, mark

location of laser line on both walls by points Y1 and Y2.
