39
ENGLISH
Transporting the FLEXVOLT
TM
Battery
The DEWALT FLEXVOLT
TM
battery has two modes: Use and
Transport.
Use Mode: When the FLEXVOLT
TM
battery stands alone or is in
a DEWALT 18V product, it will operate as an 18V battery. When
the FLEXVOLT
TM
battery is in a 54V or a 108V (two 54V batteries)
product, it will operate as a 54V battery.
Transport Mode: When the cap is attached to the FLEXVOLT
TM
battery, the battery is in Transport mode. Keep the cap for
shipping.
When in Transport mode, strings
of cells are electrically
disconnected within the pack
resulting in 3 batteries with a
lower Watt hour (Wh) rating as compared to 1 battery with a
higher Watt hour rating. This increased quantity of 3 batteries
with the lower Watt hour rating can exempt the pack from
certain shipping regulations that are imposed upon the higher
Watt hour batteries.
For example, the Transport
Wh rating might indicate
3x36 Wh, meaning 3
batteries of 36 Wh each.
The Use Wh rating might
indicate 108Wh (1battery implied).
Storage Recommendations
1. The best storage place is one that is cool and dry away
from direct sunlight and excess heat or cold. For optimum
battery performance and life, store battery packs at room
temperature when not in use.
2. For long storage, it is recommended to store a fully charged
battery pack in a cool, dry place out of the charger for
optimal results.
NOTE: Battery packs should not be stored completely depleted
of charge. The battery pack will need to be recharged before
use.

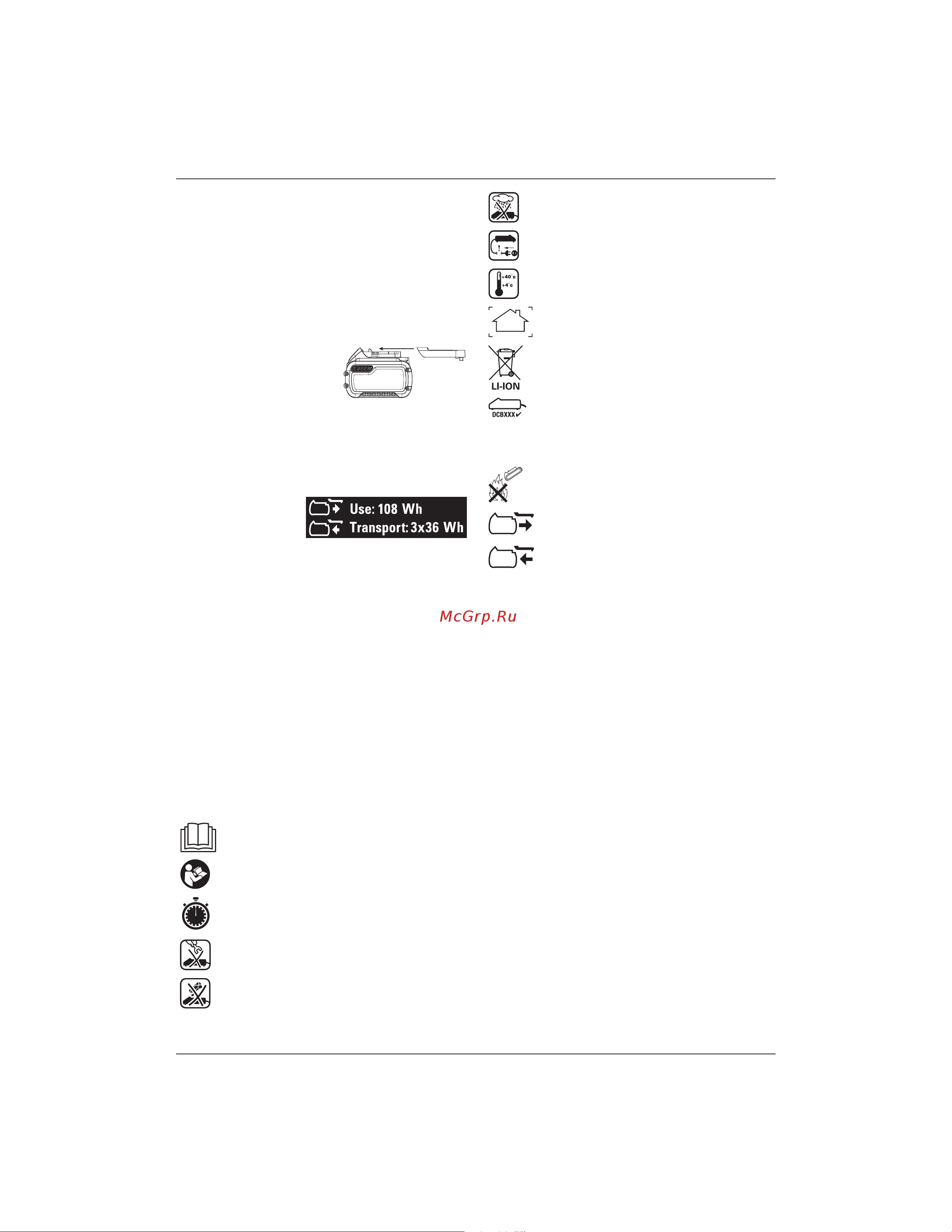

Labels on Charger and Battery Pack
In addition to the pictographs used in this manual, the labels
on the charger and the battery pack may show the following
pictographs:
Read instruction manual before use.
See Technical Data for charging time.
Do not probe with conductive objects.
Do not charge damaged battery packs.
Example of Use and Transport Label Marking
Battery Type
The DCW600, DCW604 operate on a 18 volt battery pack.
These battery packs may be used: DCB181, DCB182, DCB183,
DCB183B, DCB184, DCB184B, DCB185, DCB187, DCB189,
DCB546, DCB547, DCB548. Refer to Technical Data for
moreinformation.
Package Contents
The package contains:
DCW600
1 Router with fixed base
1 Fixed base dust collection
1 Basic parallel fence
1 Collet 8 mm
1 Collet 1/4"
1 Wrench
1 Round subbase
DCW604
1 Router with fixed base and plunge base
1 Round subbase
1 Plunge base dust collection
1 Fixed base dust collection
1 Basic parallel fence
1 Plunge base parallel fence
1 Collet 8 mm
1 Collet 1/4"
1 Wrench
1 Centreing tool
Do not expose to water.
Have defective cords replaced immediately.
Charge only between 4 ˚C and 40 ˚C.
Only for indoor use.
Discard the battery pack with due care for the
environment.
Charge DEWALT battery packs only with designated
DEWALT chargers. Charging battery packs other
than the designated DEWALT batteries with a
DEWALT charger may make them burst or lead to
other dangerous situations.
Do not incinerate the battery pack.
USE (without transport cap). Example: Wh rating
indicates 108 Wh (1 battery with 108 Wh).
TRANSPORT (with built-in transport cap). Example:
Wh rating indicates 3 x 36 Wh (3batteries of 36 Wh).
