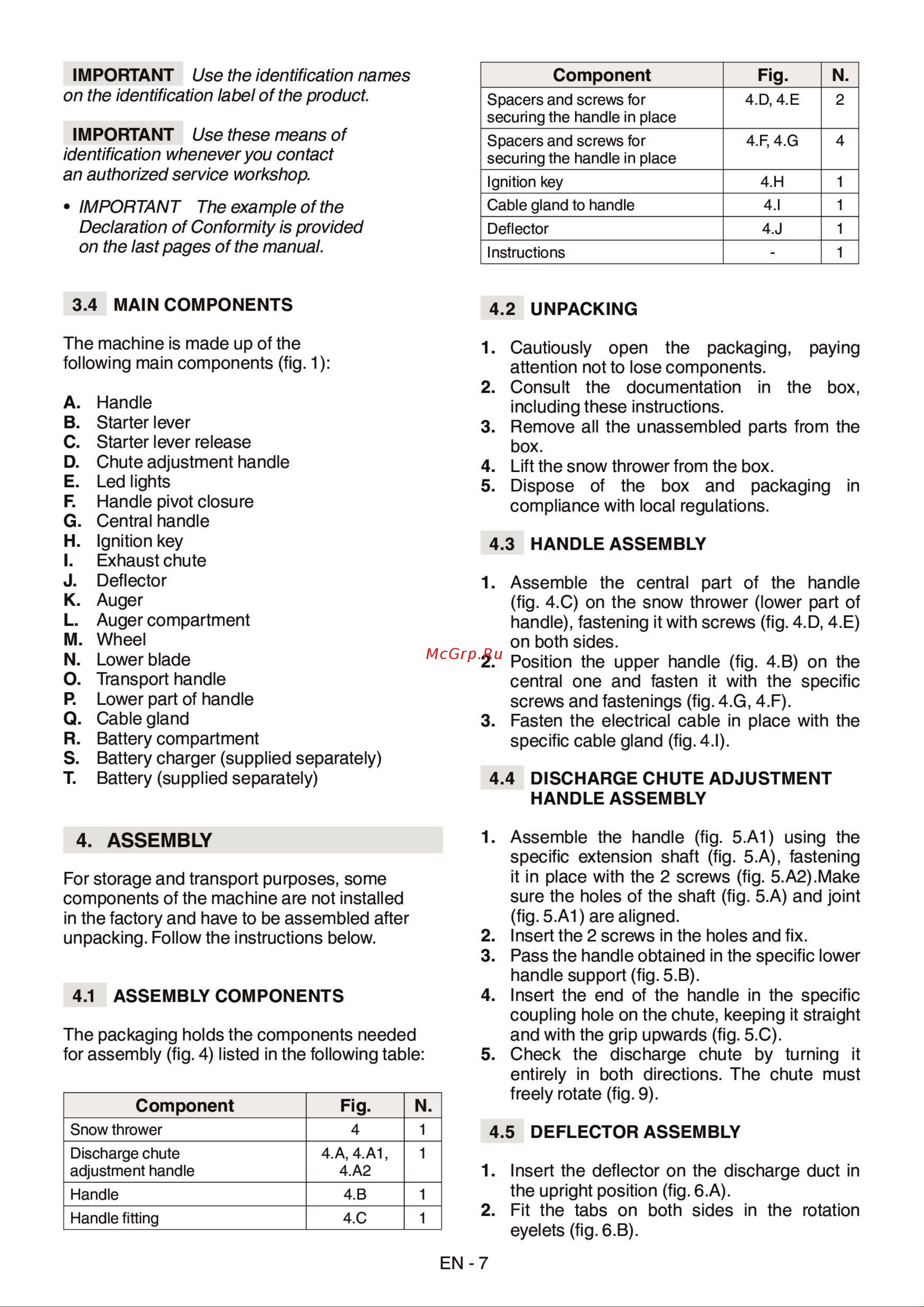

IM PORTANT Use the identification names on the identification label of the product Fig N Spacers and screws for securing the handle in place Component 4 D 4 E 2 IMPORTANT Use these means of identification whenever you contact an authorized service workshop Spacers and screws for securing the handle in place 4 F 4 G 4 Ignition key 4 H 1 IMPORTANT The example of the Declaration of Conformity is provided on the last pages of the manual Cable gland to handle 4 I 1 Deflector 4 J 1 1 Instructions 3 4 MAIN COMPONENTS 4 2 UNPACKING The machine is made up of the following main components fig 1 1 Cautiously open the packaging paying attention not to lose components 2 Consult the documentation in the box including these instructions 3 Remove all the unassembled parts from the box 4 Lift the snow thrower from the box 5 Dispose of the box and packaging in compliance with local regulations A Handle B Starter lever C Starter lever release D Chute adjustment handle E Led lights F Handle pivot closure G Central handle H Ignition key I Exhaust chute J Deflector K Auger L Auger compartment M Wheel N Lower blade O Transport handle P Lower part of handle Q Cable gland R Battery compartment S Battery charger supplied separately T Battery supplied separately 4 3 HANDLE ASSEMBLY 1 Assemble the central part of the handle fig 4 C on the snow thrower lower part of handle fastening it with screws fig 4 D 4 E on both sides 2 Position the upper handle fig 4 B on the central one and fasten it with the specific screws and fastenings fig 4 G 4 F 3 Fasten the electrical cable in place with the specific cable gland fig 4 1 4 4 DISCHARGE CHUTE ADJUSTMENT HANDLE ASSEMBLY 4 ASSEMBLY For storage and transport purposes some components of the machine are not installed in the factory and have to be assembled after unpacking Follow the instructions below 4 1 ASSEMBLY COMPONENTS The packaging holds the components needed for assembly fig 4 listed in the following table Fig N 4 1 4 A 4 A1 4 A2 1 Handle 4 B 1 Handle fitting 4 C 1 Component Snow thrower Discharge chute adjustment handle 1 Assemble the handle fig 5 A1 using the specific extension shaft fig 5 A fastening it in place with the 2 screws fig 5 A2 Make sure the holes of the shaft fig 5 A and joint fig 5 A1 are aligned 2 Insert the 2 screws in the holes and fix 3 Pass the handle obtained in the specific lower handle support fig 5 B 4 Insert the end of the handle in the specific coupling hole on the chute keeping it straight and with the grip upwards fig 5 C 5 Check the discharge chute by turning it entirely in both directions The chute must freely rotate fig 9 4 5 DEFLECTOR ASSEMBLY 1 Insert the deflector on the discharge duct in the upright position fig 6 A 2 Fit the tabs on both sides in the rotation eyelets fig 6 B EN 7
