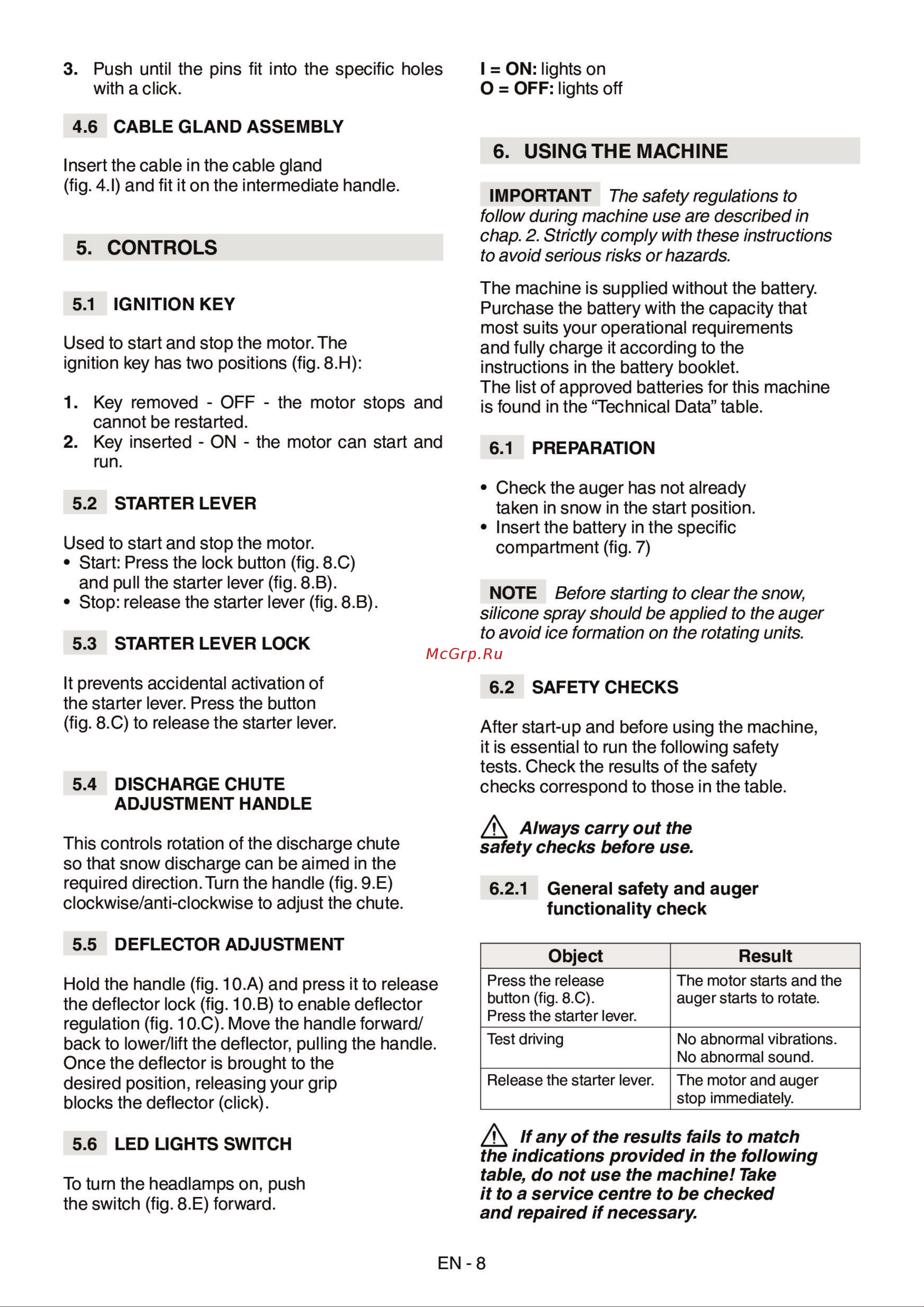

3 Push until the pins fit into the specific holes with a click I ON lights on O OFF lights off 4 6 CABLE GLAND ASSEMBLY Insert the cable in the cable gland fig 4 1 and fit it on the intermediate handle 5 CONTROLS 5 1 IGNITION KEY Used to start and stop the motor The ignition key has two positions fig 8 H 1 Key removed OFF the motor stops and cannot be restarted 2 Key inserted ON the motor can start and run 5 2 STARTER LEVER Used to start and stop the motor Start Press the lock button fig 8 C and pull the starter lever fig 8 B Stop release the starter lever fig 8 B 5 3 STARTER LEVER LOCK It prevents accidental activation of the starter lever Press the button fig 8 C to release the starter lever 5 4 DISCHARGE CHUTE ADJUSTMENT HANDLE This controls rotation of the discharge chute so that snow discharge can be aimed in the required direction Turn the handle fig 9 E clockwise anti clockwise to adjust the chute 6 USING THE MACHINE IM PORTANT The safety regulations to follow during machine use are described in chap 2 Strictly comply with these instructions to avoid serious risks or hazards The machine is supplied without the battery Purchase the battery with the capacity that most suits your operational requirements and fully charge it according to the instructions in the battery booklet The list of approved batteries for this machine is found in the Technical Data table 6 1 Check the auger has not already taken in snow in the start position Insert the battery in the specific compartment fig 7 NOTE Before starting to clear the snow silicone spray should be applied to the auger to avoid ice formation on the rotating units 6 2 SAFETY CHECKS After start up and before using the machine it is essential to run the following safety tests Check the results of the safety checks correspond to those in the table Always carry out the safety checks before use 6 2 1 General safety and auger functionality check 5 5 DEFLECTOR ADJUSTMENT Object Hold the handle fig 10 A and press it to release the deflector lock fig 10 B to enable deflector regulation fig 10 C Move the handle forward back to lower lift the deflector pulling the handle Once the deflector is brought to the desired position releasing your grip blocks the deflector click 5 6 LED LIGHTS SWITCH To turn the headlamps on push the switch fig 8 E forward PREPARATION Result Press the release button fig 8 C Press the starter lever The motor starts and the auger starts to rotate Test driving No abnormal vibrations No abnormal sound Release the starter lever The motor and auger stop immediately If any of the results fails to match the indications provided in the following table do not use the machine Take it to a service centre to be checked and repaired if necessary EN 8
