7. The wheel continues to rotate after the tool is switched
off .
After switching off the machine, do not put it down until
the depressed center wheel has come to a complete
stop. Apart from avoiding serious accidents, this
precaution will reduce the amount of dust and swarf
sucked into the machine.
8. When the machine is not use, the power source should
be disconnected.
9. Be sure to switch OFF and disconnect the attachment
plug from the receptacle to avoid a serious accident
before the depressed center wheel is assembling and
disassembling.
10. RCD
The use of a residual current device with a rated residual
current of 30 mA or less at all times is recommended.
11. Do not operate from a direct current power source,
booster or any other type of transformer. Doing so may
not only cause damage to the grinder, but may lead to
accidents.
12. Some mobile generators may not be usable with the
machine.

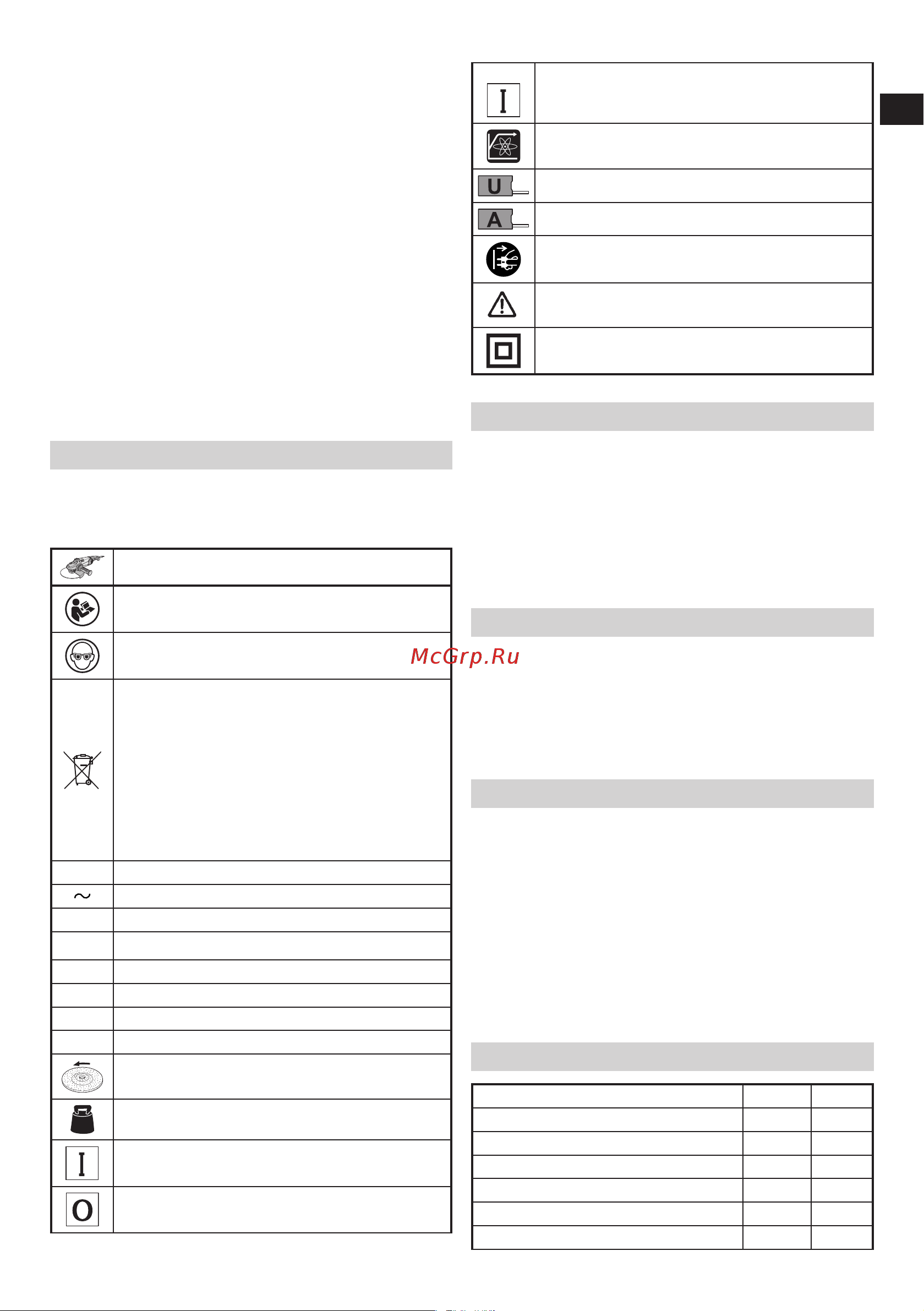

SYMBOLS
WARNING
The following show symbols used for the machine.
Be sure that you understand their meaning before
use.
G23UDY2 : Disc Grinder
To reduce the risk of injury, user must read
instruction manual.
Always wear eye protection.
Only for EU countries
Do not dispose of electric tools together with
household waste material!
In observance of European Directive 2002/96/
EC on waste electrical and electronic equipment
and its implementation in accordance with
national law, electric tools that have reached
the end of their life must be collected separately
and returned to an environmentally compatible
recycling facility.
V Rated voltage
Alternating current
P
Power input
n
Rated speed
min
-1
Revolution or reciprocations per minute
D Wheel outer diameter
d Wheel hole diameter
t Wheel thickness
Peripheral speed
kg
Weight
(According to EPTA-Procedure 01/2003)
Switching ON
Switching OFF
Lock
Switch locks to the “ON” position.
Soft-start
Usual carbon brush
Auto-stop carbon brush
Disconnect mains plug from electrical outlet
Warning
Class II tool
STANDARD ACCESSORIES
In addition to the main unit (1 unit), the package
contains the accessories listed in the below.
○ Wrench .........................................................................1
○ Side handle ...................................................................1
○ Hexagonal bar wrench ..................................................1
Depressed center wheels are not provided as standard
accessories.
Standard accessories are subject to change without notice.
APPLICATIONS
○ Removal of casting fi n and fi nishing of various types of
steel, bronze and aluminum materials and castings.
○ Grinding of welded sections or sections cut by means of
a cutting torch.
○ Grinding of synthetic resins, slate, brick, marble, etc.
○ Cutting of synthetic concrete, stone, brick, marble, and
similar materials.
SPECIFICATIONS
The specifi cations of this machine are listed in the Table on
page 21.
○ Soft-start
○ 0 Voltage Re-start Protection
The 0 voltage restart protection feature prevents the
power tool from restarting after the power has been
temporarily cut off during operation.
NOTE
Due to HiKOKI’s continuing program of research and
development, the specifi cations herein are subject to
change without prior notice.
MOUNTING AND OPERATION
Action Figure Page
Fitting and adjusting the wheel guard 1 22
Fixing the side handle 2 22
Assembling depressed center wheel 3 22
Assembling cutting wheel 4 22
Assembling diamond wheel 5 23
Switch operation* 6 23
