CAUTION:

• Always be sure that the blade will move down to bevel

direction during a bevel cut. Keep hands out of path of

saw blade.

• During a bevel cut, it may create a condition whereby

the piece cut off will come to rest against the side of the

blade. If the blade is raised while the blade is still rotat-

ing, this piece may be caught by the blade, causing

fragments to be scattered which is dangerous. The

blade should be raised ONLY after the blade has come

to a complete stop.

• When pressing the handle down, apply pressure paral-

lel to the blade. If the pressure is not parallel to the

blade during a cut, the angle of the blade might be

shifted and the precision of the cut will be impaired.

4. Compound cutting

Compound cutting is the process in which a bevel angle

is made at the same time in which a miter angle is being

cut on a workpiece. Compound cutting can be performed

at angle shown in the table.

When performing compound cutting, refer to “Press cut-

ting”, “Miter cutting” and “Bevel cut” explanations.

5. Cutting aluminum extrusion (Fig. 41)

When securing aluminum extrusions, use spacer blocks

or pieces of scrap as shown in the figure to prevent defor-

mation of the aluminum. Use a cutting lubricant when

cutting the aluminum extrusion to prevent buildup of the

aluminum material on the blade.

CAUTION:

• Never attempt to cut thick or round aluminum extru-

sions. Thick aluminum extrusions may come loose dur-

ing operation and round aluminum extrusions cannot

be secured firmly with this tool.

• Never cut aluminum in the table saw mode (bench

mode).

6. Wood facing

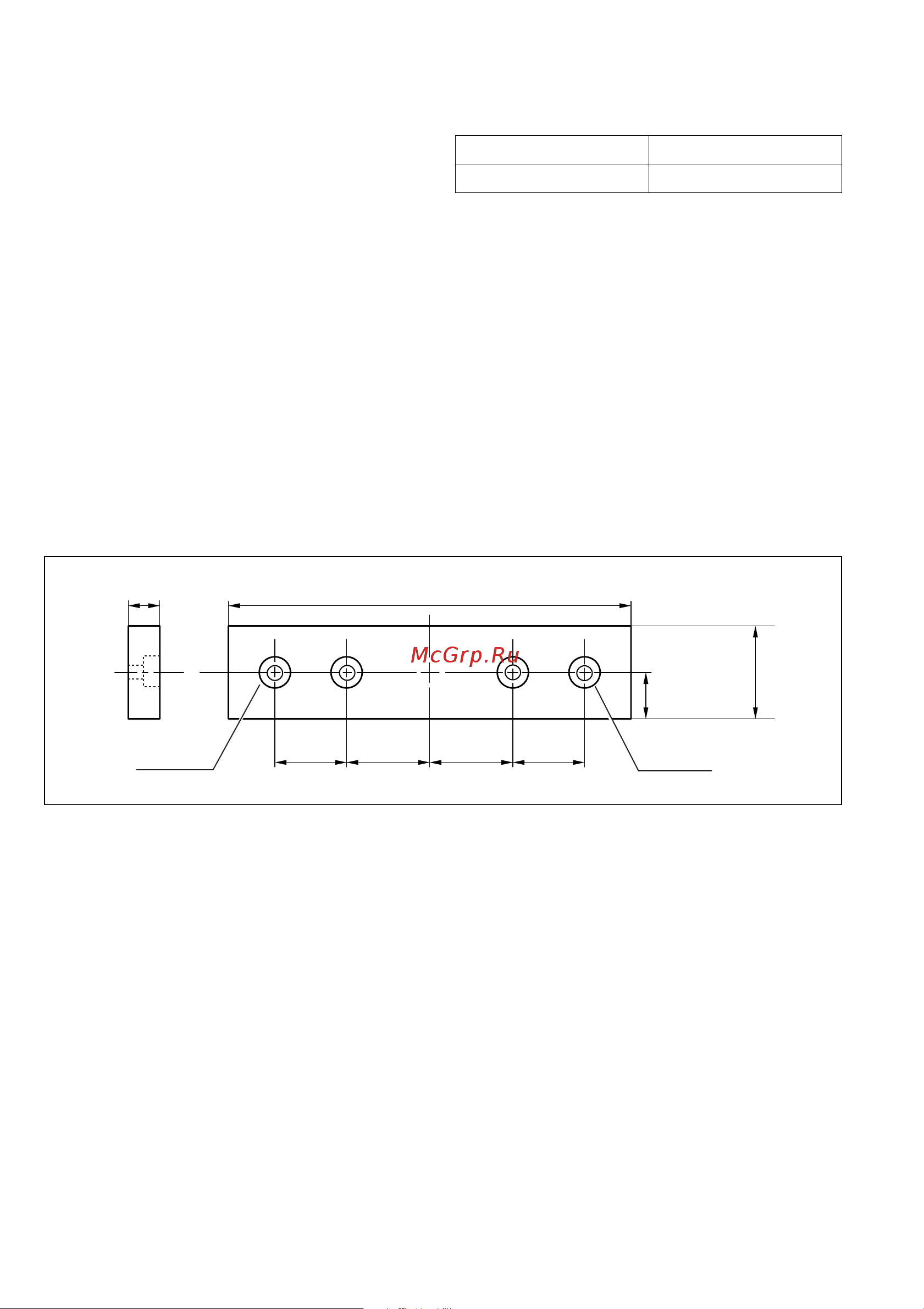

Use of wood facing helps to assure splinter-free cuts in workpieces. Attach a wood facing to the guide fence using the

holes in the guide fence.

See the figure concerning the dimensions for a suggested wood facing.

CAUTION:

• Use straight wood of even thickness as the wood facing.

• Use screws to attach the wood facing to the guide fence. The screws should be installed so that the screw heads are

below the surface of the wood facing.

• When the wood facing is attached, do not turn the turn base with the handle lowered. The blade and/or the wood fac-

ing will be damaged.

7. Cutting repetitive lengths (Fig. 42)

When cutting several pieces of stock to the same length,

ranging from 240 mm to 400 mm, use of the set plate will

facilitate more efficient operation. Install the set plate on

the holder as shown in the figure.

Align the cutting line on your workpiece with either the

left or right side of the groove in the kerf board, and while

holding the workpiece from moving, move the set plate

flush against the end of the workpiece. Then secure the

set plate with the screw. When the set plate is not used,

loosen the screw and turn the set plate out of the way.

NOTE:

• Use of the holder-rod assembly (optional accessory)

allows cutting repetitive lengths up to 2,200 mm

approximately.

Bevel angle Miter angle

45° Left and Right 0° – 45°

90 mm 107 mm 107 mm 90 mm

25 mm

90 mm

Over 460 mmOver 10 mm

Hole
