Abrasive cutting disc
HSS blade
TCT blade

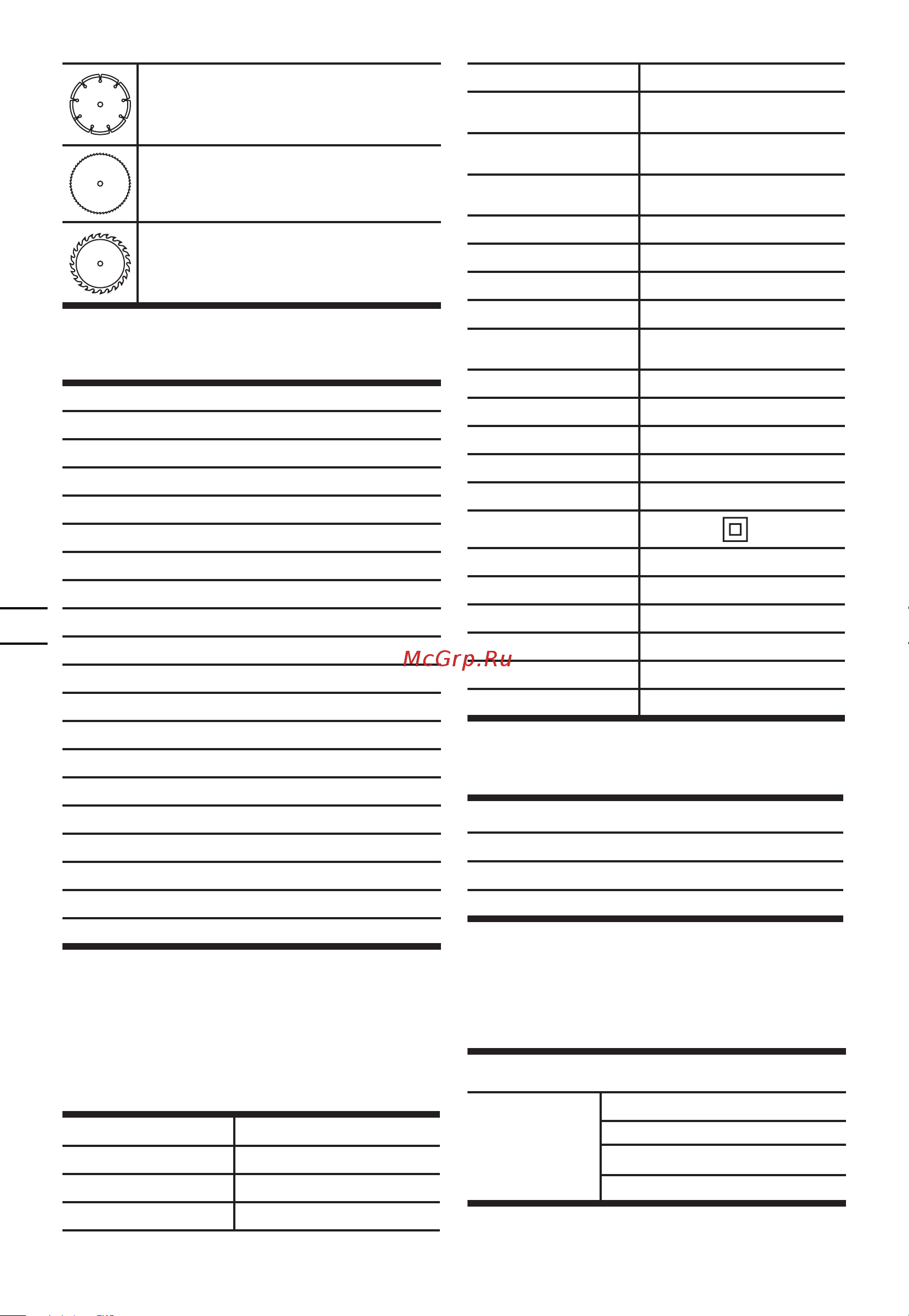

COMPONENT LIST
1.
LOCK OFF BUTTON
2.
SOFT GRIP HANDLE
3.
HEX KEY
4.
ON/OFF SWITCH
5. SPINDLE LOCK BUTTON
6. LOWER BLADE GUARD
7. LOWER GUARD LEVER
8. FIXED UPPER GUARD
9. DUST EXTRACTION OUTLET
10. VACUUM ADAPTER
11. DEPTH ADJUSTMENT LEVER
12. BASE PLATE
13. SAW BLADE (SEE FIG. A)
14. INNER FLANGE (SEE FIG. A)
15. BLADE BOLT (SEE FIG. A)
16. PARALLEL GUIDE
17. PARALLEL GUIDE CLAMPING FIXTURE
18. BEVEL ADJUSTMENT LEVER
19. OUTER FLANGE (SEE FIG. A)
20. BLADE ALIGNMENT INDICATOR
Not all the accessories illustrated or described are
included in standard delivery.
TECHNICAL DATA
Type KU436P (4-designation of machinery,
representative of Saw)
KU436P
Voltage 220 V ~ 50 Hz
Rated power 710 W
No load (rated) speed 3700 /min
Blade size
TCT blade
120 mm X 1.2 mm X 9.5 mm
X 24T
HSS blade
115 mm X 1.2 mm X 9.5 mm
X 60T
Abrasive cutting disc
115 mm X 1.6 mm X 9.5 mm
X 60G
Cutting capacity
Cutting Depth at 90° 46 mm
Cutting Depth at 45° 30 mm
Arbor Size 9.5 mm
Recommended maximum
material thickness
Wood 46 mm
Aluminum 2.5 mm
PVC pipe (diameter) 46 mm
Tile 12 mm
Sheet steel 0.5 mm
Protection class
/ll
Bare tool weight 2.3 kg
Spindle thread size
M6
Saw blade thickness
TCT blade
0.8 mm
HSS blade
0.65 mm
Abrasive cutting disc
1 mm
NOISE INFORMATION
A weighted sound pressure L
pA
=77.3 dB (A)
A weighted sound power L
wA
=88.3dB(A)
K
PA
& K
WA
3.0dB(A)
Wear ear protection.
VIBRATION INFORMATION
(CUTTING WOOD/
CUTTING MENTAL)
Vibration total values (triax vector sum) determined
according to EN 62841:
Vibration emission
value:
Cutting wood: a
h,W
= 6.82m/s
2
Uncertainty K = 1.5m/s²
Cutting metal: a
h,M
= 5.63m/s
2
Uncertainty K = 1.5m/s²
The declared vibration total value and the declared noise
emission value have been measured in accordance with a
