Pedrollo TS2 - MK 3/6 [15/20] Application limits

0 10 20 30 40 50 60 70 80 90 100

100

125

150

0 5 10 15 20 25

0 5 10 15 20

0 1 2 3 4 5 6

US g.p.m.

Imp g.p.m.

feet

l/min

m³/h

TISSEL 100-2CP 25/130

APPLICATION LIMITS

• Manometric suction lift up to 7 m

• Liquid temperature between -0 °C and +55 °C

• Ambient temperature up to +40 °C

• Max. working pressure 6 bar

• Continuous service S1

CLEAN WATER

DOMESTIC USE

CIVIL USE

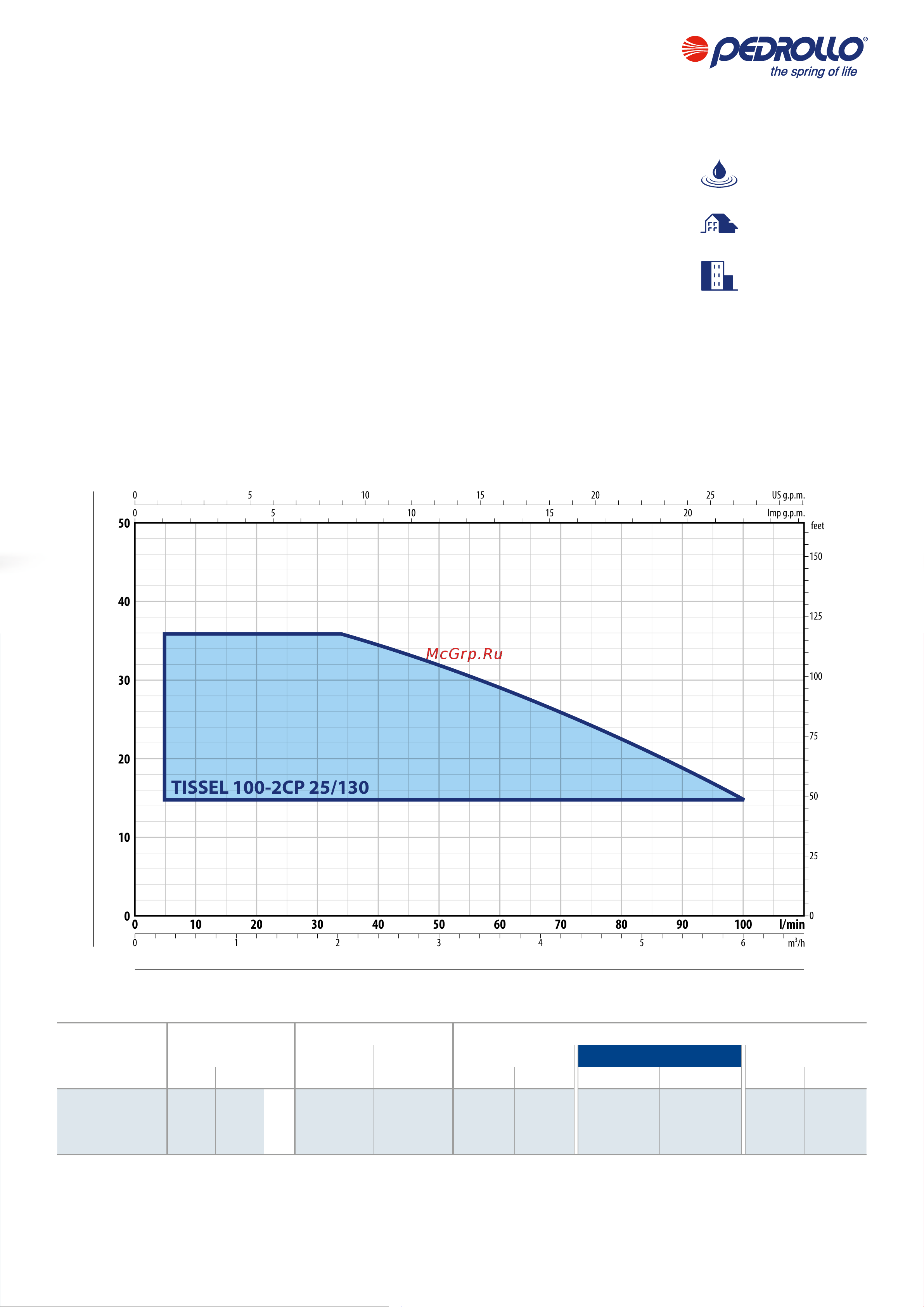

PERFORMANCE RANGE

Q = Flow rate H = Total manometric head Tolerance of characteristic curves in compliance with EN ISO 9906 Grade 3B.



Three phase motor eciency class (IEC 60034-30-1)

MODEL POWER MAX PERFORMANCES PERFORMANCES (ADJUSTABLE SET POINT)

P2 Q H Min. Set Point Set Point Stand. Setting Max. Set Point

Single-phase kW HP



l/min metres bar l/min bar l/min bar l/min

TS1-2CP 25/130 0.75 1 IE3 20 – 100 36 – 15 1.5 5 – 100 2.5 5 – 67 3.5 5 – 34

Flow rate Q

Head H (metres)
