Pedrollo TS2 - MK 3/6 [19/20] Application limits
Макгруп McGrp.ru
Задайте вопрос
Зарегистрироваться

Pedrollo TS2 - MK 3/6 [19/20] Application limits

Pedrollo TS2 - MK 3/6 [19/20] Application limits
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
0
10
20
30
40
50
60
70
80
0
50
100
150
200
250
0 5 10 15 20 25 30 35 40
0 5 10 15 20 25 30 35
0 1 2 3 4 5 6 7 8 9
US g.p.m.
Imp g.p.m.
feet
l/min
m³/h
T
S
1
-
2
C
P
2
5
/
1
4
B
T
S
1
-
2
C
P
2
5
/
1
4
A
T
S
1
-
2
C
P
2
5
/
1
6
A
T
S
1
-
2
C
P
2
5
/
1
6
B
T
S
1
-
2
C
P
2
5
/
1
6
C
Q = Flow rate H = Total manometric head Tolerance of characteristic curves in compliance with EN ISO 9906 Grade 3B.
 
Three phase motor eciency class (IEC 60034-30-1)
MODEL POWER MAX PERFORMANCES PERFORMANCES (ADJUSTABLE SET POINT)
P2 Q H Min. Set Point Set Point Stand. Setting Max. Set Point
Single-phase kW HP
l/min metres bar l/min bar l/min bar l/min
TS1-2CP 25/14B 1.1 1.5
IE3
5 – 100 48 – 22 1.90 5 – 92 3.60 5 – 70 4.70 5 – 35
TS1-2CP 25/14A 1.5 2 5 – 100 61 – 32 2.40 5 – 85 4.80 5 – 70 6.00 5 – 35
TS1-2CP 25/16C 1.1 1.5 5 – 120 41 – 24 1.70 5 – 100 3.20 5 – 85 4.00 5 – 52
TS1-2CP 25/16B 1.5 2 5 – 140 52 – 30 2.00 5 – 110 4.10 5 – 100 5.10 5 – 52
TS1-2CP 25/16A 2.2 3 5 – 160 62 – 32 2.40 5 – 135 4.80 5 – 115 6.10 5 – 52
APPLICATION LIMITS
• Manometric suction lift up to 7 m
• Liquid temperature between -0 °C and +55 °C
• Ambient temperature up to +40 °C
• Max. working pressure 9 bar
• Continuous service S1
CLEAN WATER
DOMESTIC USE
CIVIL USE

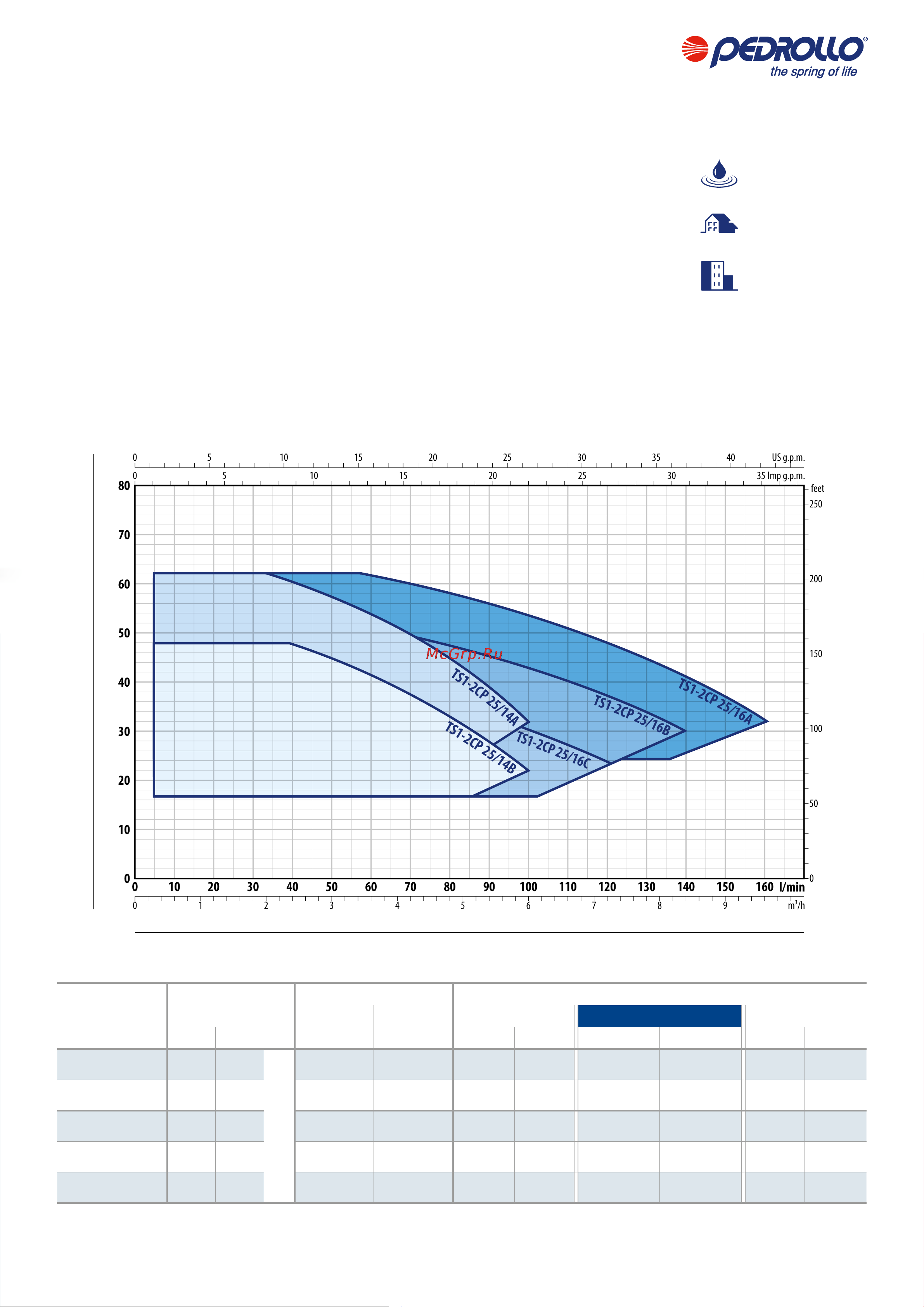

PERFORMANCE RANGE
Flow rate Q
4
Head H (metres)
4
