Pedrollo TS2 - MK 3/6 [7/20] Performance range

0 10 20 30 40 50 60 70 80 90 100 110 120 130

100

125

150

175

0 5 10 15 20 25 30 35

0 5 10 15 20 25

0 1 2 3 4 5 6 7 8

US g.p.m.

Imp g.p.m.

feet

l/min

m³/h

TISSEL 100-4CR 100

APPLICATION LIMITS

• Manometric suction lift up to 7 m

• Liquid temperature between -0 °C and +40 °C

• Ambient temperature up to +40 °C

• Max. working pressure 7 bar

• Continuous service S1

CLEAN WATER

DOMESTIC USE

CIVIL USE

Flow rate Q

Head H (metres)

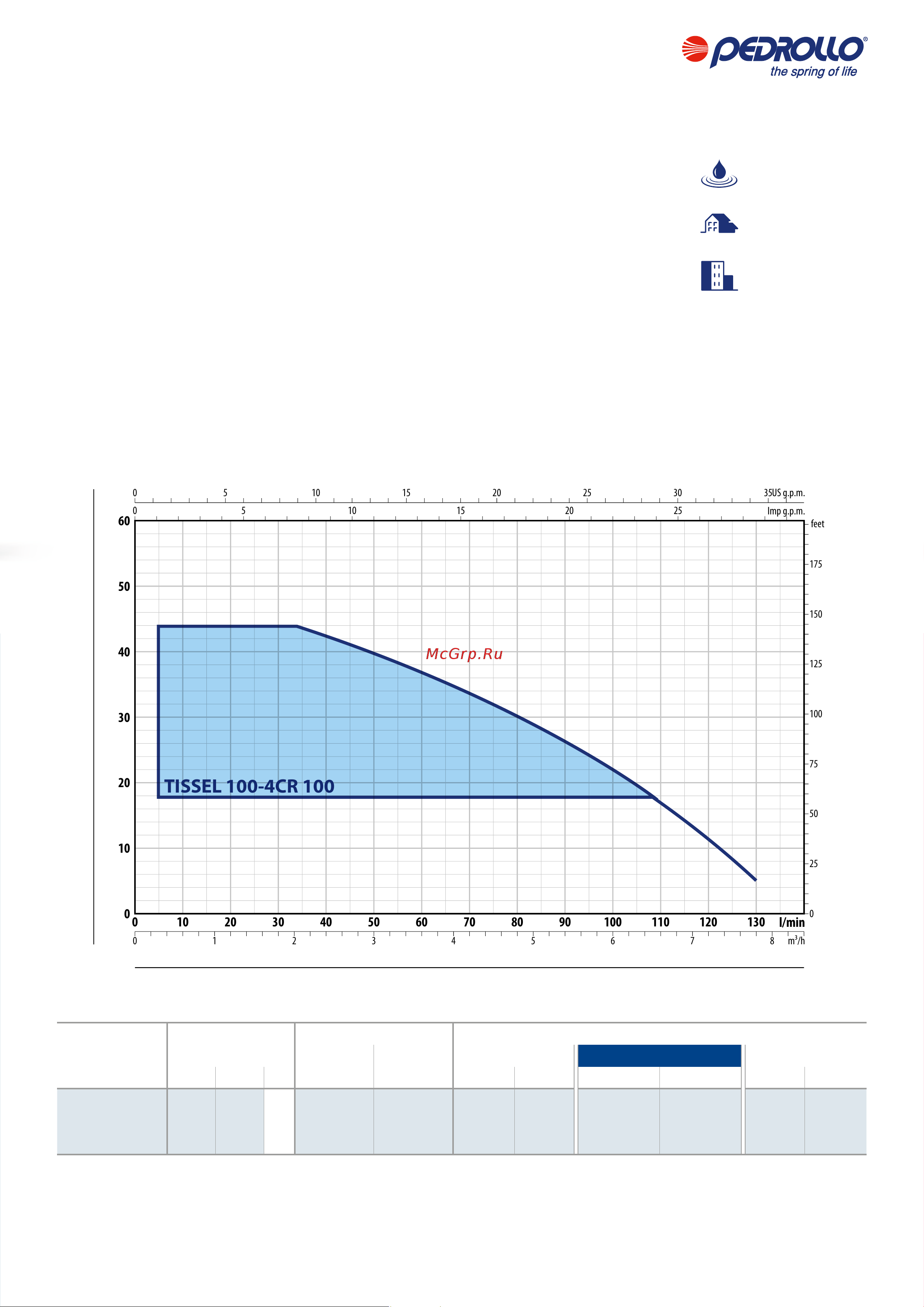

PERFORMANCE RANGE

Q = Flow rate H = Total manometric head Tolerance of characteristic curves in compliance with EN ISO 9906 Grade 3B.



Three phase motor eciency class (IEC 60034-30-1)

MODEL POWER MAX PERFORMANCES PERFORMANCES (ADJUSTABLE SET POINT)

P2 Q H Min. Set Point Set Point Stand. Setting Max. Set Point

Single-phase kW HP



l/min metres bar l/min bar l/min bar l/min

TS1-4CR 100 0.75 1.1 IE3 5 – 130 44 – 5 1.8 5 – 107 3.0 5 – 80 4.3 5 – 33
