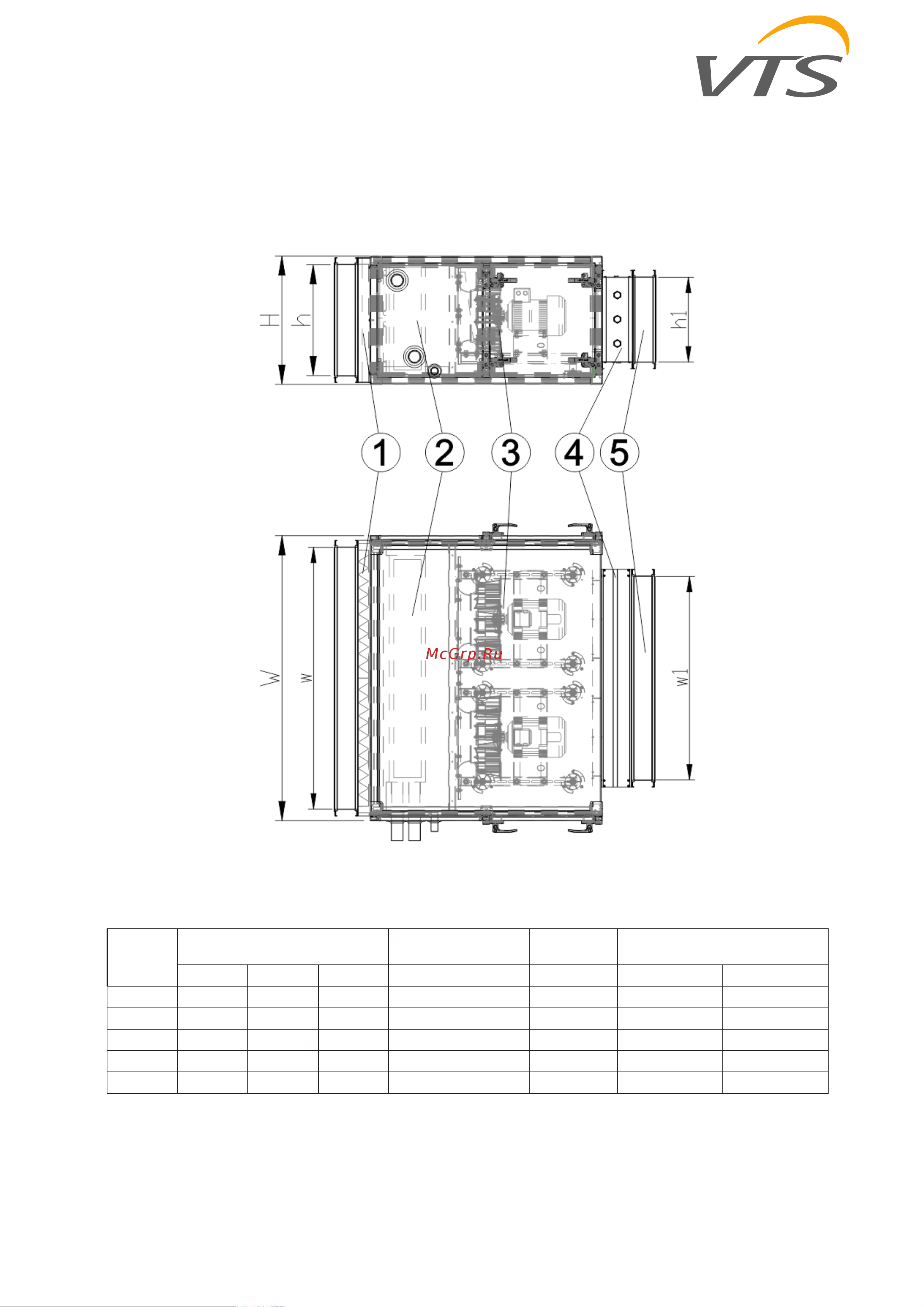

Fig.1. Example of suspended AHUs type SVS 35-100
Tab.1 Dimensions of AHUs type SVS 35-100
AHU type
AHU external sizes [mm]
AHU mass [kg]
Air damper
size [mm]
Flexible connection size [mm]
Length
Wide
Height
4R coil
6R coil
-
inlet (w x h)
outlet (w1 x h1)
SVS-35
1 120
1 160
530
98
106
342 x 264
1100 x 470
342 x 264
SVS-50
1 120
1 300
595
114
124
365 x 275
1240 x 535
365 x 275
SVS-70
1 120
2 000
530
166
181
1294 x 264
1940 x 470
1294 x 264
SVS-85
1 120
2 000
655
187
205
1270 x 275
1940 x 595
1270 x 275
SVS-100
1 120
2 000
655
200
220
1425 x 275
2140 x 595
1425 x 275
This type of suspended AHUs is available only in the right-hand (RH) configuration (fig.2 ).
