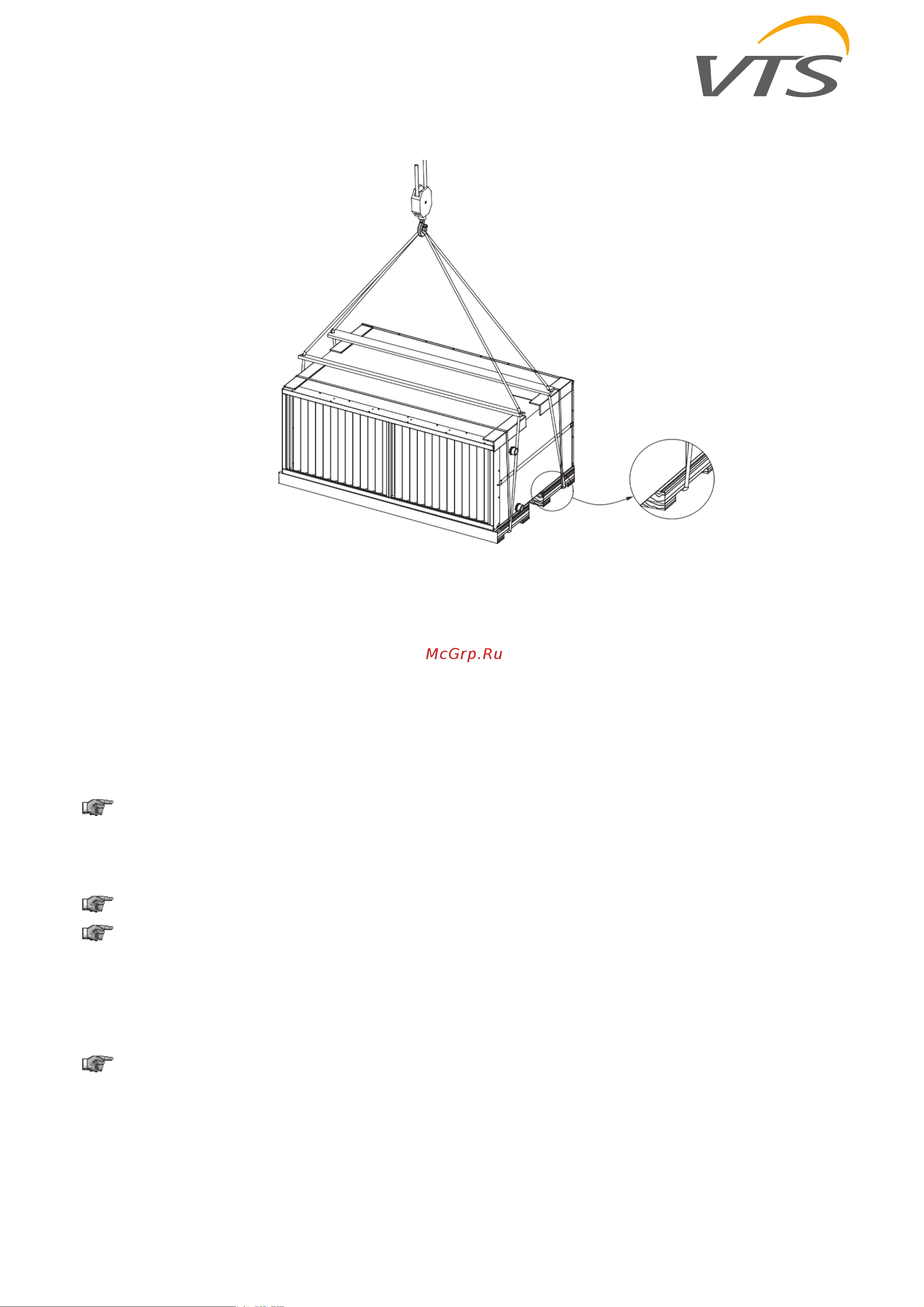

Fig. 4 Transport with the use of a crane
The units have to be transported in their working position (horizontally) and they should not be stored one on the
other.
The units and their optional components should be stored in the following conditions:
- relative humidity in the room: φ < 80 % at t (temperature) = 20ºC
- ambient temperature: -40ºC < t < +60ºC
- the devices should be out of the reach of any caustic dust, gas or steam or any other chemical substances
which may have pro-corrosive influence on the unit and its components.
While storing the unit, its plastic packaging must be unsealed.
Any damages caused by the improper transportation, unloading or storage are not covered by the
guarantee and any claims laid by way of the aforementioned issues will not be examined by VTS.
4. MOUNTING, CONNECTION TO UNIT-RELATED SYSTEMS
Connecting supplied SVS 35-100 units to the installation falls within the competence of the Client.
By default the SVS 35-100 AHU should be suspended in horizontal position.
4.1. Suspending the VENTUS S-Type unit.
Suspension of an AHU as a part of ventilation ducts is carried out using additional bars (out of VTS delivery)
(fig.6). Application of the screwed rods facilitates and speeds up the suspension and leveling of AHU (the
screwed rods are not included).
The AHU should be levelled according to the two axis double spirit level, fixed on the bottom of the unit
near the syphon.
It is recommended to use vibro absorber to suspend the units to reduce the vibrations transmitted to the
supporting structure.
