31
EN
4. ELEMENTS OF AUTOMATICS.
Electrical connections can be carried out only by qualied electricians, according to the binding regulations of:
● industrial safety;
● sssembly instructions;
● technical documentation for each individual element of automatics.
IMPORTANT! Study the original documentation delivered together with the elements of automatics, prior to the commencing of assembly and connecting of the system.

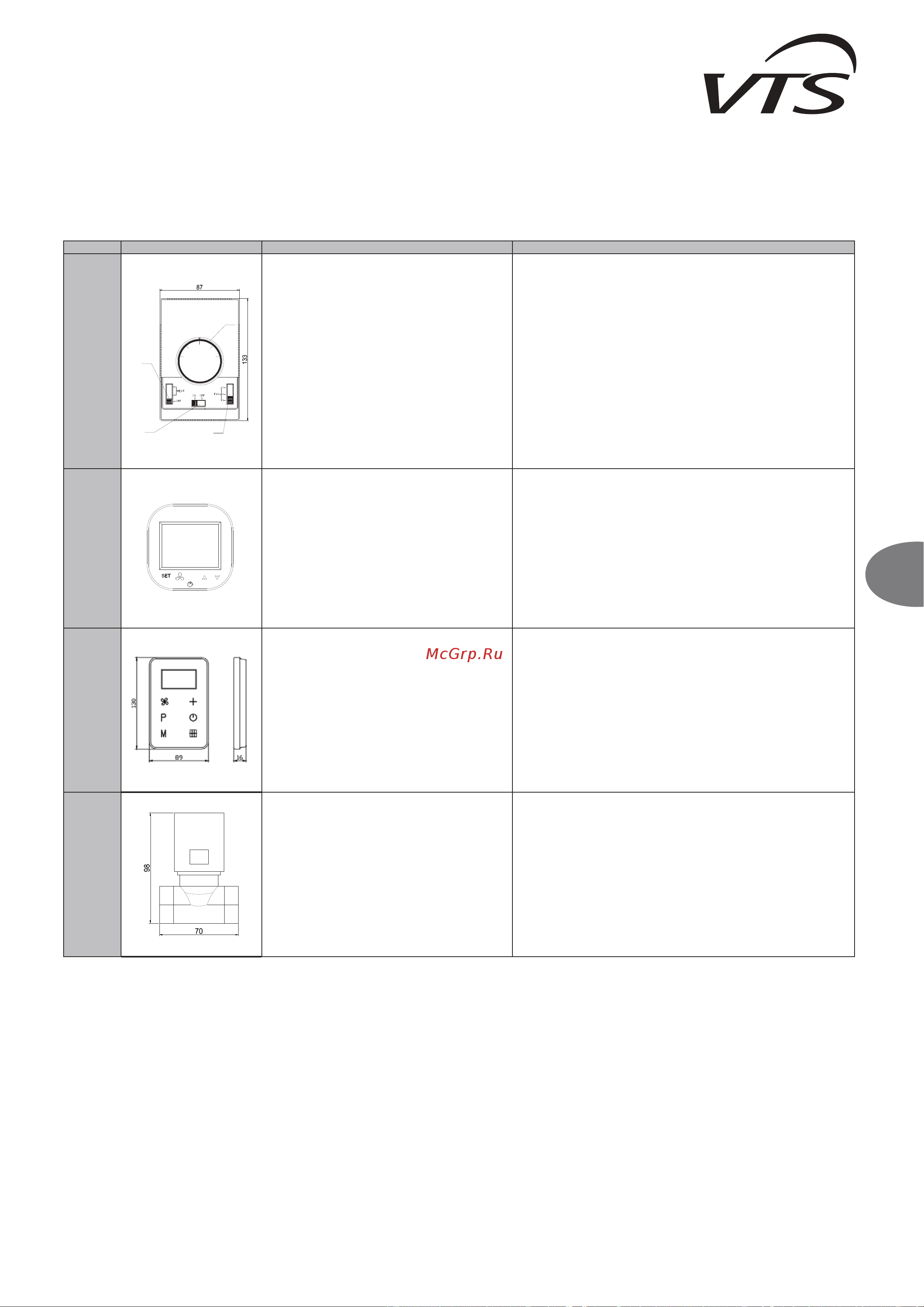

MODEL DIAGRAM TECHNICAL DATA COMMENTS
WALL-MOUNTED DX CONTROLLER
10
25
15
20
30
1
2
3
4
WALL-MOUNTED WING/VOLCANO CONTROLLER
● Supply voltage: 220-240 VAC
● Permissible initial current: 6(3A)
● Range of regulation: 10-30°C
● Accuracy of regulation: +/- 1°C
● Level of protection: IP 30
● Assembly method: on plastered walls
● Parameters of working environment: from -10 to +50°C
● Used to control the operation of all types of WING curtains.
– 1 - heating switch, 2 - main switch, 3 - thermostat crank, 4 - fan speed
switch. The heating switch for the water curtain controls the work of an
actuator installed on the valve, whereas for an electrical curtain - engages
electrical heaters. An in-built thermostat automatically disables heating or
the entire curtain, depending on the temperature set using the crank:
– jumper "2-5" - control of fan work and heating, depending on thermostat
setting; in this solution, the thermostat controls the operation of the entire
device
– jumper "4-5" - control of fan work, independently from thermostat setting
One wall-mounted WING/VOLCANO controller can support the maximum of 1
curtain.
● The maximum length of the conductor, from the curtain to the programming
device, is 100 m.
● It is recommended to make a connection using a conductor of the min. size 5 x
1 mm² or 6 x 1mm² depend on the option of connection (see the schemes)
● The drawings with the elements of automatics contain only visualisations of
sample products.
● The controller does not constitute an integral part of the curtain. It is an
optional device, which may be replaced with any programming device or
switch that conforms to the 60335 standard.
Controller HMI WING EC
VTS: 1-4-2801-0155
HMI WING EC
•
Device operation: Touch buttons
•
Power supply: 230 V AC
•
Temperature measurement: -10 °C ... +99 °C ; NTC10K
•
Outputs:
- 1 analog output 0-10V (8 bit, Imax = 20 mA)
- 2 relays outputs (250 VAC, AC1 500 VA dla 230 VAC)
•
Communication: Modbus RTU
•
Parameters of working environment: temperature:
0 - 60 °C, humidity: 10 - 90%, without condensation
•
Display: blue backlight
•
Dimensions: 86 mm x 86 mm x 17 mm
•
Protection level: IP20
•
used for control all types of WING EC curtains
•
touch control panel
•
the main on / off switch (ON / OFF)
•
preset three-stage adjustable fan speed of the EC motor
•
built-in thermostat with possibility weekly programing
•
continuous mode
•
function of heating and ventilation
•
possibility of using a door sensor
•
three-stage adjustable of heating power
•
RS 485 with ModbusRTU
•
Suggested cross sections of electrical cables:
- L, N: 2x1 mm²
- H1, H2: 2x1 mm²
- AO, GND: 2x0,5 mm² LIYCY
- Door sensor: 2x0,5 mm² LIYCY
- RS 485: 2x0,75 mm² LIYCY
WALL-MOUNTED CONTROL PANEL
HMI-WING EC
HMI-WING EC
•
Device operation: Capacitive touch buttons
•
Power supply: 230 V AC
•
Temperature measurement: -10 °C ... +99 °C ; NTC10K
•
Outputs:
- 1 analog output 0-10V (8 bit, Imax = 20 mA)
- 2 relays outputs (250 VAC, AC1 500 VA dla 230 VAC)
•
Inputs: 1 digital input type “dry contact”, Imax = 20 mA
•
Communication: Modbus RTU
•
Parameters of working environment: temperature:
0 - 60 °C, humidity: 10 - 90%, without condensation
•
used for control all types of WING EC curtains
•
touch control panel
•
the main on / off switch (ON / OFF)
•
three-stage adjustable fan speed of the EC motor
•
built-in thermostat with possibility weekly programing
•
continuous mode
•
function of heating and ventilation
•
obsługa czujnika drzwiowego
•
two-stage adjustable of heating power
•
RS 485 with ModbusRTU
•
Suggested cross sections of electrical cables::
- L, N: 2x1 mm²
- H1, H2: 2x1 mm²
- AO, GND: 2x0,5 mm² LIYCY
- Door sensor: 2x0,5 mm² LIYCY
- RS 485: 3x0,75 mm² LIYCY
TWO-WAY VALVE WITH ACTUATOR
TWO-WAY VALVE
● Terminal diameter: 3/4”
● Mode of operation: two-way ON/OFF
● Maximum differential pressure: 90kPa
● Pressure class: PN 16
● Kvs ow ratio: 4.5 m³/h
● Maximum temperature of heating medium: 105°C
● Parameters of working environment: from 0 to 60°C
VALVE ACTUATOR
● Power consumption: 1 W
● Supply voltage: 230VAC +/-10%
● Closing/opening time: 3/3 min
● Position without power: closed
● Level of protection: IP54
● Parameters of working environment: from 0 to 60°C
● It is recommended to install a two-way valve on the return pipeline.
● The drawings with the elements of automatics contain only visualisations of
sample products.
● It is recommended to connect the supply, using a conductor of the min. size
2x0.75 mm
²
.
● The drawings with the elements of automatics contain only visualisations of
sample products.
IMPORTANT! If required, the conductors that belong to additional elements of control automatics (thermostat, door switch, wall-mounted controller) should be installed in separate cable
channels, out-of-parallel to the supply conductors.
5. START-UP, OPERATION, MAINTENANCE
5.1. START-UP/PUTTING INTO OPERATION
● Prior to the commencing of any installation or maintenance work, disconnect power supply and secure it against unintentional reactivation.
● It is recommended to use lters in the hydraulic system. It is recommended to clean/rinse the system, draining a few litres of water, prior to the connecting of hydraulic conduits (the supply conduits,
in particular).
● It is advised to use vent valves in the highest point of the system.
● It is recommended to install shut-off valves directly after the device, should the disassembly of the device be necessary.
● All protective equipment is to be installed before the pressure increases, according to maximum the permissible pressure rating of 1.6MPa.
● Hydraulic connection should be free of any stresses and loads.
● Check the correctness of hydraulic connections (leak-tightness of the vent, collecting pipes, correctness of ttings installation), prior to the initial start-up of the device.
● It is recommended to check the correctness of electrical connections (of automatics, power supply), prior to the initial start-up of the device. It is advised to use an additional, external residual-
current protection.
IMPORTANT! All connections should be carried out, according to this technical documentation and the documentation delivered with automation equipment.
