Page 5
Rev . 3 - 1 2/ 03 / 201 9
SL 140 NEW - 2014
Ref. 22* - Ice Cubes Slide
17 g. (Standard) D12017
14 g. D12039
Kind of Cube Code
Ref. Spare Description Code
2 Sprayer D20002
3* Sprayers Bar Assembly Vedi Tabella
4* Overflow Cap 10305
5* Overflow Pipe 10133
6* OR Gasket for Overflow Pipe 20233
7 Overflow Pipe Nipple 10471
8 Silicone Gasket 13219
9 Gasket for Pump Suction/Delivery Pipes 13220
10 Insulated Pump Suction/Delivery Fitting C10653
11 Insulated Pump Suction Pipe C13175500
12 Insulated Pump Delivery Pipe C13175500
13 Semirigid Polyethylene Gasket 13007
14 Bin Discharge Nut 10096
15 Water Outlet Nipple 10472
16* Water Supply Pipe to the Evaporator C13125
17 Drain Pump Pressure Switch C231230
18 Drain Pump RC231225
19 Bin Discharge-Drain Pump Connection C13175190
20 Bulbe-holder Pipe 20521
21 Complete Basin Assembly C11176
22* Ice Cubes Slide Vedi Tabella
23 Rod with Flags 10775
24 Flags ABS Support 10760
25 Inner Basin 10034
26 Pump Suction Filter 20005
27 Sprayers Feeding Pipe 13005
28 Fittings Locking Ring 10654
29* Overflow Pipe 13109
Common Parts
Ref. 3* - Sprayers Bar Assembly
17 g. (Standard) C20058
14 g. C20190
Kind of Cube Code

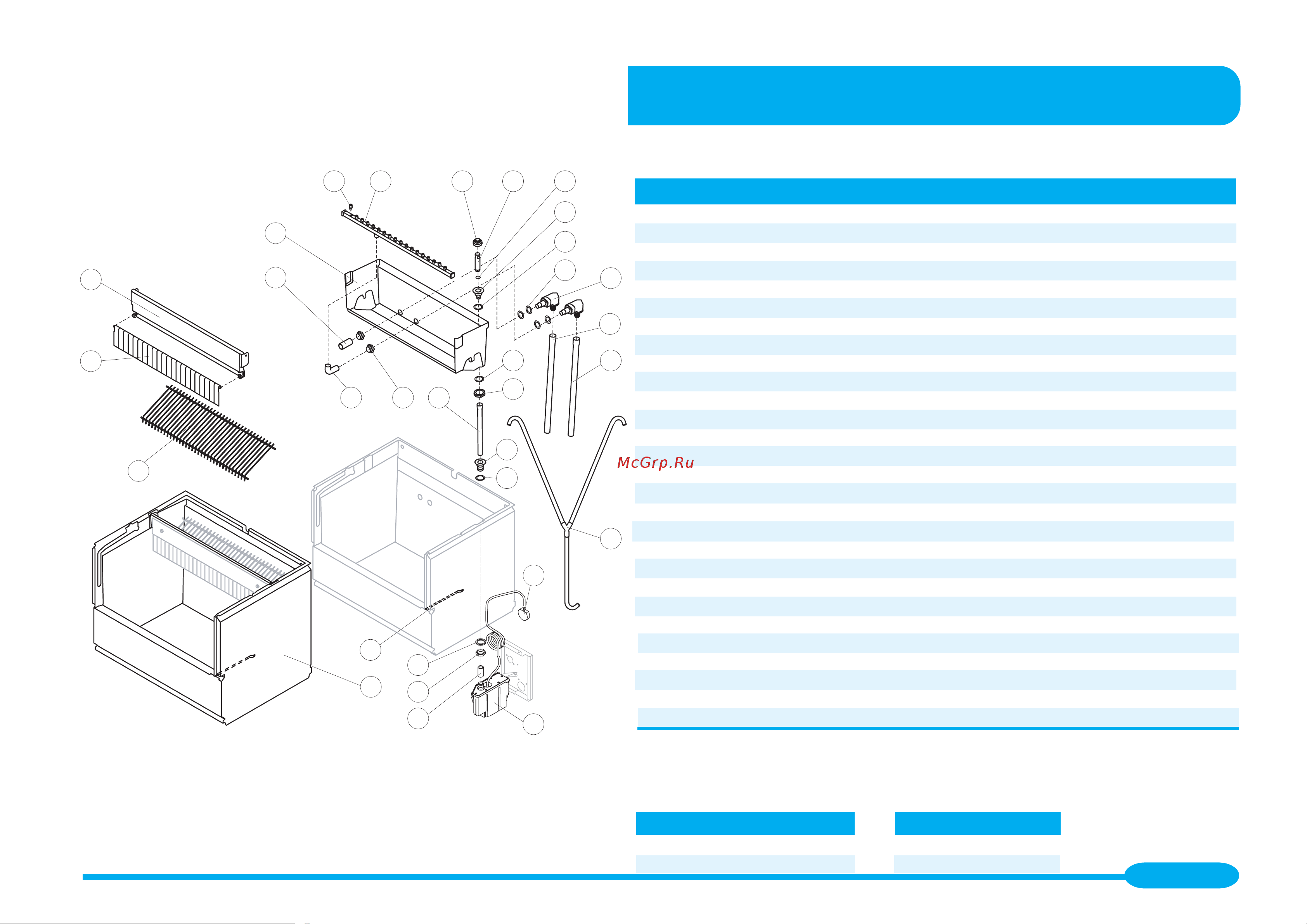

HYDRAULIC CIRCUIT
vSL 140A DP
29
29
12
12
28
28
27
27
22
22
4 5 6
21
21
7
8
9
10
10
13
13
14
14
15
15
16
16
20
20
25
25
26
26
2 3
8
11
11
23
23
24
24
17
17
18
18
19
19
14
14
13
13
