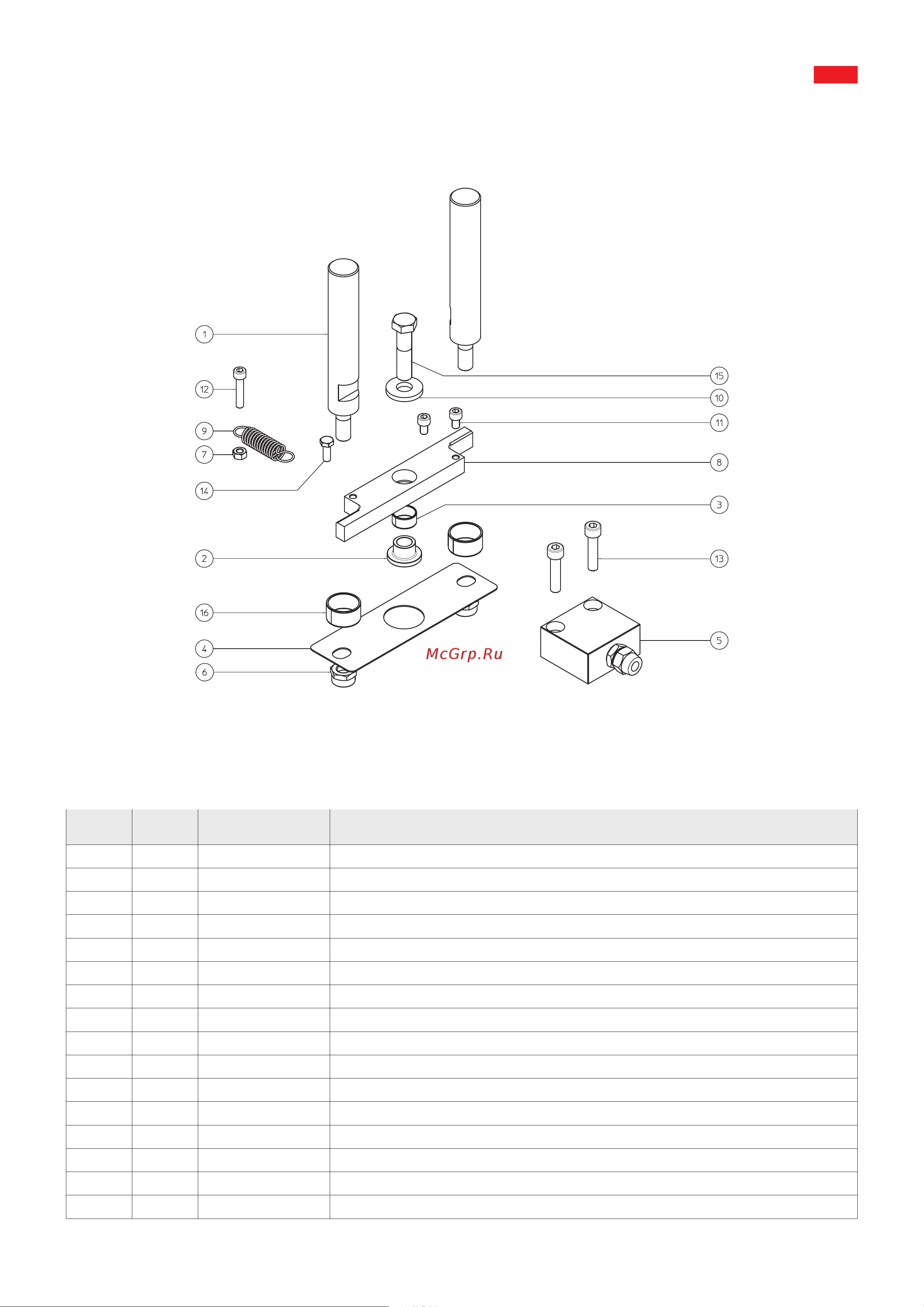

POSITION QUANTITY CODE DESCRIPTION
1 2 14800006 ROD RELEASE
2 1 17910005 RELEASE LEVER LATCH INSERT
3 1 18061810 LATCH INSERT KU 18 10
4 1 20100078 SPACER FOR CYLINDER
5 1 23700013 HYDRAULIC CYLINDER C=20
6 2 30091201 NUT SELFLOKING M12 ZINC.
7 1 30130601 NUT M6 ZINC.
8 1 42310026 CUTTING RELEASE LEVER
9 1 44830032 TRACTION SPRING T32010
10 1 59091230 WASHER D.12X30 SP. 4 ZINC.
11 2 69160610 SCREW TCEI M6X10 ZINC.
12 1 69160630 SCREW TCEI M6X30 ZINC.
13 2 69160835 SCREW TCEI M8X35 ZINC.
14 1 69200616 SCREW TE M6X16 ZINC.
15 1 69201250 SCREW TE M12X50 ZINC.
16 2 18062515 LATCH INSERT KF 25 15
DOUBLE CUT HOOKING GROUP COD. AZ000007
Содержание
- Cover group cod cp000005 1
- Cover lid cod ag000006 2
- Cover balancing cod bm000002 3
- Frame group cod tl000006 4
- Standard casing cod cr000003 5
- Removable pannels casing cod cr000005 6
- Rectangular basin group cod vs000007 7
- Divisions knife group cod tg000023 8
- Divisions knife group cod tg000019 9
- Divisions knife group cod tg000026 10
- Divisions knife group cod tg000024 11
- Divisions knife group cod tg000034 12
- Divisions knife group cod tg000043 13
- Divisions knife group cod tg000035 14
- Divisions knife group cod tg000040 15
- Double cut hooking group cod az000007 16
- 20 divisions knife group cod tg000022 17
- 24 div knife group cod tg000044 18
- 30 div knife group cod tg000027 19
- Round basin group cod vs000008 21
- Divisions knife group cod tg000026 22
- Divisions knife group cod tg000016 23
- Divisions knife group cod tg000031 24
- Exagonal basin 37 57 group cod vs000009 25
- 57 divisions knife group cod tg000029 26
- Exagonal basin 37 65 group cod vs000011 27
- 65 divisions knife group cod tg000020 28
- Exagonal basin 85 group cod vs000010 29
- 85 divisions knife group cod tg000032 30
- Rectangular small basin group cod vs000012 31
- S div knife group cod tg000037 32
- S divisions knife group cod tg000038 33
- Hydraulic system group 35
- Double cut hydraulic group 36
- Electrical group 37
- Electrical box ul csa 38
- Electrical box standard 39
