![Apach SQ SA24 [19/39] 30 div knife group cod tg000027](/img/pdf.png)
Apach SQ SA24 [19/39] 30 div knife group cod tg000027

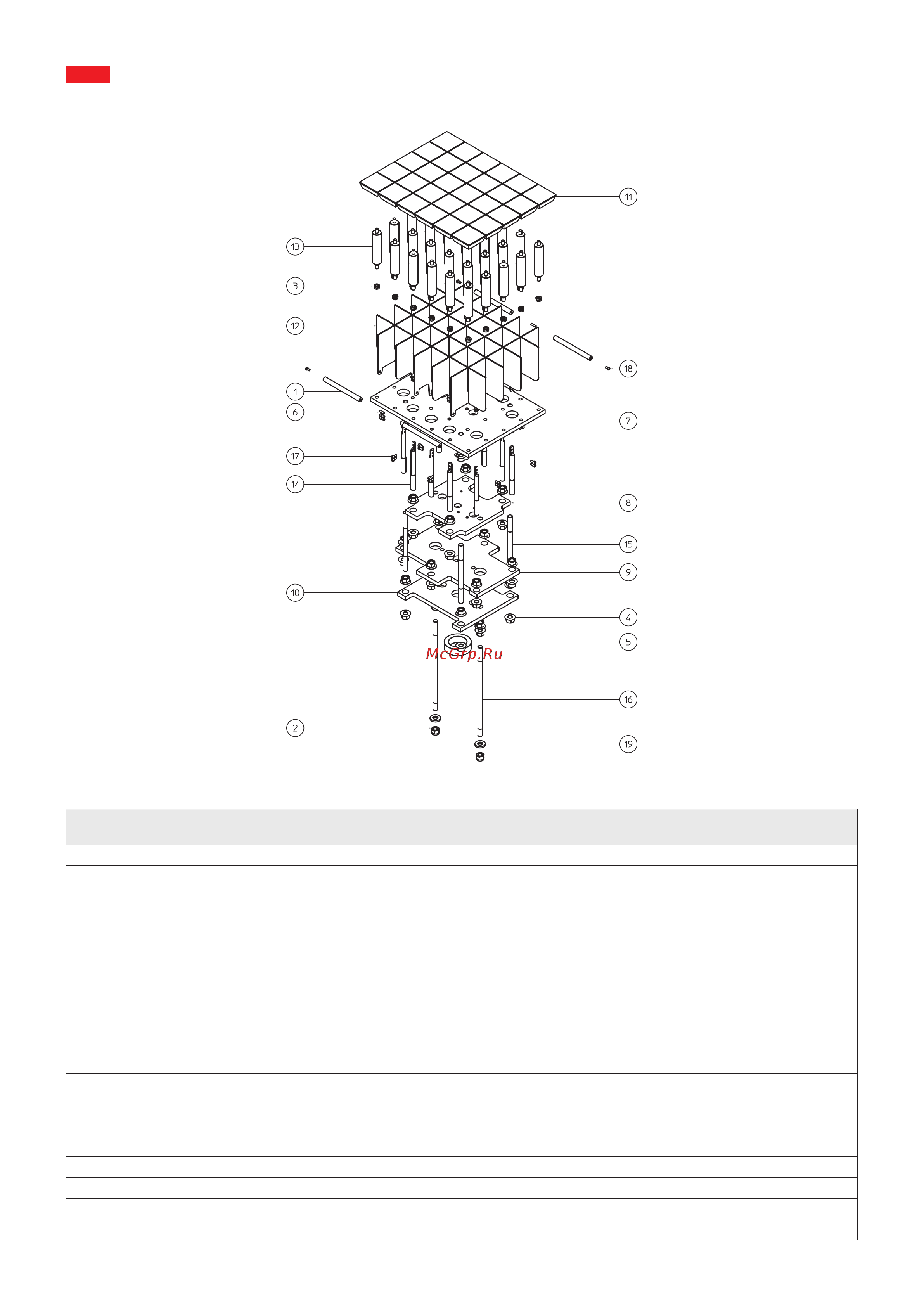

![Apach SQ SA24 [19/39] 30 div knife group cod tg000027](/views2/1897349/page19/bg13.png)
22
POSITION QUANTITY CODE DESCRIPTION
1 4 14800015 ROD
2 2 30081601 SELFLOCKING NUT M16 ZINC.
3 30 30091001 SELFLOCKING NUT M10 ZINC.
4 36 30191601 NUT M16 ZINC.
5 1 30860007 SPACER FOR CYLINDER
6 2 37060831 SCREW STEI M6X20 INOX
7 1 49420138 PRESS SUPPORT PLATE
8 1 49420139 KNIFE SUPPORT PLATE
9 1 49420140 KNIFE SUPPORT PLATE
10 1 49420141 PRESS SUPPORT PLATE
11 30 52600035 PRESS PLATES
12 1 60040151 KNIFE
13 30 62000005 PRESS PLATE SUPPORT
14 10 65810010 CUTTING KNIFE SUPPORT SHAFTS
15 4 65810011 PRESS SUPPORT PLATE GUIDE RODS
16 2 65810012 FIXED LIMIT ROD
17 20 69280612 SCREW TCEI M6X12 INOX
18 4 69290612 SCREW TCBEI M6X12 INOX
19 2 59091635 WASHER D.16X35 SP. 5 ZINC.
15/30 DIV. KNIFE GROUP COD. TG000027
