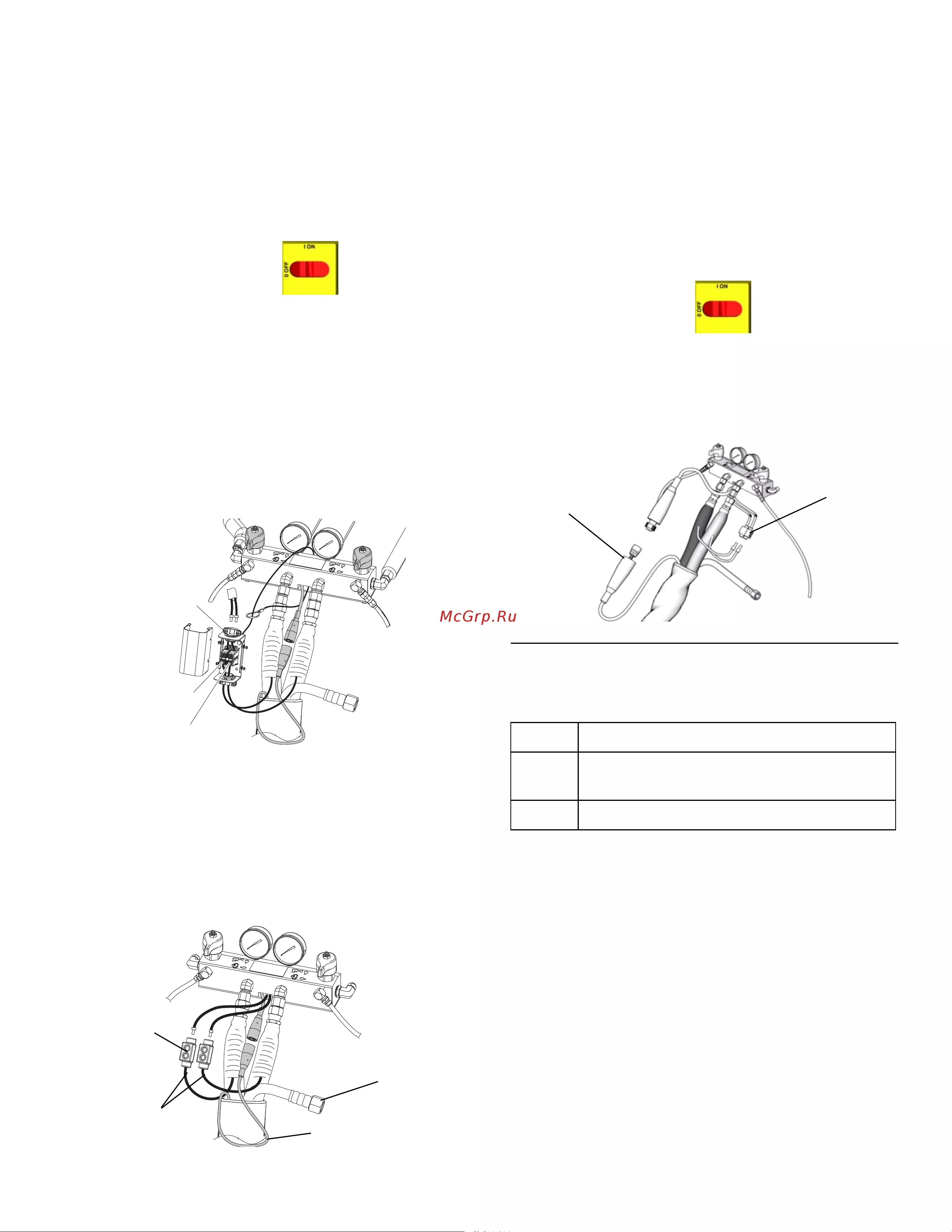

Repair
44 312066ZAF
Overtemperature Switch
1. Turn main power OFF . Disconnect power
supply.
2. Perform the Pressure Relief Procedure, page 25.
3. Wait for heaters to cool.
4. Remove heater shroud.
5. Disconnect one leadwire from overtemperature

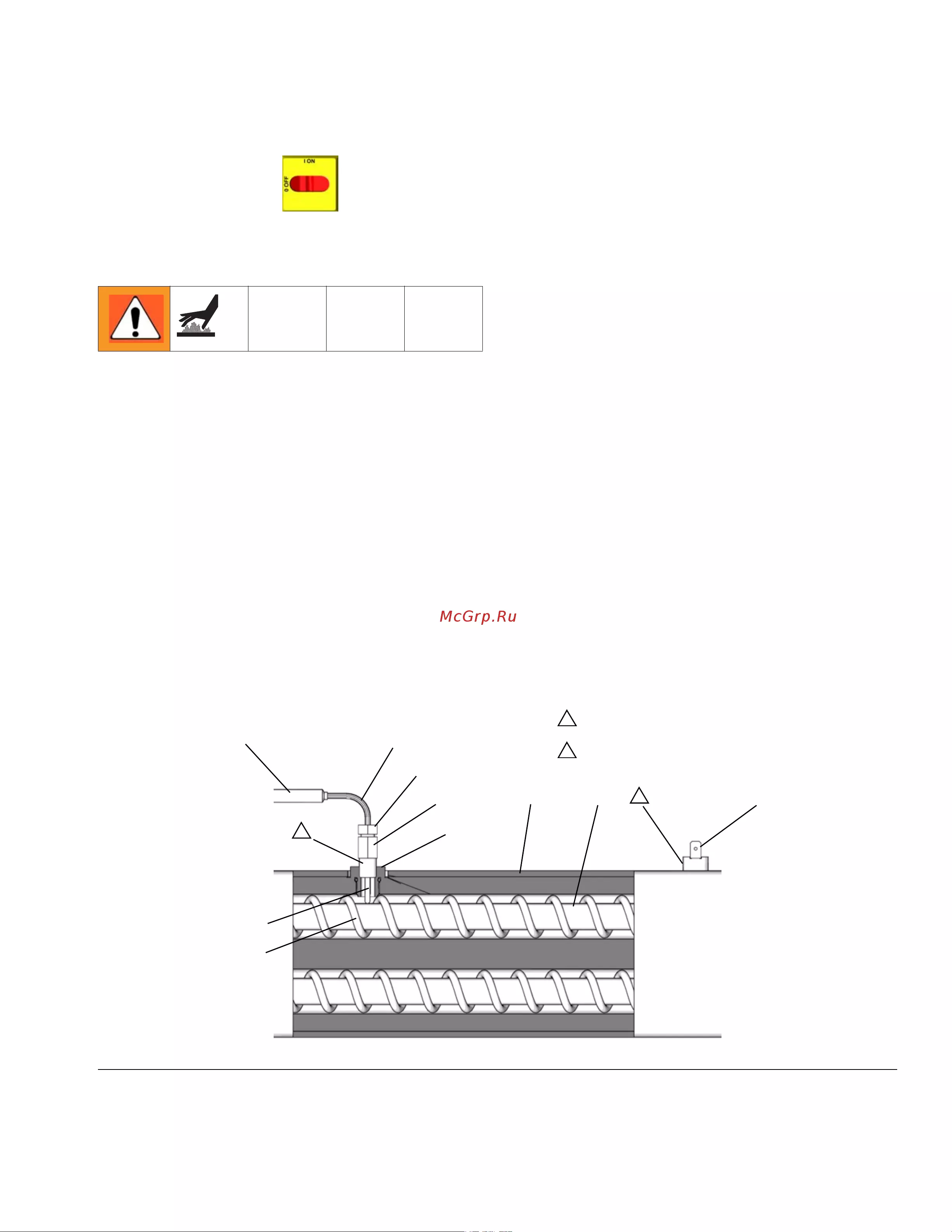

switch (308), FIG. 7, page 43. Test across switch
with ohmmeter. Resistance must be approximately
0 ohms.
6. If switch fails test, remove wires and screws.
Discard failed switch. Apply thermal compound
110009, install new switch in same location on
housing (301), and secure with screws (311).
Reconnect wires.
NOTE: If wires need replacement, disconnect from
temperature control board. See TABLE 5, page 39 and
FIG. 5, page 39.
