Repair
312066ZAF 47
Transformer Primary Check
1. Turn main power OFF .
2. Locate the two smaller (10 AWG) wires coming out
of transformer. Trace these wires back to contactor
and circuit breaker (911). Use an ohmmeter to test
for continuity between two wires; there should be
continuity.
Transformer Secondary Check
1. Turn main power OFF .
2. Locate the two larger (6 AWG) wires coming out of
transformer. Trace these wires back to large green
connector under hose control module and circuit
breaker (909). Use an ohmmeter to test for
continuity between two wires; there should be
continuity.
If you are not sure which wire in green plug under
hose module connects to transformer, test both
wires. One wire should have continuity with the
other transformer wire in breaker (909) and the
other wire should not.
3. To verify transformer voltage, turn on hose zone.
Measure voltage from 18CB-2 to
POD-HOSE-P15-2; refer to your Reactor Electrical
Diagrams manual. See Related Manuals, page 4.
* For 230 Vac line voltage.
Replace Transformer
NOTE: Use this procedure to replace transformer.
1. Turn main power OFF . Disconnect power
supply.
2. Open Reactor cabinet.
3. Remove bolts holding transformer to cabinet floor.
Slide transformer forward.
4. Disconnect the transformer wires; refer to your
Reactor Electrical Diagrams manual. See Related
Manuals, page 4.
5. Remove transformer from cabinet.
6. Install new transformer in reverse order.

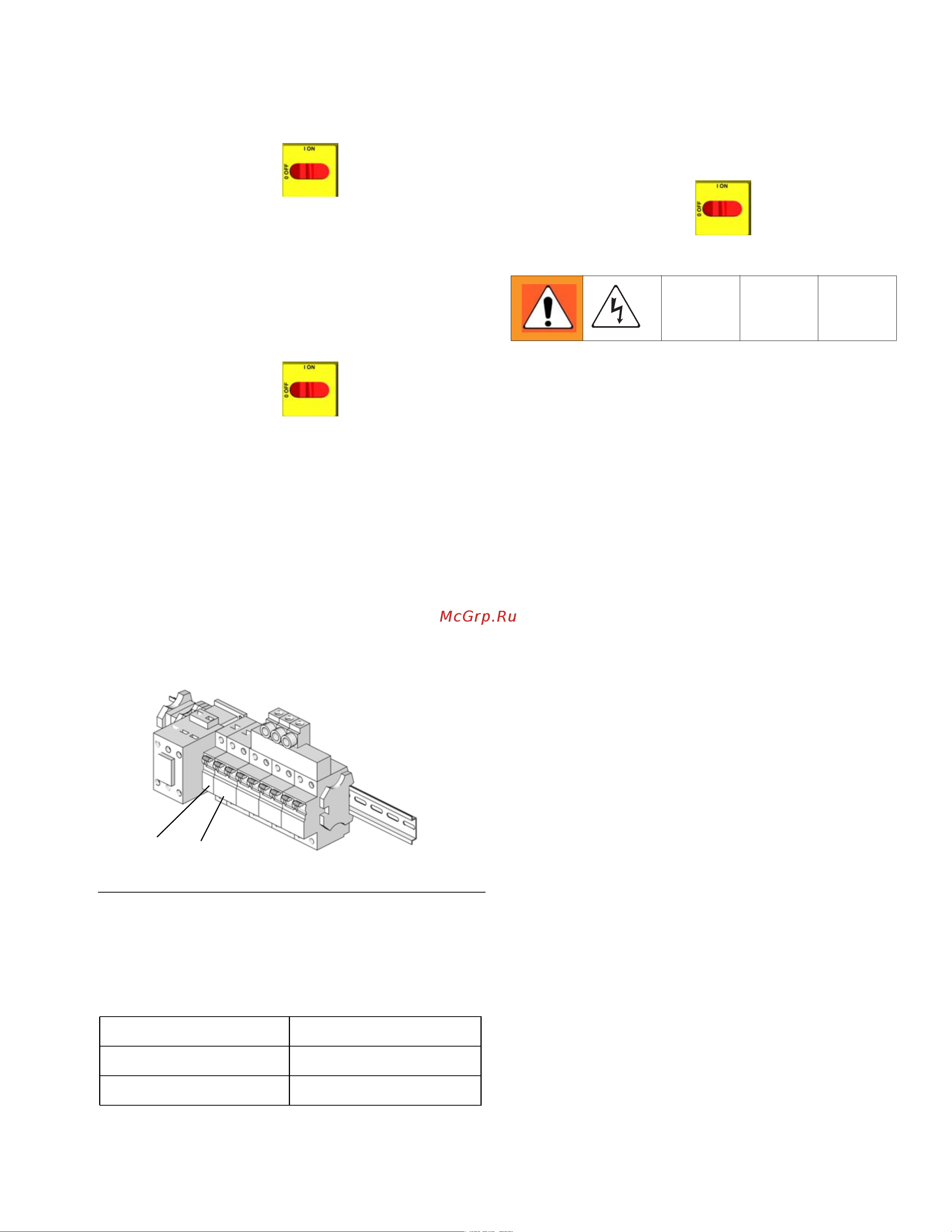

F
IG. 10: Circuit Breaker Module
Model Secondary Voltage
310 ft. 90 Vac*
210 ft. 62 Vac*
909
911
ti9884a
