Parts
60 312066ZAF

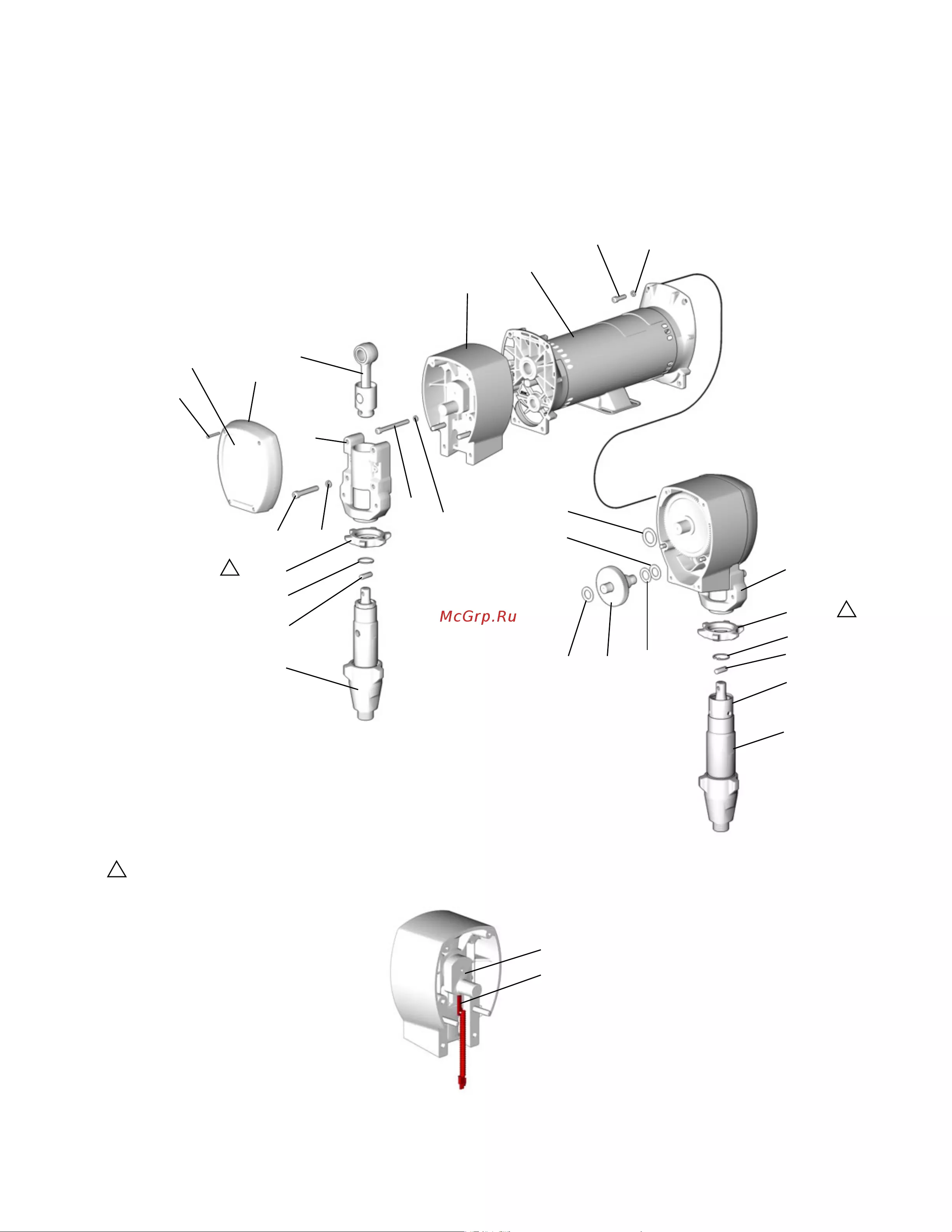

Proportioner Module Parts List
Ref. Part Description
Qty.
245956 245957 245959
201 24V618 MOTOR 1
24V500 MOTOR 11
202 245968 HOUSING, drive 2
245969 HOUSING, drive 22
203‡ 240523 HOUSING, bearing 2
241015 HOUSING, bearing 2
245927 HOUSING, bearing
2
204 244264 GEAR; includes items 207, 208 2
244265 GEAR; includes items 207, 208 22
205‡ 241008 ROD, connecting; includes item 210 2
241279 ROD, connecting; includes item 210 22
206A† 246830 PUMP, displacement, component A; see 309577 1
246831 PUMP, displacement, component A; see 309577 1
246832 PUMP, displacement, component A; see 309577 1
206B‡ 245970 PUMP, displacement, component B; see 309577 1
245971 PUMP, displacement, component B; see 309577 1
245972 PUMP, displacement, component B; see 309577 1
207* 114699 WASHER, thrust; steel 2 2 2
208* 114672 WASHER, thrust; bronze 4 4 4
209 114418 SCREW, self-tapping; 8-32 x 1 in. (25 mm) 8
114818 SCREW, self-tapping; 8-32 x 1-1/4 in. (31 mm) 88
210†‡** 176817 CLIP, wire 2
183169 CLIP, wire 22
211†‡ 176818 PIN 2
183210 PIN 22
212 107218 SCREW, cap, socket-hd; 1/4-20 x 2-3/4 in. (70 mm) 4
114686 SCREW, cap, socket-hd; 5/16-18 x 3-1/4 in. (83 mm) 44
213 107210 SCREW, cap, socket-hd; 3/8-16 x 1-1/2 in. (38 mm) 8
114666 SCREW, cap, socket-hd; 3/8-16 x 2-1/4 in. (57 mm) 88
214 105510 WASHER, lock; 1/4 12
104008 WASHER, lock; 5/16 12 12
215‡ 106115 WASHER, lock; 3/8 size 8 8 8
216†‡ 192723 NUT, retaining 2
193031 NUT, retaining 2
193394 NUT, retaining 2
217 179899 COVER 2
241308 COVER 22
218 116191 WASHER, thrust 2
116192 WASHER, thrust 22
219 100644 SCREW, cap, socket-hd; 1/4-20 x 3/4 in. (19 mm) 4
101864 SCREW, cap, socket-hd; 5/16-18 x 1 in. (25 mm) 44
220 116618 MAGNET 1 1 1
221 117770 SWITCH, cycle counter 1
