Repair
10 309577Y

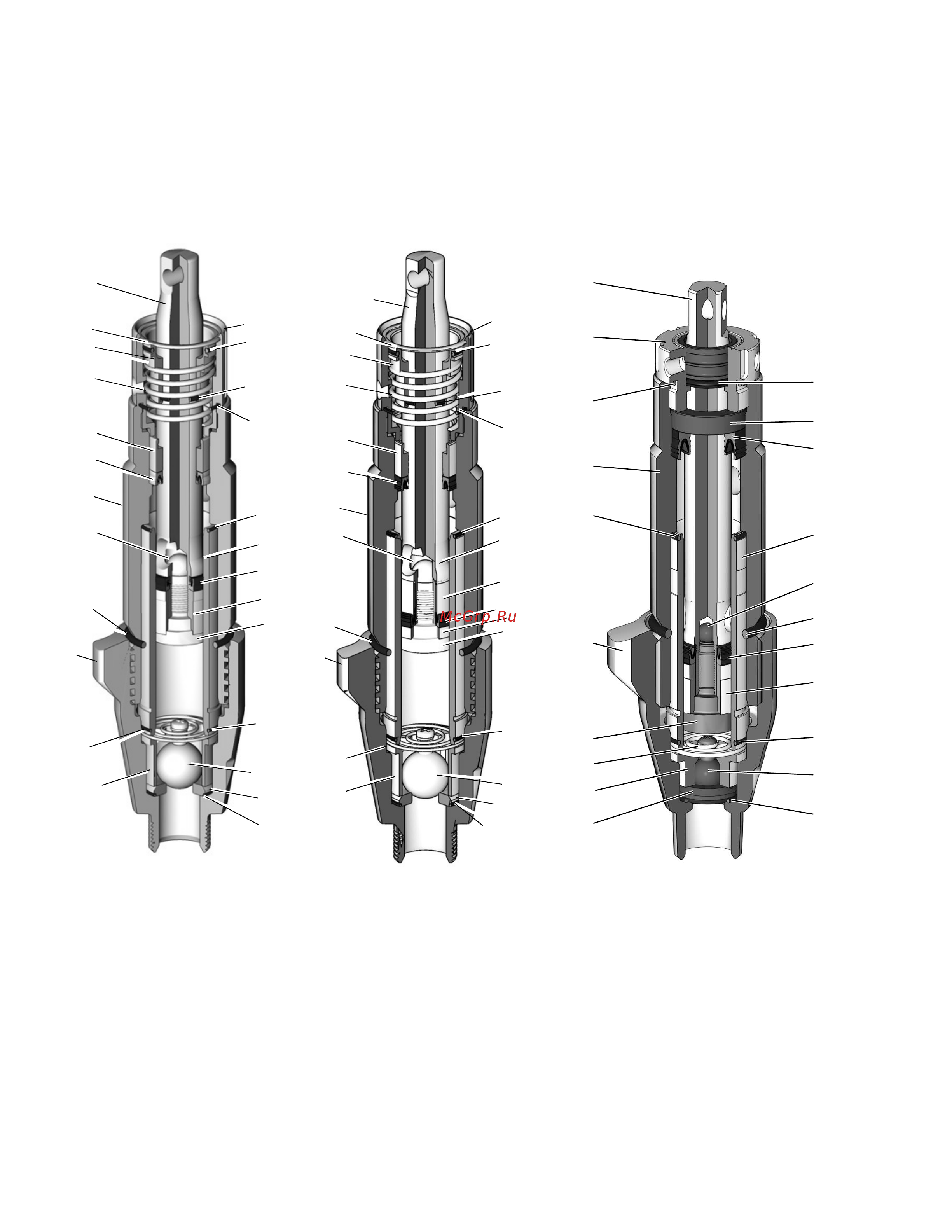

Cutaway Views
Component A (ISO) Pump
1
19
27
26
17
20
4
16
15
13
14
3
11
10
9
12
7
5
3
2
ti40680a
8
1
19†
†*22
†25
24*†
*17
*20
2
*16
*15
5
3*
4
14*
7
13*
3*
11*
9
10*
‡*8
12
ti3734b
26*†
27*†
†28
246830
246832
1
19†
†*22
†25
24*†
*17
*20
2
*16
*15
5
3*
4
13*
7
18*
3*
11*
9
10*
‡*8
12
ti3734c
26*†
27*†
†28
14*
246831
262647
24Y175
25P857
25P858
25P944
