Repair
12 309577Y
Disassemble the Pump
1. Shut off , , and heat zones.
2. Flush the pumps. See your Reactor manual.
3. Relieve the pressure. Follow the Pressure Relief
Procedure, page 8.
4. Press . The motor will run until the pumps are
at the bottom of their strokes, then shut off.
5. Turn the main power OFF . Disconnect the
power supply.
NOTE: Steps 6-8 apply to pump A. See F
IG. 1. To
disconnect pump B, go to steps 9 and 10. Use
dropcloth or rags to protect Reactor and surrounding
area from spills.
6. Disconnect the fluid inlet (C) and outlet (D). Also
disconnect the steel outlet tube from the heater
inlet.
7. Disconnect the tubes (T). Remove the tube fittings
(U) from the wet-cup.
8. Loosen the star-shaped locknut (G) by hitting firmly
with a non-sparking hammer. Unscrew the pump
far enough to expose the retaining pin under the
plastic finger guard. Push the retaining spring up.
Push the pin out. Continue unscrewing the pump.
NOTE: Steps 9 and 10 apply to the pump B. See F
IG. 2.
Use a dropcloth or rags to protect the Reactor and
surrounding area from spills.
9. Disconnect the fluid inlet (C) and outlet (D). Also
disconnect the steel outlet tube from the heater
inlet.
10. Push the retaining spring (E) up. Push the pin (F)
out. Loosen the star-shaped locknut (G) by hitting
firmly with a non-sparking hammer. Unscrew the
pump.
Pump rod and connecting rod move during
operation. Moving parts can cause serious injury
such as pinching or amputation. Keep hands and
fingers away from connecting rod during operation.
A
B

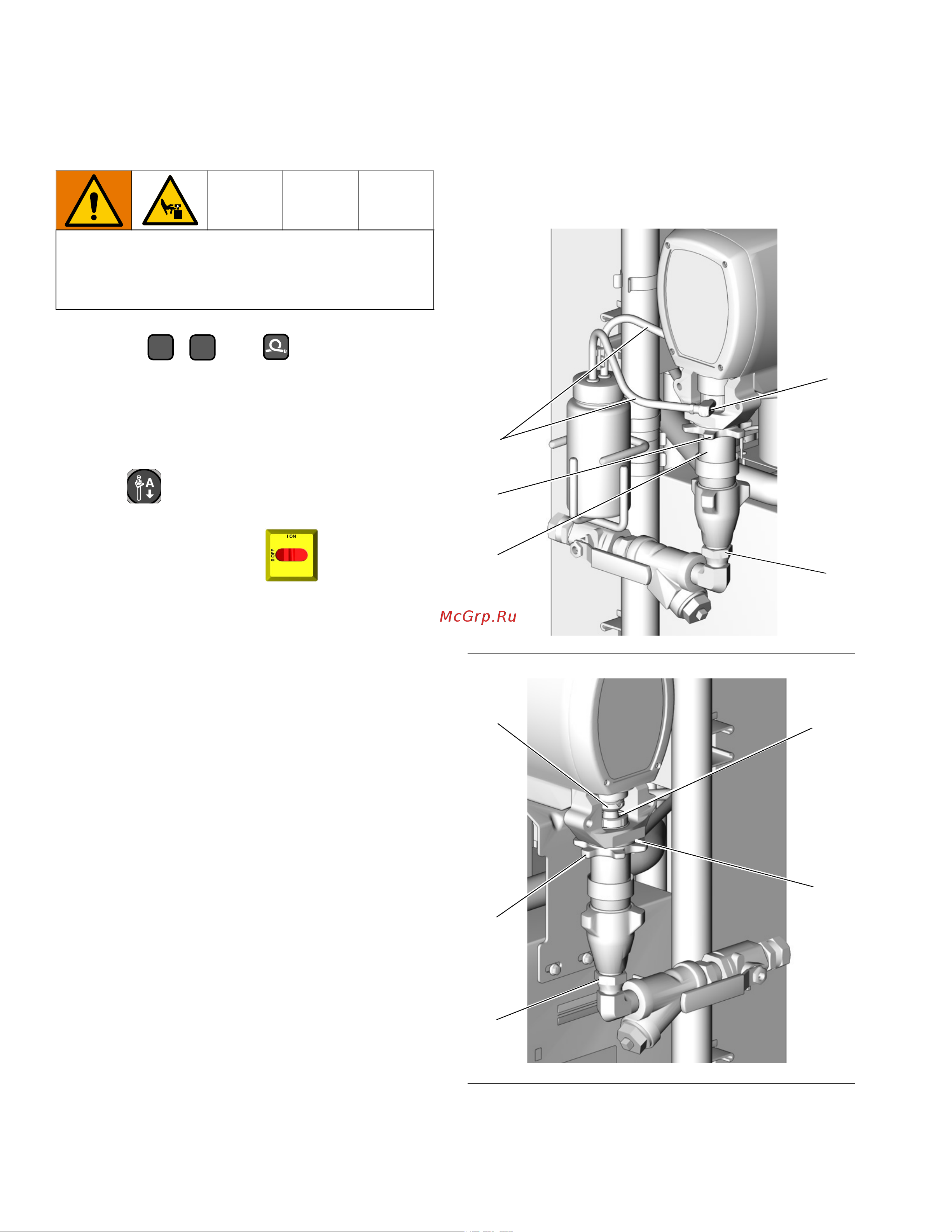

FIG. 1 Disconnect Pump A
FIG. 2 Disconnect Pump B
TI3765a-2
C
U
G
D
T
TI3765a-1
C
F
G
D
E
