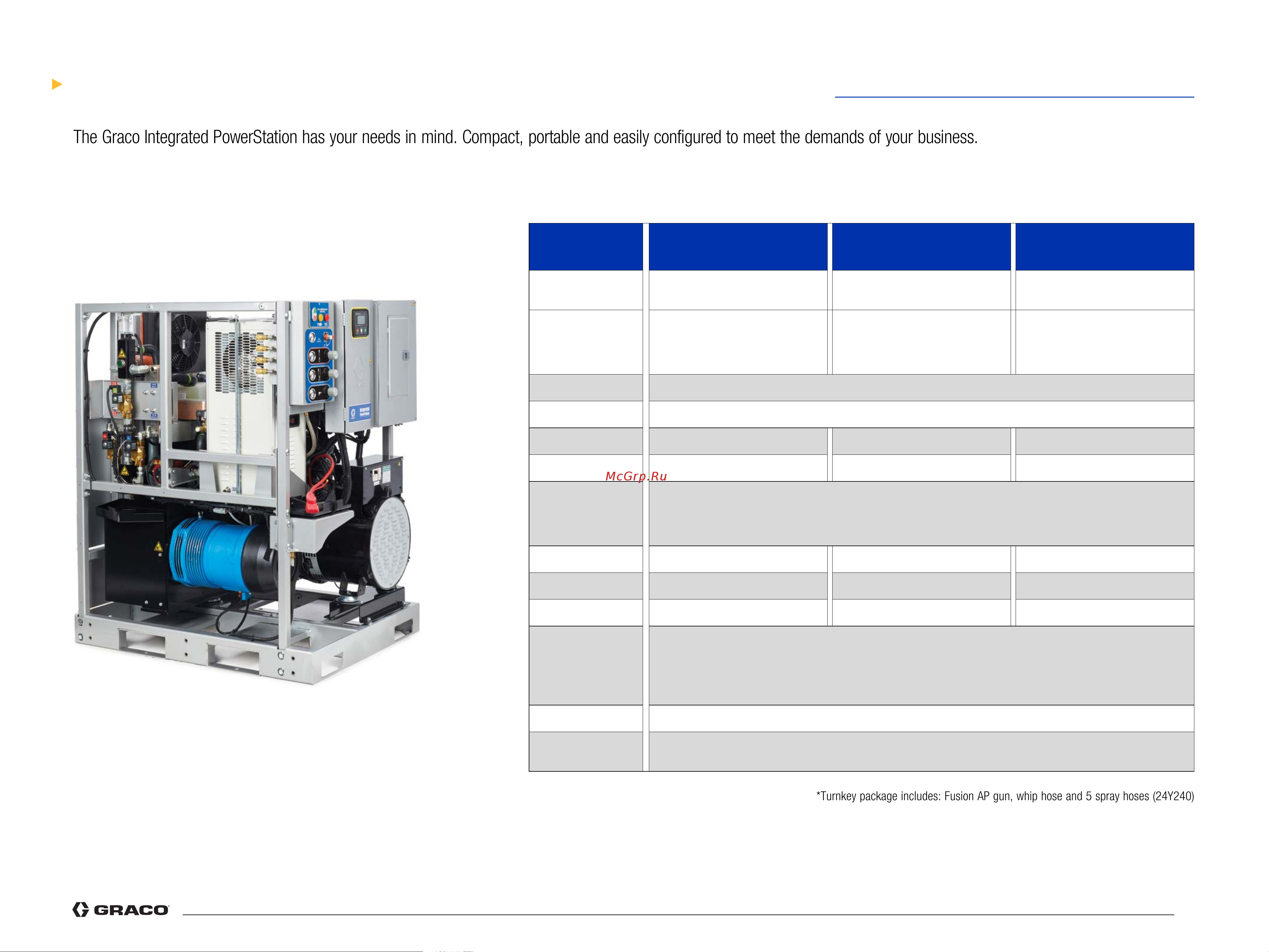

Integrated PowerStation Technical Information
DESCRIPTION
Integrated PowerStation
Tier 4 Final, no air compressor
Integrated PowerStation
Tier 4 Final, 20 cfm air compressor
Integrated PowerStation
Tier 4 Final, 35 cfm air compressor
IPS
MODEL NUMBER
979200 979201 979202
TURNKEY SYSTEMS
MODEL NUMBER
NA NA
E-30 – 998010
E-30 PKG* – AH8010
H-30 – 998020
H-30 PKG* – AH8020
ENGINE
Kohler KDI1903TCR, 33.6 kW
ALTERNATOR
Mecc Alte, 240V, 1-PH, 90A, 22 kVA
COMPRESSOR
Not Included Hydrovane HV04: 20 cfm, 5HP Hydrovane HR07: 35 cfm, 10HP
AIR DRYER
Not Included Hankison HIT20: 22 cfm Hankison HIT35: 35 cfm
AUXILIARY
POWER
No Compressor, 4 kW boost heat: 36A @ 240V
20 or 35 cfm Air Compressor, 4 kW boost heat: 31.7A @ 240V
(Using 2 kW boost heat add 8.3A @ 240V)
AIR CONTROLS
Not Included Included Included
PALLET SIZE
46.75 x 37.5 x 58 in (W x L x H) 46.75 x 37.5 x 58 in (W x L x H) 46.75 x 37.5 x 58 in (W x L x H)
WEIGHT
1690 lbs 1820 lbs 1900 lbs
FUEL
CONSUMPTION
25% Engine Load: 0.49 gal/hr
50% Engine Load: 0.97 gal/hr
75% Engine Load: 1.46 gal/hr
100% Engine Load: 1.94 gal/hr
FUEL TANK
Not Included (optional kit 24K390)
ELECTRICAL
PANEL
Square D: QO Load Center
The Graco Integrated PowerStation has your needs in mind. Compact, portable and easily configured to meet the demands of your business.
*Turnkey package includes: Fusion AP gun, whip hose and 5 spray hoses (24Y240)
Configured options for your PowerStation
The PowerStation (IPS) can be configured with the proportioner and genset
separated in the spray rig to provide layout and weight balancing options.
