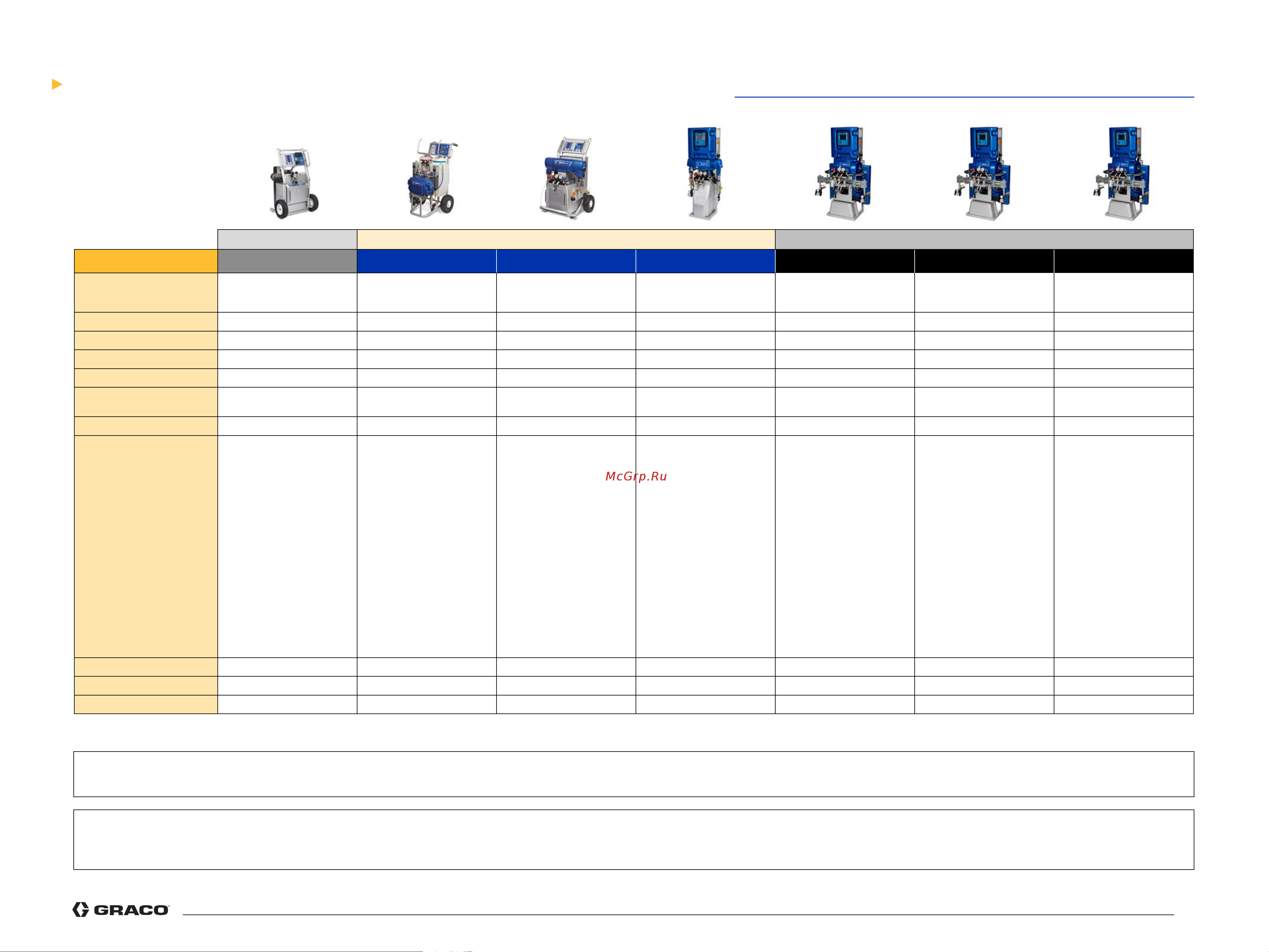

Graco Reactor 2 H-40 17H144 [11/13] Equipment for spray foam applications
![Graco Reactor 2 H-40 APH144 [11/13] Equipment for spray foam applications](/views2/1900950/page11/bgb.png)
*Reactor systems can be wired for all voltages: 230V - 1ph; 230V - 3ph; 400V - 3ph ‡ Basic packages available ∆ Additional hose packages available
Basic Packages – Most Reactor systems are available in a basic package, which includes: • System • Whip hose • Spray hose • Choice of gun Fusion
®
AP, PC, CS or Probler
®
P2
To order this package, replace the first two part numbers with the gun type. Fusion AP = AP; Fusion PC = FP; Fusion CS = CS; Probler P2 = P2 For example: System 272110 in a basic package with a Fusion AP gun, becomes part number AP2110
Air (A Series) Electric (E Series) Hydraulic (H Series)
MODEL A-25 E-10 E-20 Reactor 2 E-30
™
Reactor 2 H-30
™
Reactor 2 H-40
™
Reactor 2 H-50
™
Max Working Pressure
2000 psi
(138 bar, 13.8 MPa)
28 scfm air consumption@100 psi
2000 psi
(138 bar, 13.8 MPa)
2000 psi
(138 bar, 13.8 MPa)
2000 psi
(138 bar, 13.8 MPa)
2000 psi
(138 bar, 13.8 MPa)
2000 psi
(138 bar, 13.8 MPa)
2000 psi
(138 bar, 13.8 MPa)
Min Working Pressure
N/A N/A N/A N/A 700 psi (48 bar, 4.8 MPa) 600 psi (41 bar, 4.1 MPa) 600 psi (41 bar, 4.1 MPa)
Max Hose Length
210 ft (64 m) 105 ft (32 m) 210 ft (64 m) 310 ft (94 m) 310 ft (94 m) 410 ft (125 m) 410 ft (125 m)
Max Fluid Temp
190˚F (88˚C) 160˚F (71˚C) 190˚F (88˚C) 190˚F (88˚C) 190˚F (88˚C) 190˚F (88˚C) 190˚F (88˚C)
Output
25 lb (11.4 kg)/min 12 lb (5.4 kg)/min 20 lb (9 kg)/min 30 lb (13.6 kg)/min 28 lb (12.3 kg)/min 45 lb (20 kg)/min 52 lb (23.6 kg)/min
Weight
250 lb (113 kg) Heated: 160 lb (72 kg)
Unheated: 150 lb (68 kg)
342 lb (155 kg) 355 lb (161 kg) 10 kW: 530 lb (240 kg)
15 kW: 556 lb (252 kg)
600 lb (272 kg) 600 lb (272 kg)
Reactor App Compatible
No No Yes Yes Yes Yes Yes
Ordering Information
With 6.0 kW heater:
262614
*Amps
230V, 1-ph — 40A
230V, 3-ph — 32A
380V, 3-ph — 18.5A
With 1.7 kW heater:
120V, 2-cord
249570
With 2.0 kW heater:
240V, 2-cord
249571
240V, 1-cord
249572
Unheated ambient system:
120V
249576
240V
249577
With 6.0 kW heater:
230V, 1-ph — 48A
259025
230V, 3-ph — 32A
259034
400V, 3-ph — 24A
259030
With 10.2 kW heater:
272110 - Elite
272010 - standard
With 15.3 kW heater:
272111 - Elite
272011 - standard
*Amps
10kW:
230V, 1-ph — 78A
230V, 3-ph — 50A
400V, 3-ph — 34A
15kW:
230V, 1-ph — 100A
230V, 3-ph — 62A
400V, 3-ph — 35A
With 10.2 kW heater:
17H131 - Elite
17H031 - standard
With 15.3 kW heater:
17H132 - Elite
17H032 - standard
*Amps
10kW:
230V, 1-ph — 79A
230V, 3-ph — 46A
400V, 3-ph — 35A
15kW:
230V, 1-ph — 100A
230V, 3-ph — 59A
400V, 3-ph — 35A
With 15.3 kW heater:
230V, 3-ph — 71A
17H143 - Elite
17H043 - standard
400V, 3-ph — 41A
17H145 - Elite
17H045 - standard
With 20.4 kW heater:
230V, 3-ph — 95A
17H144 - Elite
17H044 - standard
400V, 3-ph — 52A
17H146 - Elite
17H046 - standard
With 20.4 kW heater:
230V, 3-ph — 95A
17H153 - Elite
17H053 - standard
400V, 3-ph — 52A
17H156 - Elite
17H056 - standard
Packages
‡ ‡ ‡ ‡ ∆ ‡ ∆ ‡ ∆ ‡ ∆
Operation manual
3A1569 311075 312065 333023 334945 334945 334945
Repair manual
3A1570 311075 312066 333024 334946 334946 334946
∆ Additional Hose Pkgs – Most Reactor systems are available in an additional hose pkg., which includes: • System • Whip hose • Multiple spray hoses • Choice of gun Fusion AP, PC, CS or Probler P2
To order this package, replace the first number with the gun type and the second number with “H” (for hose). Fusion AP = AH; Fusion PC = FH; Fusion CS = CH; Probler P2 = PH
For example: System 272110 in an additional hose package with a Fusion AP gun, becomes part number AH2110
‡
Equipment for Spray Foam Applications
11
