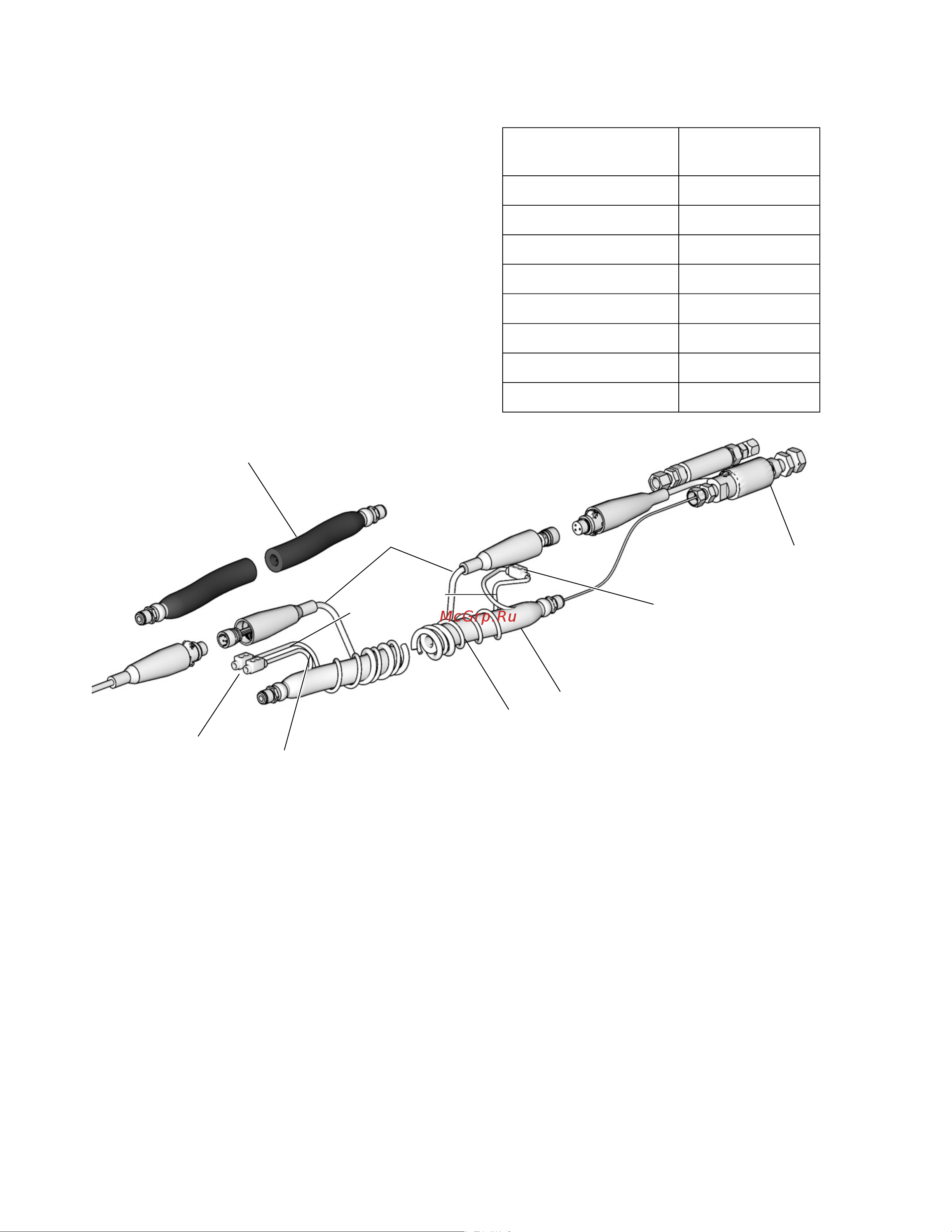

Parts
30 309572ZAT
NOTE: Some previous models include transformers
with tap settings.
Set transformer wire taps, using the following table.
Transformer tap wire connections vary depending on
length of heated hose. See proportioner operation
manual for further information. Verify that tap wire
connections are correct.
Single Side Heated
Hose Length, ft (m)
Tap Terminal
Label (ft)
50 (15.2) 50
100 (30.5) 50
150 (45.7) 100
200 (61.0) 100
250 (76.2) 150
300 (91.5) 150
350 (106.8) 200
400 (122.0) 200
105
TI5872D
100a
102
100
100
100a
101a
101a
101
FTS
