Shimadzu AUW-220 [22/118] Installation
![Shimadzu AUW-220 [22/118] Installation](/views2/1910667/page22/bg16.png)
10
4. Installation
For Basic Operation

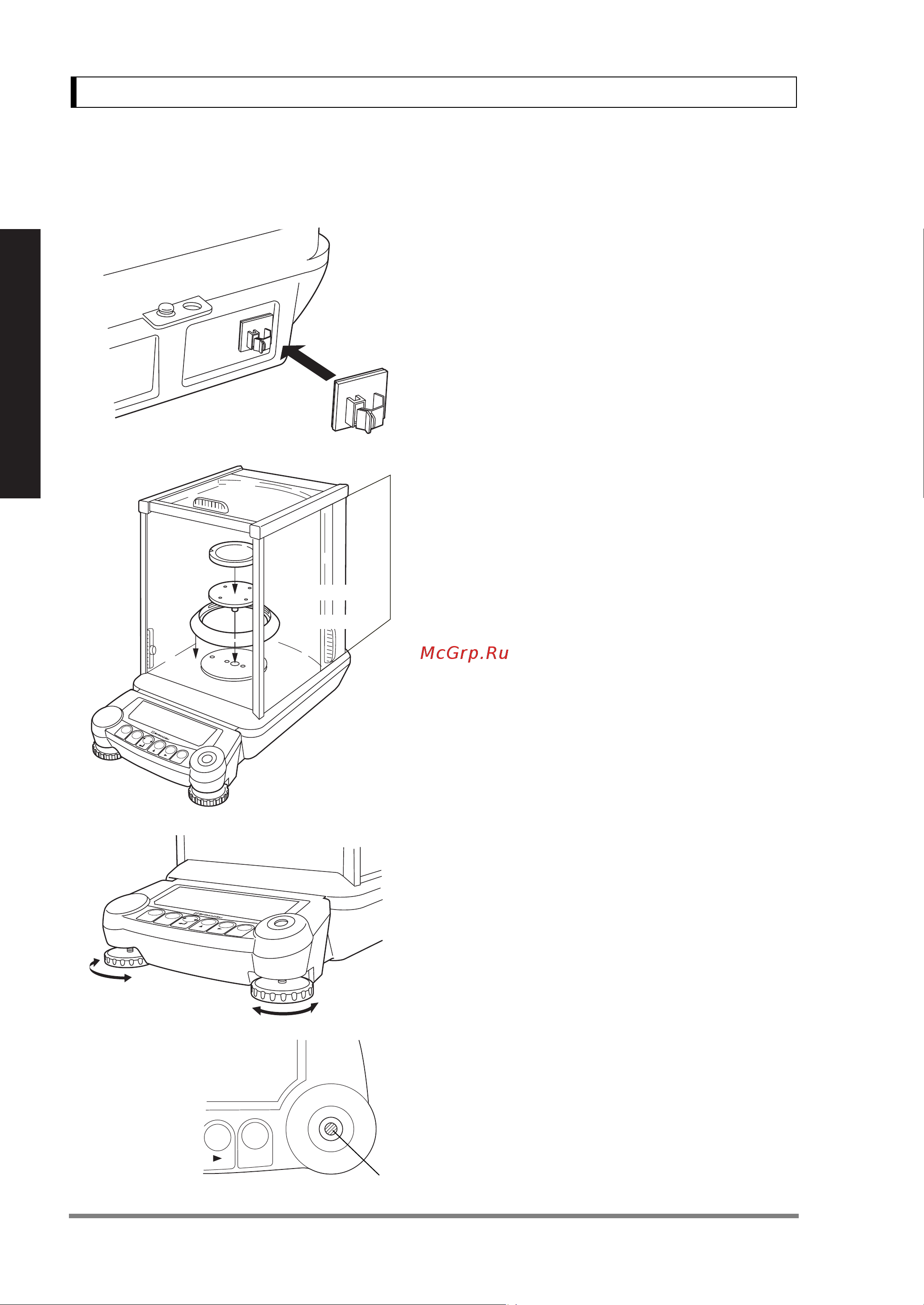

4.3 Installation
1 Attach the adapter cable holder.
Peel the protective sheet of adhesive off the
adapter cable holder , and stick it on the back of
the balance as shown in the figure.
2 Place the balance main body on the installation
site.
3 Attach the pan supporter, the pan, and the anti-
draft ring.
(1) Gently attach the pan supporter on the center
axis of the weighing chamber.
(2) Gently place the pan on the pan supporter.
(3) Place the anti-draft ring.
4 Adjust the horizontal level. (level adjustment)
There are two level screws on the front of this bal-
ance. The screws grow longer when turned in
clockwise direction from above and they grow
shorter when turned counter-clockwise. Adjust the
level screws until the bubble in the level indicator
is in the middle of the red circle.
O/T
1d/10d
UNIT
PRINT
POWER
B R K
C A L
MENU
Pan
Pan supporter
Anti-draft ring
(2)
(1)
(3)
O/T
1d/10d
UNI
T
PRINT
POWER
B R K
C A L
MENU
1d/10d
PRINT
Level screws
Level indicator
bubble
