11
COMPRAG Process water-oil separators
WOS-5/10/20/30

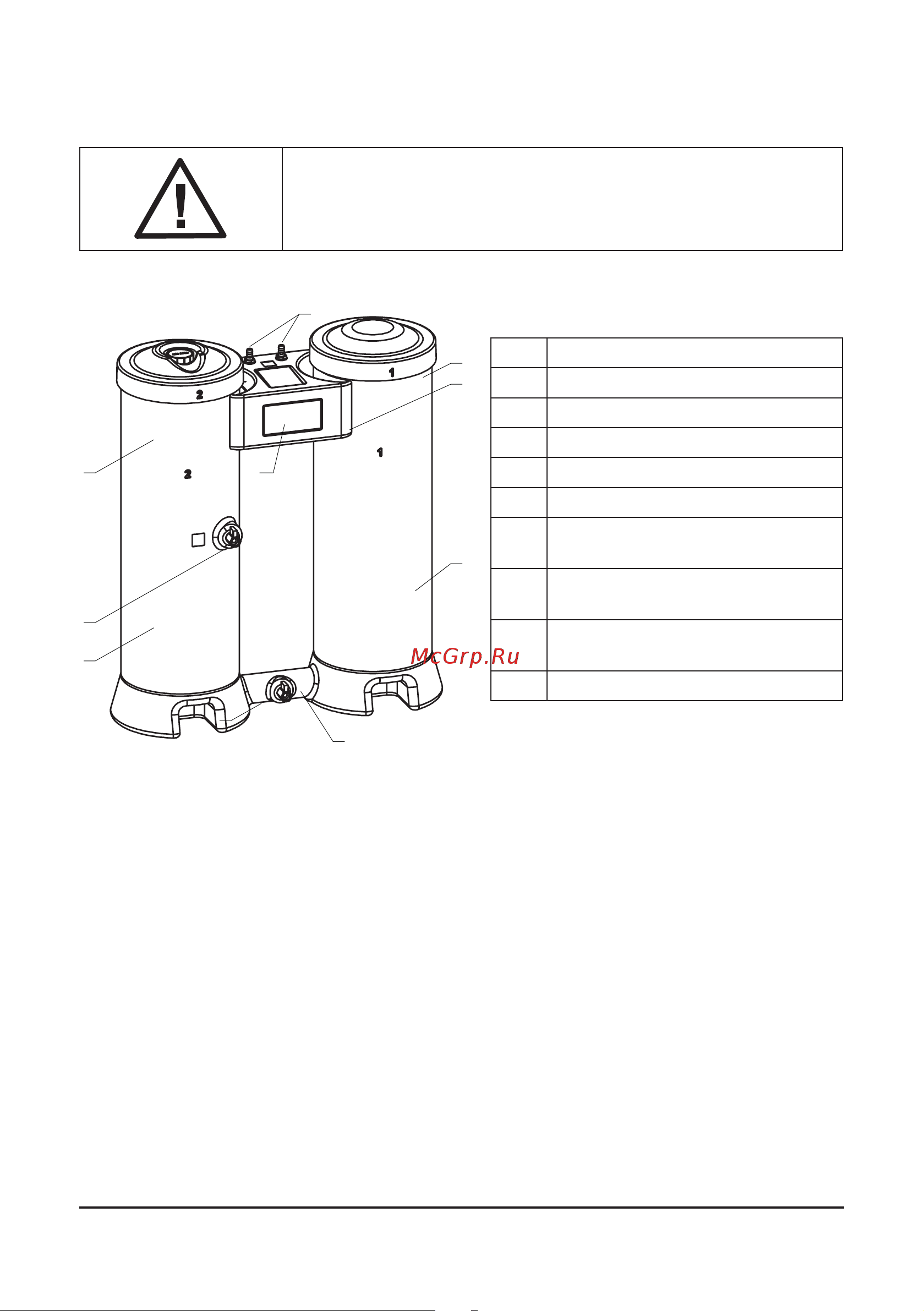

2.2 Function diagram and main components
The manufacturer cannot be held responsible for any damage re-
sulting from improper, incorrect or unreasonable use. Use genuine
spare parts only. Any damage or malfunction caused by the use
of ungenuine parts is not covered by Warranty or Product Liability.
Pos. Part
1. Inlet connection- condensate (water, oil)
2. Depressurization chamber (with air lter)
3. First stage chamber
4. Condensate ow
5. Oil lter cartridge
6. Condensate ow (water, residual oil
traces)
7. Activated carbon lter cartridge (nal
oil elimination)
8 Clean water outlet (residual oil
content <10ppm
9 Second stage chamber
Process water-oil separators WOS water oil separators are intended for separation of lubricant oil
from condensate generated in compressed air systems. This appliance must be used only
for the purpose for which it was specically designed. All other uses are to be considered
incorrect.
29
7
8
7
3
4
5
6
1
Fig. 2.2 Part
