ACB3209B A
Инструкция по монтажу Страница: 3

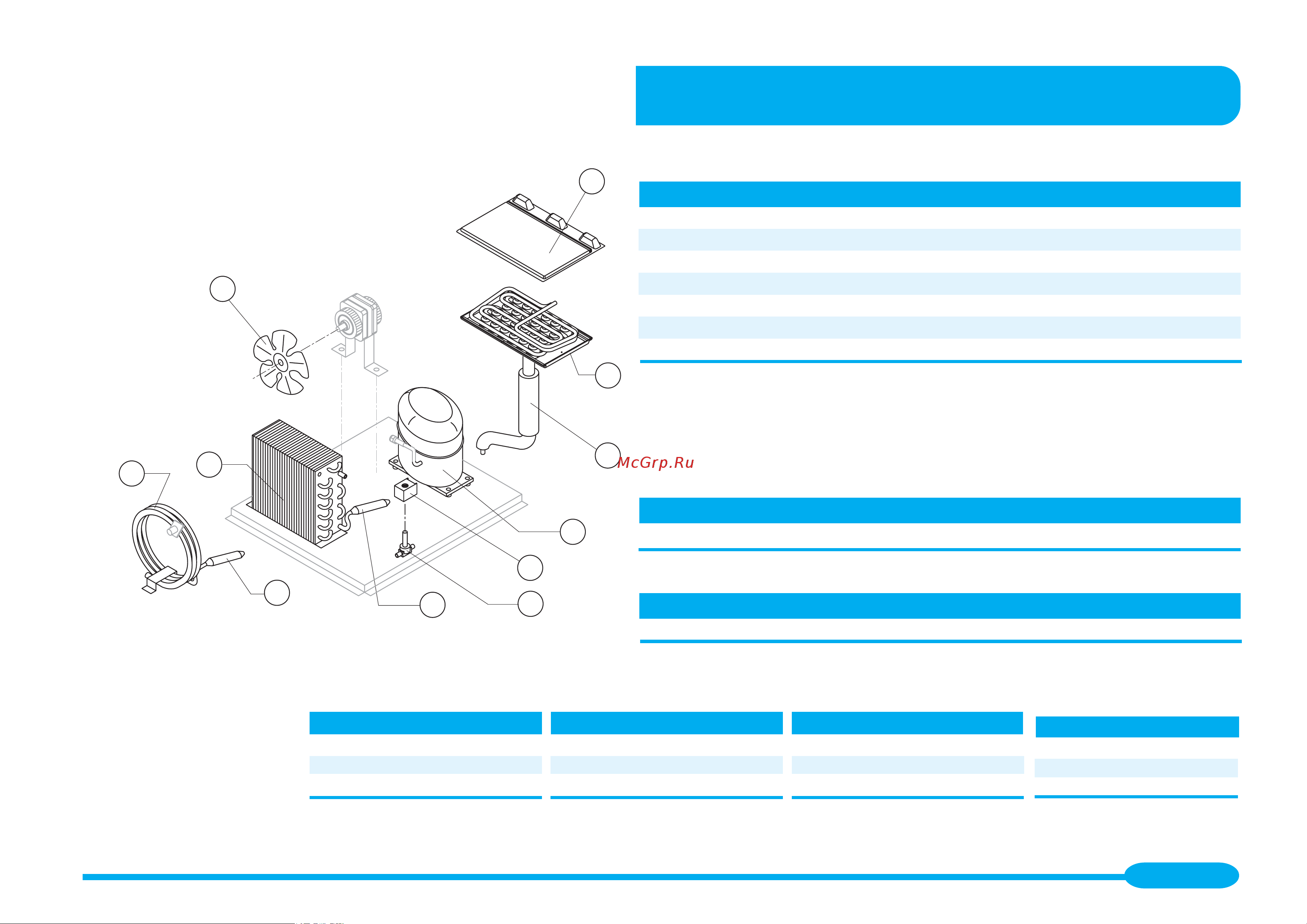

Apach ACB3209B A [3/6] Cooling system

Apach ACB3209B A [3/6] Cooling system

Page 3

Rev . 10 - 1 2/ 03 / 201 9

SL 60

COOLING SYSTEM

1

1

2

2

3

3

4

4

4

4

6

6

7

7

12

12

14

14

13

13

11

11

6 Air Condenser 20534

Rif.

Descrizione Ricambio

Parts for Air-Cooled Version Only

Ref. Spare Description Code

7 Water Condenser 14057

Parts for Water-Cooled Version Only

Ref. Spare Description Code

1 Evaporator Cover Panel from s/n. 355679 10512

2 Evaporator Assy See Table

3 Compressor See Table

4* Molecular Drier 14009

11 Suction Fan See Table

12* Hot Gas Valve Coil See Table

13* Hot Gas Valve Body 20410

Common Parts

Ref. Spare Description Code

17 g. (Standard) D10045

32 g. D10320

14 g. D10416

Ref. 2 - Evaporator

Kind of Cube Code

220/240V 50 Hz 23985

220/230V 60 Hz 23494A

110/115V 60 Hz 231212

Ref. 3 - Compressor

Tension Code

220/240V 50 Hz 20096 10213

220/230V 60 Hz 20095 10213

110/115V 60 Hz 20095 10213

Ref. 11 - Suction Fan

Tension Air Water

220/240V 50 Hz 231294

220/230V 60 Hz 231294

110/115V 60 Hz 23256

Ref. 12* - Hot Gas Valve Coil

Tension Code
