Apach ACB3209B A [5/6] Sprayer pump

Rev . 10 - 1 2/ 03 / 201 9

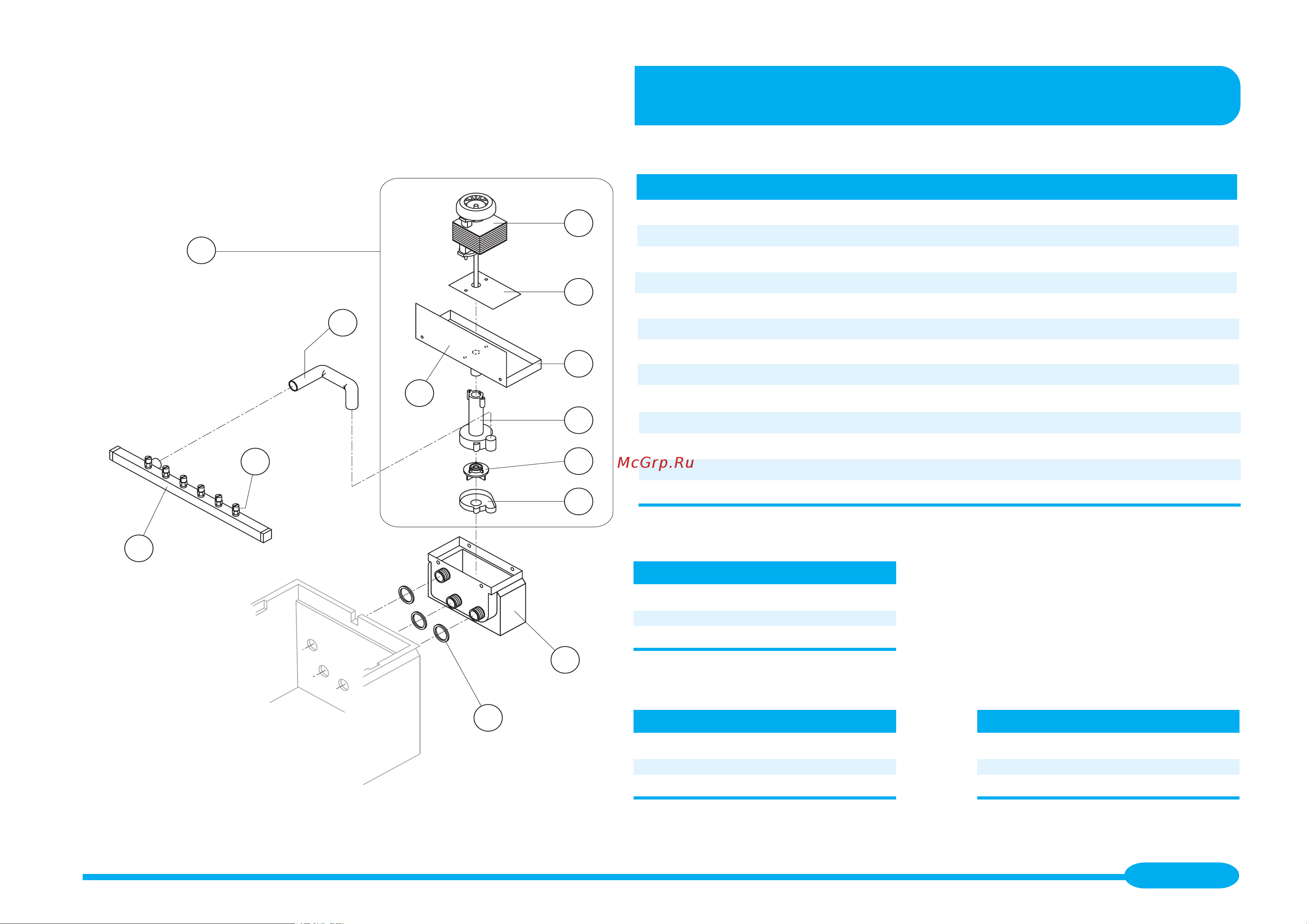

SPRAYER PUMP

Ref. 6 - Pump Motor

220/240V 50 Hz R23073

220/230V 60 Hz 23187

110/115V 60 Hz 23188

Spare Description

Ref. 5* - Pump Assembly

220/240V 50 Hz RC23254

220/230V 60 Hz C23416

110/115V 60 Hz C23417

Ref. 1* - Sprayers Bar Assembly

Kind of Cube

17 g. (Standard) C20572

32 g. C20581

14 g. C20570

1* Sprayers Bar Assembly See Table

3 Sprayer D20002

4 Pump Delivery Pipe 13068

5* Pump Assembly See Table

6 Pump Motor See Table

7 Heat Dissipator 22430

8 Pump Motor Holder 10161

9 Basin/pump fender case 22763

10 Pump Body 10065

11 Pump Impeller 10066

12 Diffusor 10067

13 Insulated Pump Basin C11048

14 Silicone Seal for Pump Basin 13069
