Apach ACB3209B A [4/6] Hydraulic circuit

Apach ACB3209B A [4/6] Hydraulic circuit

Page 4

Rev . 10 - 1 2/ 03 / 201 9

SL 60

Ref.

Spare Description

Code

Parts for Water-Cooled Version Only

17 Discharges Manifold

C10367

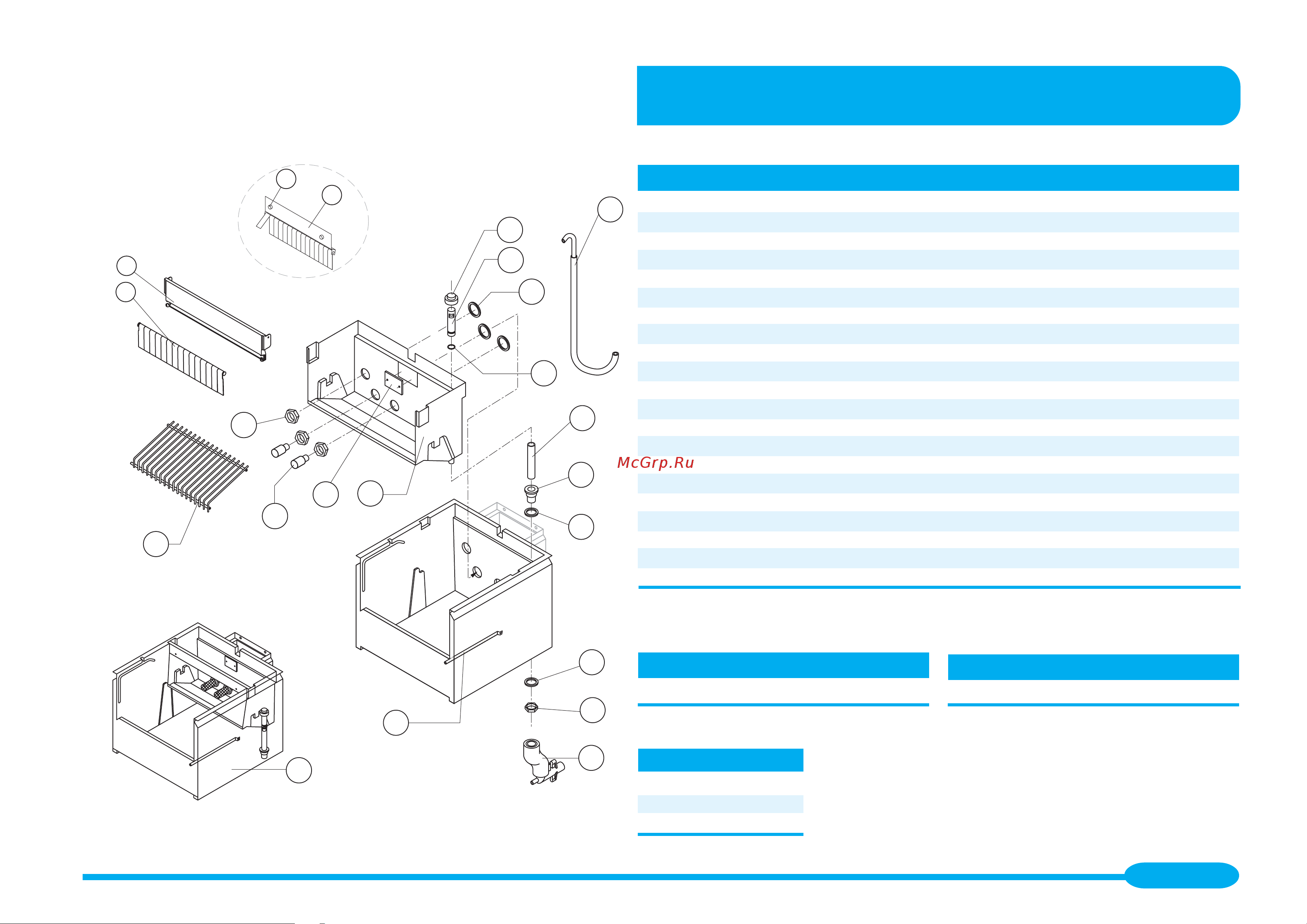

HYDRAULIC CIRCUIT

1

1

2

2

3

3

5

5

11

11

8

8

7

7

9

9

4

4

10

10

12

12

13

13

14

14

15

15

16

16

18

18

20

20

17

17

23

23

22

22

24

24

25

25

Ref. 20 - Ice Cubes Slide

17 g. (Standard) D12001

32 g. D12066

14 g. D12046

Kind of Cube Code

Ref.

Spare Description

Parts for Air-Cooled Version Only

17

Code

Discharges Manifold

C10366

Ref. Spare Description Code

1 Complete Basin Assembly C28205

2* Pump Suction Filter 20005

3 Nut for Basin Connections 10159

4 Slide Keep Plate 10009

5 Inner Basin E10158

7* Overflow Cap 10305

8* Overflow Pipe 10133

9 Silicone Seal for Pump Basin 13069

10* Water Supply Pipe to the Evaporator C13128

11* OR Gasket for Overflow Pipe 20233

12* Overflow Pipe 13106

13 Water Outlet Nipple 10472

14 Silicone Gasket 13219

15 Semirigid Polyethylene Gasket 13007

16 Bin Discharge Nut 10096

18 Bulbe-holder Pipe 20520

20 Ice Cubes Slide See Table

22 Special Screw Inox Till s/n. 379477 20009

23 Panel with Flags Till s/n. 379477 K10533

24 Flags ABS Support Current Version 10529

25 Rod with Flags Current Version 10533

Common Parts
