Rear I/O Panel

∙ Device Selection - allows you to select a audio output source to change the related

options. The check sign indicates the devices as default.

∙ Application Enhancement - the array of options will provide you a complete

guidance of anticipated sound effect for both output and input device.

∙ Main Volume - controls the volume or balance the right/left side of the speakers

that you plugged in front or rear panel by adjust the bar.

∙ Jack Status - depicts all render and capture devices currently connected with your

computer.

∙ Connector Settings - configures the connection settings.

Audio 7.1-channel Configuration

To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1

connector and follow the below steps.

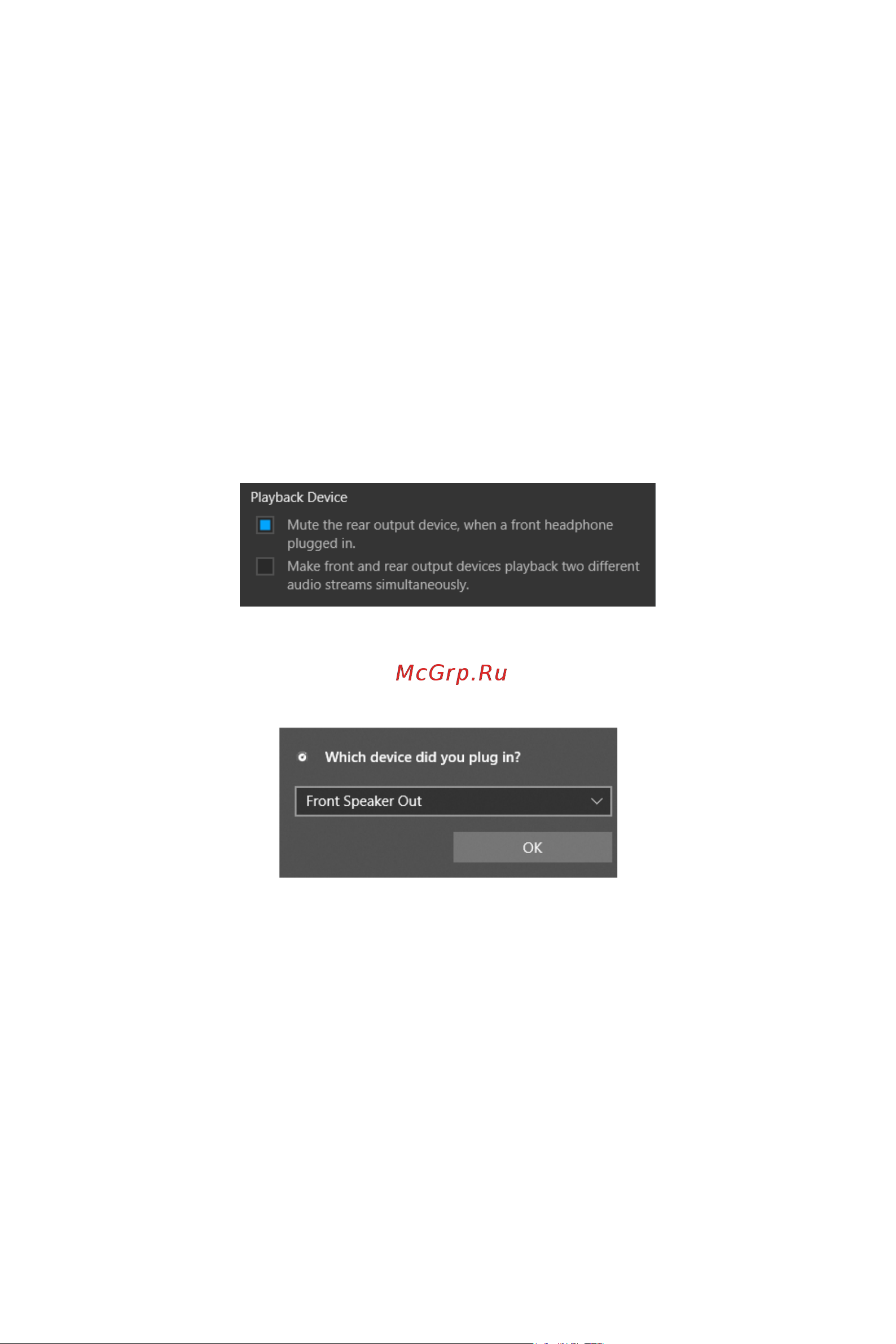

1. Click on the Realtek Audio Console > Device advanced settings to open the dialog

below.

2. Select Mute the rear output device, when a front headphone plugged in.

3. Plug your speakers to audio jacks on rear and front I/O panel. When you plug a

device into an audio jack, a dialogue window will pop up asking you which device is

current connected.

⚠

Important

The pictures above for reference only and may vary from the product you purchased.
