- 19 -
2-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.

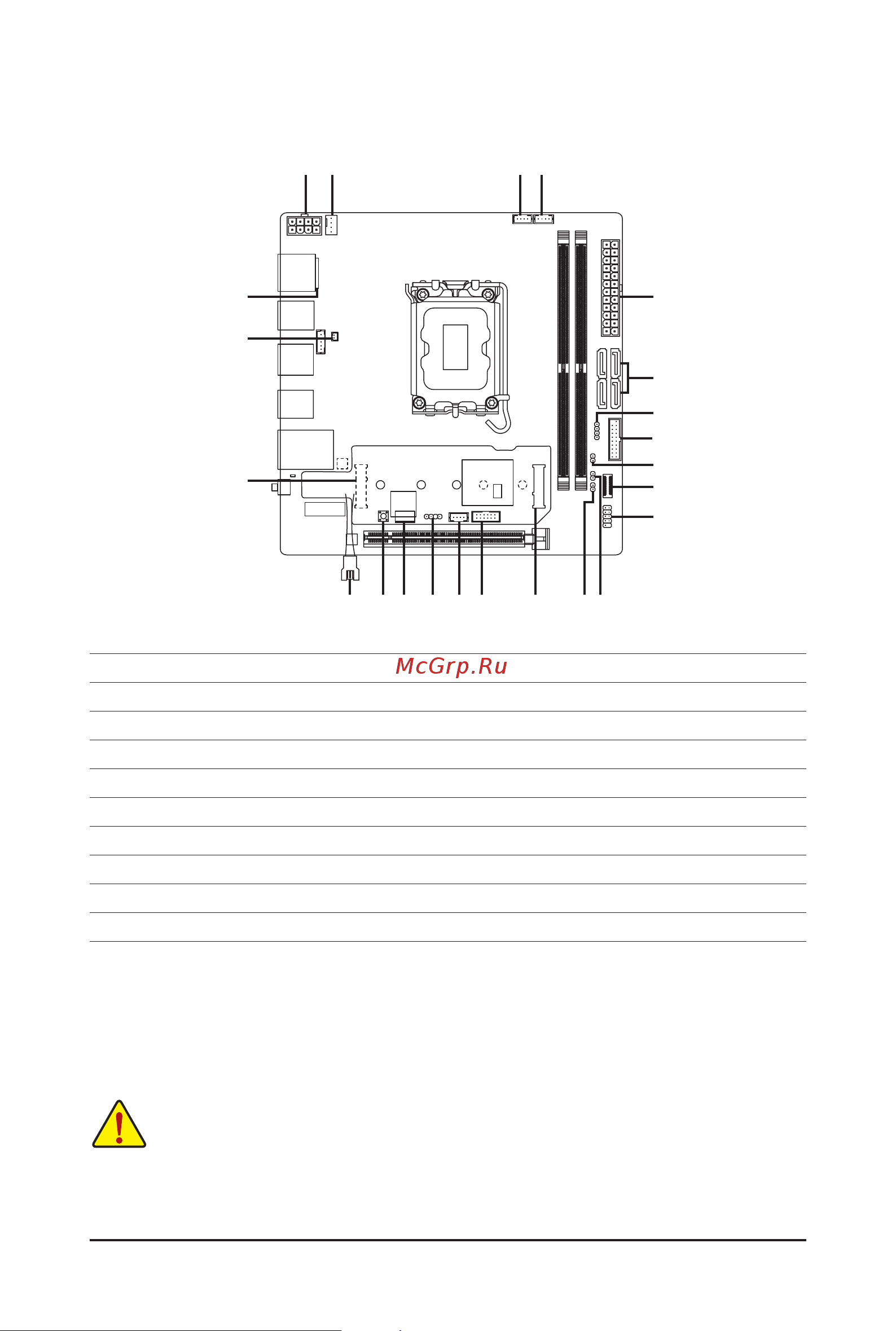

1) ATX_12V_2X4
2) ATX
3) EXT_PWR
(Note 1)
4) CPU_FAN
5) SYS_FAN1/SYS_FAN2
(Note1)
6) CPU_OPT
7) D_LED
(Note1)
8) LED_C
9) SATA3 0/1j, SATA3 0/1/2/3k
10) M2A_CPU
(Note 2)
/M2P_SB
(Note1)
11) F_PANEL
12) SPEAKER
13) F_U32C
14) F_U32
15) F_USB
(Note 1)
16) CLR_CMOS
17) BAT
18) RST_SW
(Note 1)
/RST
19) F_AUDIO
2
11
5
51
15 16
17
17
4 6
7
8
9
10
10
12
14
13
19 18 18
3
j Only for Z690I AORUS ULTRA.
k Only for Z690I A ULTRA DDR4.
(Note 1) The connector is on the front of GC-Z690I BTB PLUG.
(Note 2) The connector is on the back of GC-Z690I BTB PLUG.
