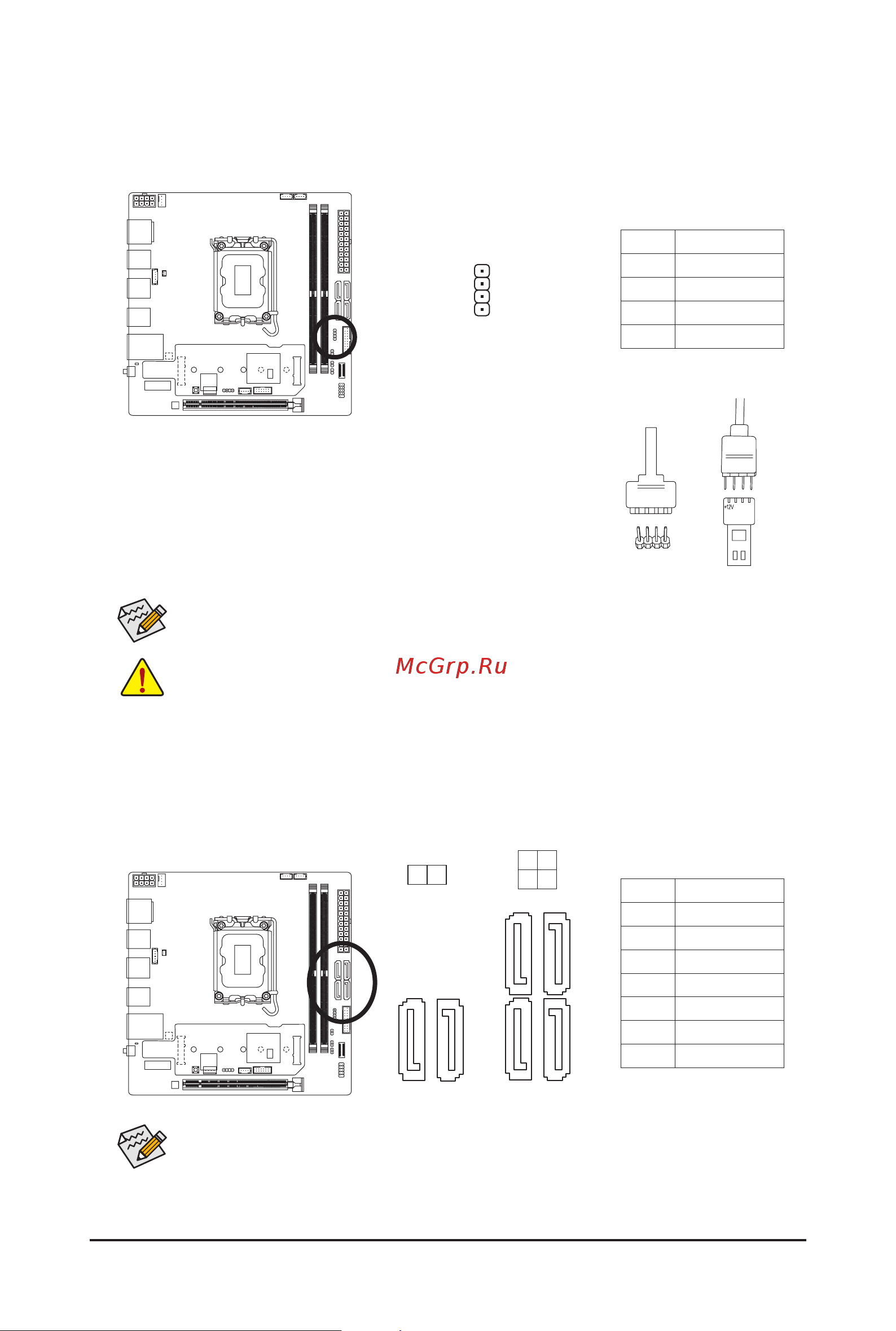

- 23 -
Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
For how to turn on/off the lights of the LED strip, please navigate to the "Unique Features" page
of GIGABYTE's website.
8) LED_C (RGB LED Strip Header)
The header can be used to connect a standard 5050 RGB LED strip (12V/G/R/B), with maximum power
rating of 2A (12V) and maximum length of 2m.
Connect one end of the RGB LED strip extension cable to the header and
the other end to your RGB LED strip. The black wire (marked with a triangle
on the plug) of the extension cable must be connected to Pin 1 (12V) of
this header. The 12V pin (marked with an arrow) on the other end of the
extension cable must be lined up with the 12V of the LED strip. Be careful
with the connection orientation of the LED strip; incorrect connection may
lead to the damage of the LED strip.
Pin No. Denition
1 12V
2 G
3 R
4 B
1
12VRGB
BG12VR
12V
1
RGB
LED
Strip
12VRGB
BG12VR
DEBUG
PORT
G.QBOFM
9) SATA3 0/1j, SATA3 0/1/2/3k (SATA 6Gb/s Connectors)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device. The Intel
®
Chipset supports RAID 0,
RAID 1, RAID 5k, and RAID 10k. Please navigate to the "Conguring a RAID Set" page of GIGABYTE's
website for instructions on conguring a RAID array.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
To enable hot-plugging for the SATA ports, please visit the "BIOS Setup," "SATA And RST
Conguration," webpage of GIGABYTE's website for more information.
j Only for Z690I AORUS ULTRA.
k Only for Z690I A ULTRA DDR4.
SATA3k
3 1
2 0
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
1 7
7 1
SATA3j
1 0
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
1 7
7 1
