Инструкция по эксплуатации Страница: 4

Gigabyte B660M AORUS ELITE DDR4 [4/38] B660m aorus elite ax ddr4

- 4 -

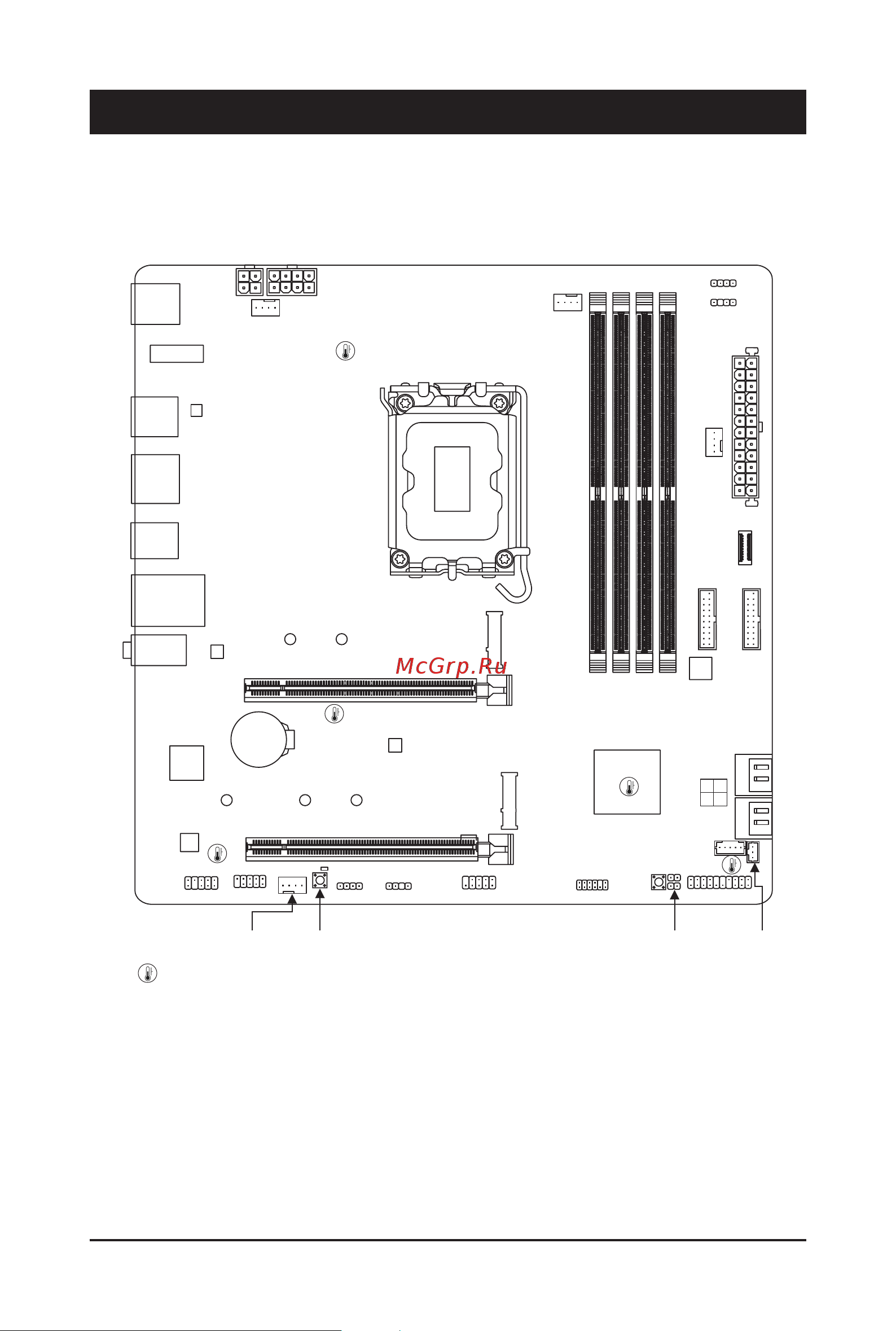

1-1 Motherboard Layout

Chapter 1 Product Introduction

Temperature sensor

j Only for B660M AORUS ELITE AX DDR4.

USB_1

CPU_FAN

SYS_FAN1

LGA1700

ATX

B660M AORUS ELITE AX DDR4/

B660M AORUS ELITE DDR4

F_AUDIO COM

LED_C1

AUDIO

BAT

ATX_12V_2X4

Intel

B660

U32G2C

U32G2

CODEC

CLR_CMOS

M_BIOS

U32_LAN

PCIEX16

PCIEX4

iTE

Super I/O

F_USB1

F_PANEL

SPI_TPM

F_U32_2

DDR4_A2

DDR4_A1

M2A_CPU

7 6

5 4

SATA3

DP_HDMI 20

DDR4_B2

DDR4_B1

ATX_12V_2X2

M2_WIFIj

USB 2.0 Hub

USB 3.2

Gen 1 Hub

F_U32_1

F_U32C

SYS_FAN3

D_LED2

LED_C2

RST_SW

RST

THB_C1

THB_C2

D_LED1

QFLASH_PLUS

QFLED

SYS_FAN2

Realtek

2.5GbE LAN

USB_2

M2P_SB

110
