PS/2 Keyboard and PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200@60 Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports D-Sub

connection to this port.

DVI-D Port

(Note)

The DVI-D port conforms to the DVI-D specication and supports a maximum resolution of 1920x1200@60

Hz (the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

DVI-D connection to this port.

DisplayPort

DisplayPort delivers high quality digital imaging and audio, supporting bi-directional audio transmission.

DisplayPort can support HDCP 2.3 content protection mechanisms. You can use this port to connect your

DisplayPort-supported monitor. Note: The DisplayPort Technology can support a maximum resolution of

4096x2304@60 Hz but the actual resolutions supported depend on the monitor being used.

HDMI Port

The HDMI port is HDCP 2.3 compliant and supports Dolby TrueHD and DTS

HD Master Audio formats. It also supports up to 192KHz/24bit 7.1-channel

LPCM audio output. You can use this port to connect your HDMI-supported monitor. The maximum

supported resolution is 4096x2160@60 Hz, but the actual resolutions supported are dependent on the

monitor being used.

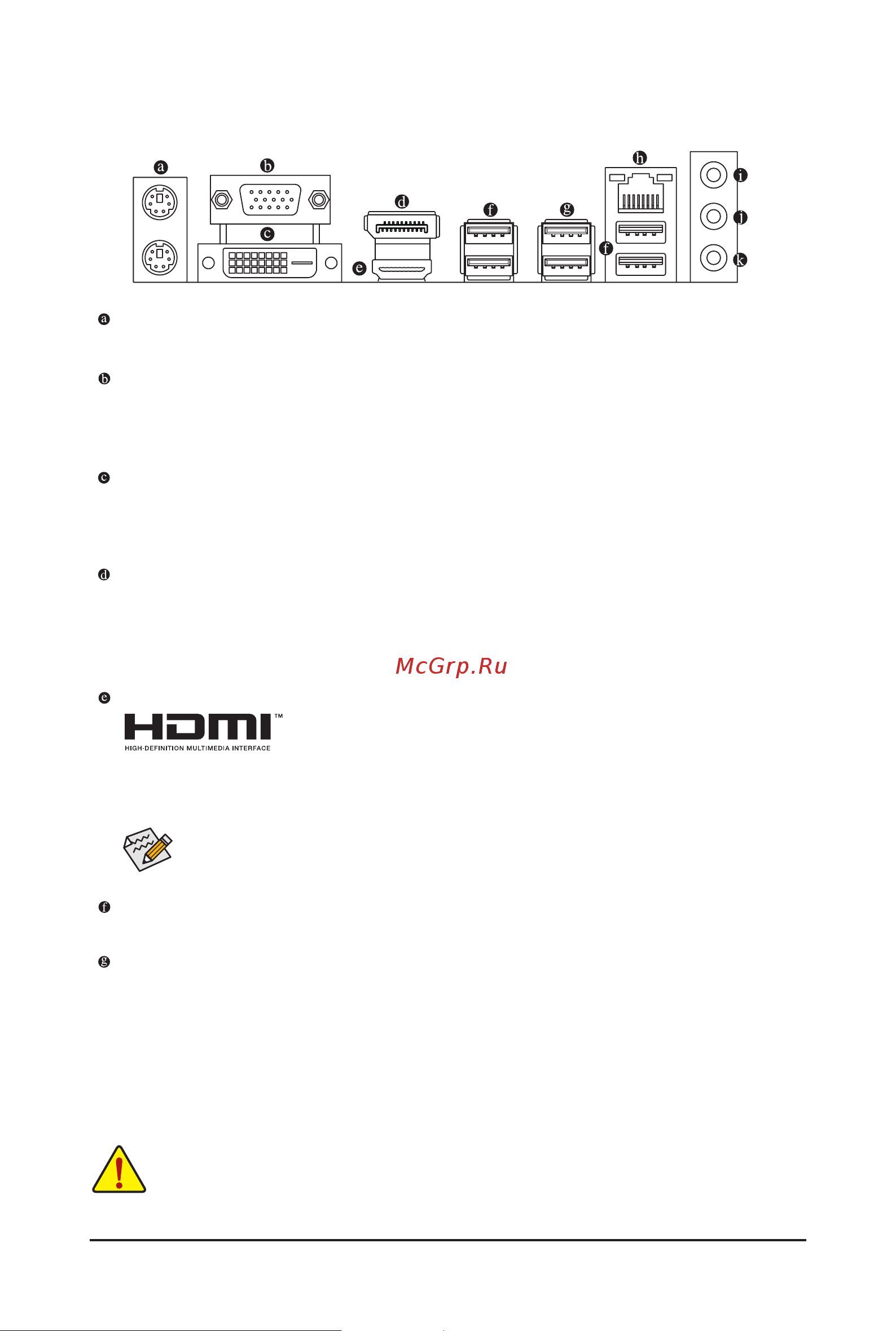

2-6 Back Panel Connectors

After installing the DisplayPort/HDMI device, make sure to set the default sound playback device

to DisplayPort/HDMI. (The item name may differ depending on your operating system.)

• When removing the cable connected to a back panel connector, rst remove the cable from your

device and then remove it from the motherboard.

• When removing the cable, pull it straight out from the connector. Do not rock it side to side to

prevent an electrical short inside the cable connector.

(Note) The DVI-D port does not support D-Sub connection by adapter.

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices.

USB 3.2 Gen 1 Port

The USB 3.2 Gen 1 port supports the USB 3.2 Gen 1 specication and is compatible to the USB 2.0

specication. Use this port for USB devices.
