2-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.

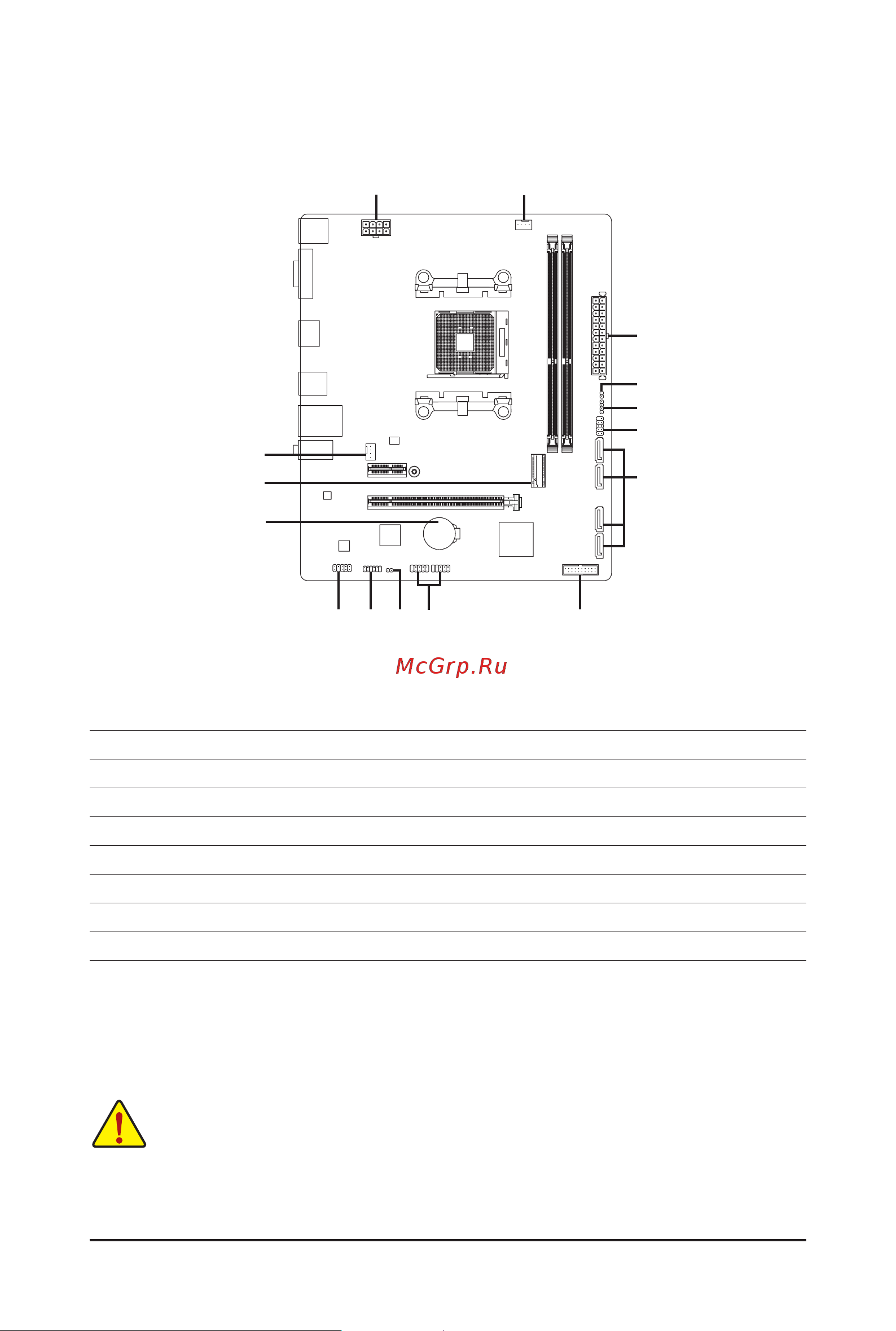

1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN1
5) SATA3 0/1/2/3
6) M2A_CPU
7) F_PANEL
8) F_AUDIO
9) SPEAKER
10) F_U32
11) F_USB1/F_USB2
12) TPM
13) BAT
14) CI
15) CLR_CMOS
1
2
7
9
15
3
10
13
11
8
12
6
4
5
14
