Asus PRIME Z790M-PLUS D4 [31/66] Tb_header

PRIME Z790M-PLUS D4

1-21

Chapter 1

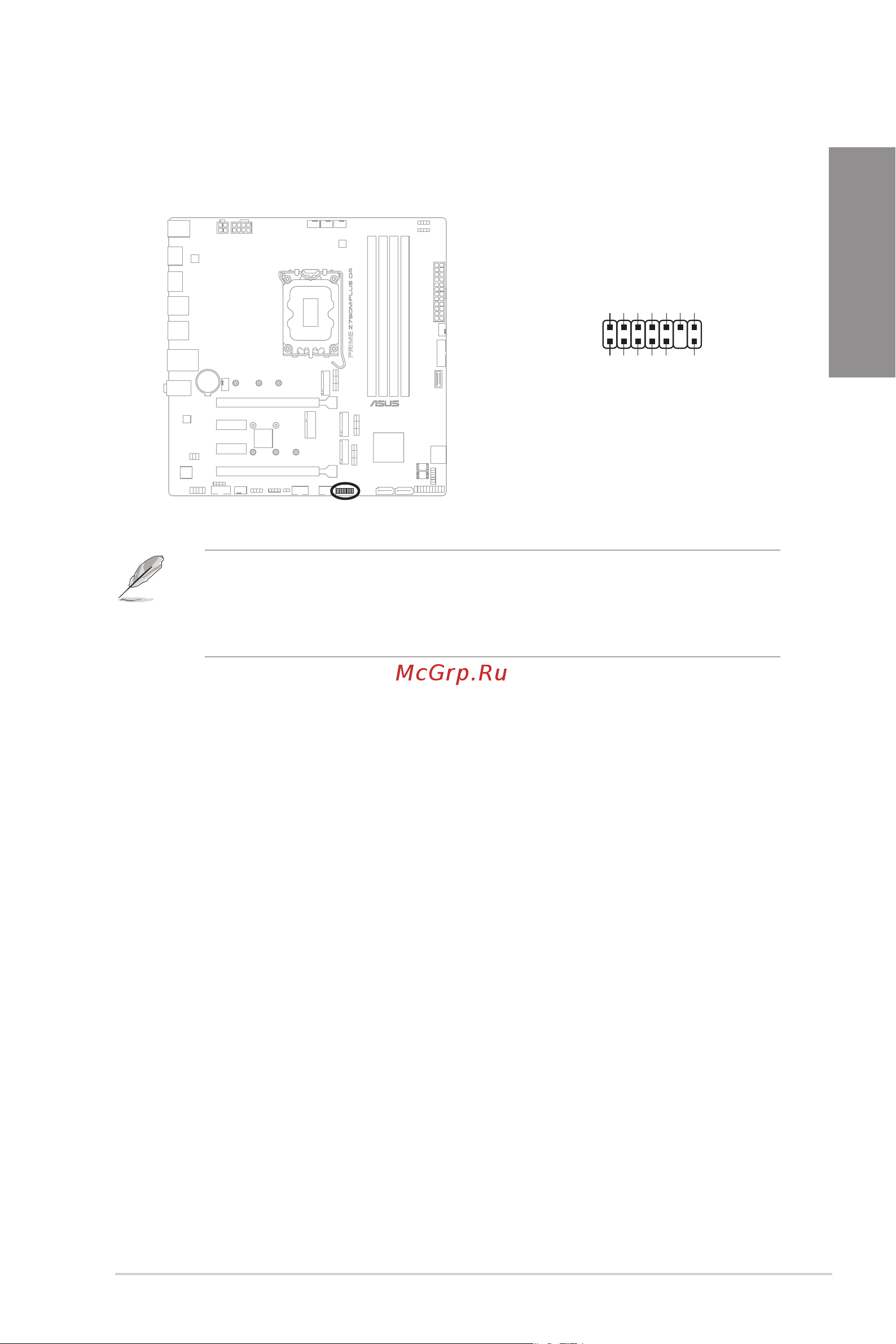

20. Thunderbolt™ (USB4

) header

The Thunderbolt™ (USB4

) header allows you to connect an add-on Thunderbolt™

I/O card that supports Intel®’s Thunderbolt™ Technology, allowing you to connect

Thunderbolt™-enabled devices to form a daisy chain-configuration.

PIN 1

FORCE_PWR

TB_CIO_PLUG_EVENT

SLP_S3#

SLP_S5#

GND

RTD3_SW

I2C_SCL

I2C_SDA

I2C_IRQ#

RTD3_POWER_EN

PERST_N

WAKE#

TB_HEADER

• The add-on Thunderbolt™ I/O card and Thunderbolt™ cables are purchased

separately.

• Please visit the official website of your purchased Thunderbolt™ card for more details

on compatibility.
